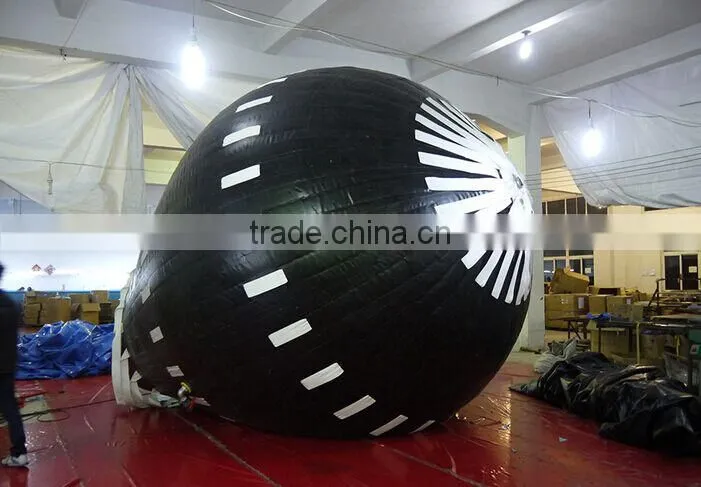

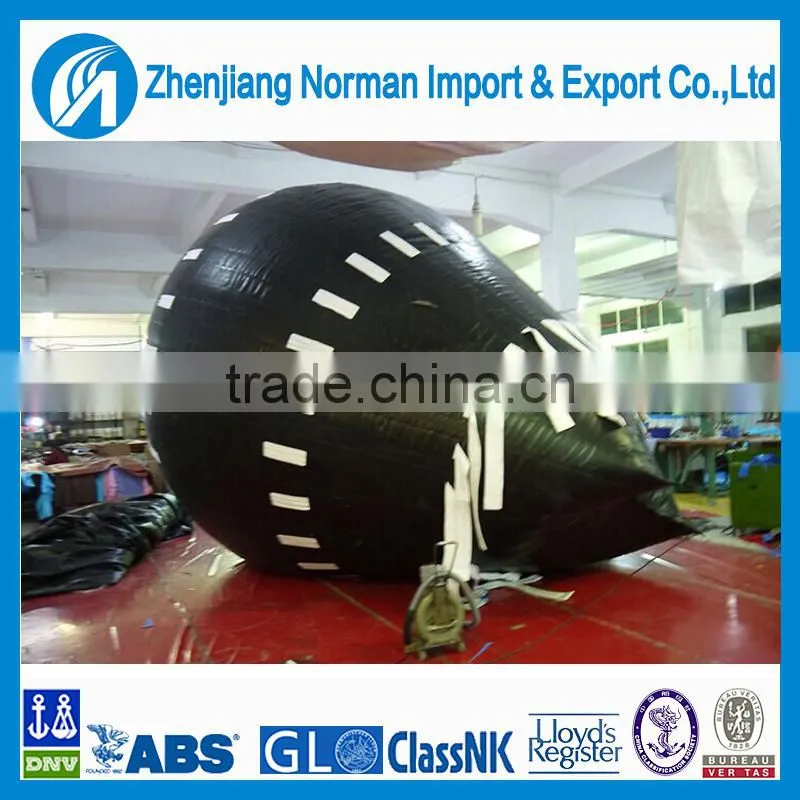

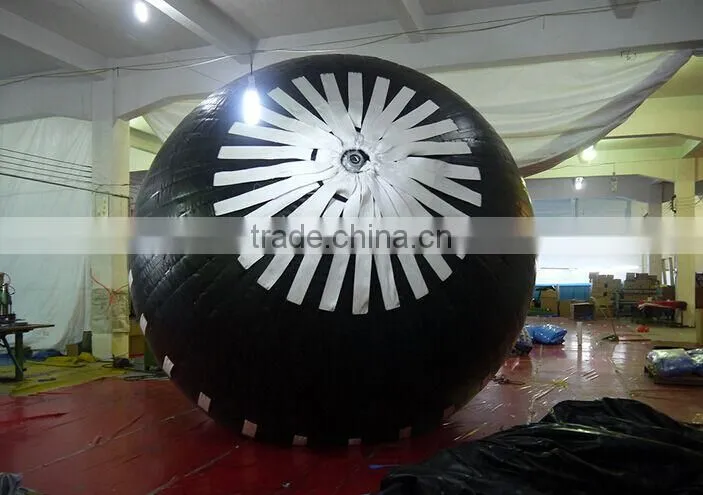

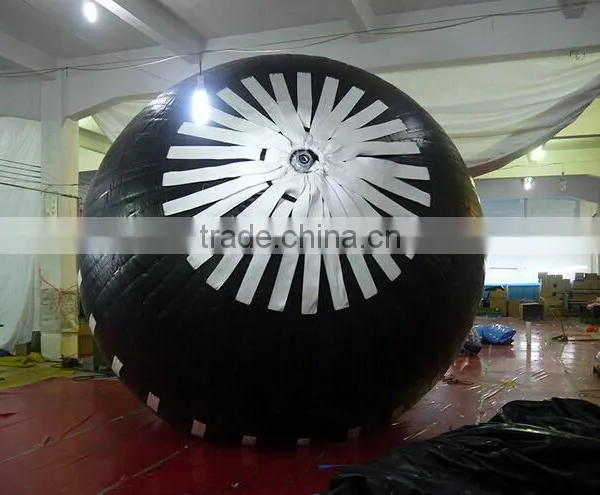

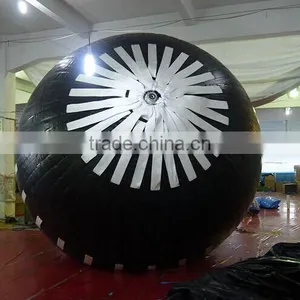

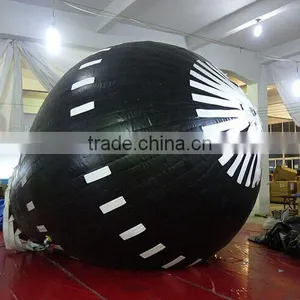

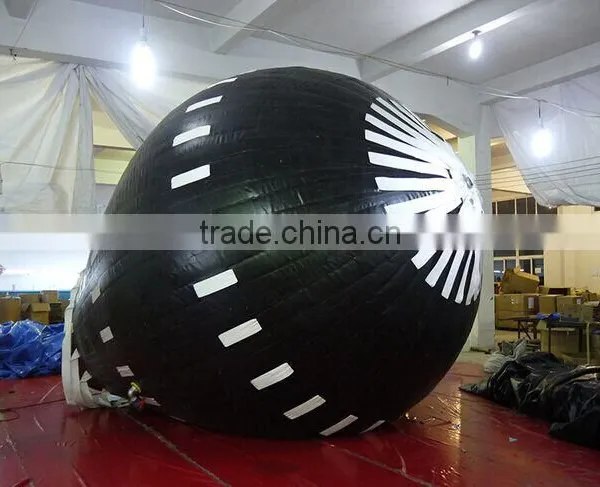

50T Crane &Davit Load Test Water Weight Bags
Water filled weight bags are used for the proof load testing for the crane, davits, derricks, hoist and other lifting equipment.
Crane &Davit Load Test Water Weight Bags is designed for the proof loading test for the lifting equipments and structures that request proof load test when it's newly finished, or periodic check or maintenance, such as cranes, beams, davits, winches, hoists, drilling derricks, bridge, platforms, walkways, and so on in marine, offshore, workshop, port, vessels, and other industry sector. This water filled weight bags provide one kind innovative testing solution with the advantages of Safety, Economy, Convenience, High Efficiency.
Crane &Davit Load Test Water Weight Bag are made from heavy duty fabrics, equipped with all necessary fill/drain hose and valves,Master Links, load shackles and riggings, lifting belts, and incorporating with some innovative design. Water pumps, water meters, manifolds, load cell and its shackles, rigging hardware, lifting beams also can be supplied upon request.
Features and Advantages of Load Test Water Bags:
- Made from heavy duty UV resistance PVC coated fabrics
- Heavy duty webbing harness terminates with single steel lifting ring
- Easy to handle and operate to enhance the work efficiency
- Complete with all accessories and fill/drain valves, quick couplings
- 6:1 safety factor verified for type test
- Multi size are available for unlimited variants of test weight
- Delivery ready for use
-Specification:
Model |
Capacity |
Volum e(m3) |
Height |
Max. diameter |
Weight |
Packing size (m3) |
Material: PVC |
WB/FW-0.25 |
250kg |
0.25 |
1.2 |
0.8 |
8kg |
0.6*0.6*0.5 |
1300g |
WB/FW -0.5 |
500kg |
0.5 |
1.5 |
1 |
10kg |
1300g |
|
WB/FW -1 |
1000kg |
1 |
1.8 |
1.2 |
19kg |
1300g |
|
WB/FW -2 |
2000kg |
2 |
2.3 |
1.5 |
22kg |
1300g |
|
WB/FW -3 |
3000kg |
3 |
2.7 |
1.8 |
28kg |
1300g |
|
WB/FW -4 |
4000kg |
4 |
2.9 |
1.9 |
52kg |
0.7*0.8*0.6 |
1300g |
WB/FW -5 |
5000kg |
5 |
3.3 |
2.3 |
67kg |
1300g |
|
WB/FW -6 |
6000kg |
6 |
3.4 |
2.4 |
84kg |
1300g |
|
WB/FW -8 |
8000kg |
8 |
3.6 |
2.5 |
104kg |
1300g |
WB/FW -10 |
10000kg |
10 |
3.9 |
2.7 |
108kg |
1.02*1.02*
0.7 |
1300g |
WB/FW -13 |
13000kg |
13 |
4.2 |
2.9 |
150kg |
1300g |
|
WB/FW-15 |
15000kg |
15 |
4.4 |
3 |
150kg |
1300g |
|
WB/FW-20 |
20000kg |
20 |
6 |
3.5 |
156kg |
1.2*1.2*1 |
1300g |
WB/FW-25 |
25000kg |
25 |
6.1 |
3.9 |
190kg |
1300g/1580g |
|
WB/FW-30 |
30000kg |
30 |
6.5 |
4.1 |
220kg |
1.4*1.2*1 |
1580g |
WB/FW-35 |
35000kg |
35 |
6.8 |
4.3 |
240kg |
1580g |
|
WB/FW-40 |
40000kg |
40 |
7.4 |
4.5 |
260kg |
1580g |
|
WB/FW-45 |
45000kg |
45 |
7.5 |
4.7 |
290kg |
1.8*1.2*1 |
1580g |
WB/FW-50 |
50000kg |
50 |
7.7 |
5.1 |
340kg |
1580g |
