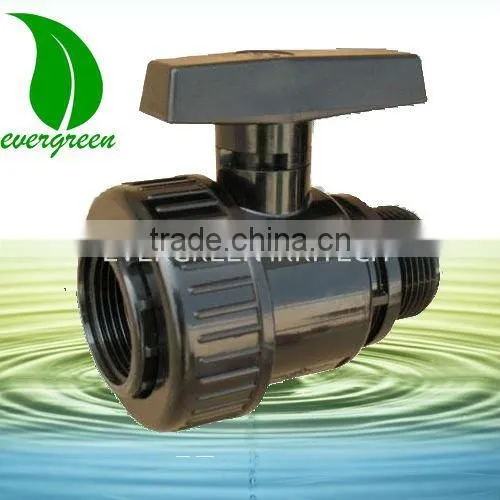

PVC Male Union Ball Valve Irrigation Valve
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Material | Plastic | Technics | Other, Injection | |
| Type | Other, valve | Place of Origin | Zhejiang, China | |
| Model Number | 9002M | Brand Name | Female union valve | |
| Connection | Male | Shape | Equal | |
| Head Code | Square |
Product Description
PVC Male union valve
1.Item NO.: | 9002M |
2.Main Material: | PVC |
3.Product Size: | 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3", 4" |
4.End Connector: | Socket, thread |
5.Working Pressure: | PN16-10 |
6.Working Mediums: | Water |
7. Body Color: | As clients’ request |
8.Standard | ANSI,BS,DIN,JIS/ NPT,BSPT |
Product Features:
1) Healthy and non-toxic, bacteriological neutral.
2) Resistant to high temperature, good impact strength.
3) Excellent heat-insulation property from minimum thermal conductivity
5) Light weight, convenient to transport and handle, good for labor-saving
6) Smooth inner walls reduce pressure loss and increase flow speed
7) Light colors and excellent design ensure suitability for both exposed

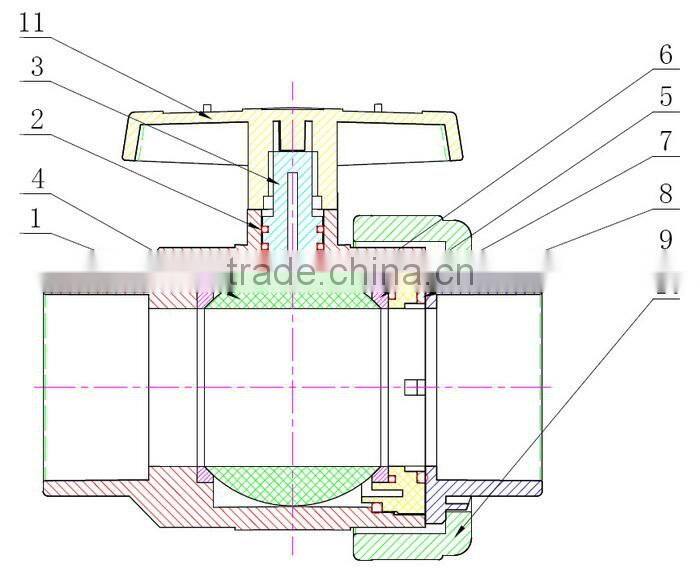

Structure Chart & Technical Specification:
| NO. | PART | MATERIAL | Q'TY | |
| 1 | Body | PVC | 1 | |
| 2 | Stem O-Ring | EPDM, FPM | 2 | |
| 3 | Stem | PVC | 1 | |
| 4 | Ball | PVC | 1 | |
| 5 | Seat Seal | TPE, PTFE | 2 | |
| 6 | Carrier O-Ring | EPDM, FPM | 1 | |
| 7 | Seal Carrier | PVC | 1 | |
| 8 | Union O-Ring | EPDM, FPM | 2 | |
| 9 | End Connector | PVC | 1 | |
| 10 | Union Nut | PVC | 1 | |
| 11 | Handle | PP, ABS | 1 | |

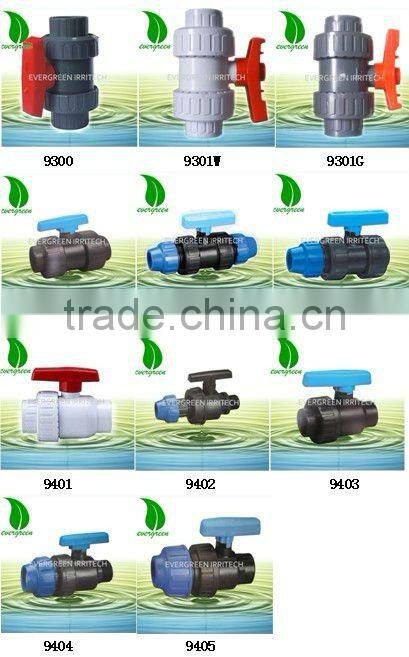

Product Picture:
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Service Advantage:
1. 10 years manufacturing and exporting experience in agriculture field.
2. Professional technical support and solution by Chief Engineer.
3. Strict quality control system & team, high reputation in the market.
4. Quick, efficient and professional response within 24 hours, 14 hours online services.
5. Multilingual communication services (English, Spanish, French, Portuguese, Japanese etc.)
6. Full range of irrigation products for choice.
7. Accept sample order before Mass Order.
8. OEM/ODM services.
