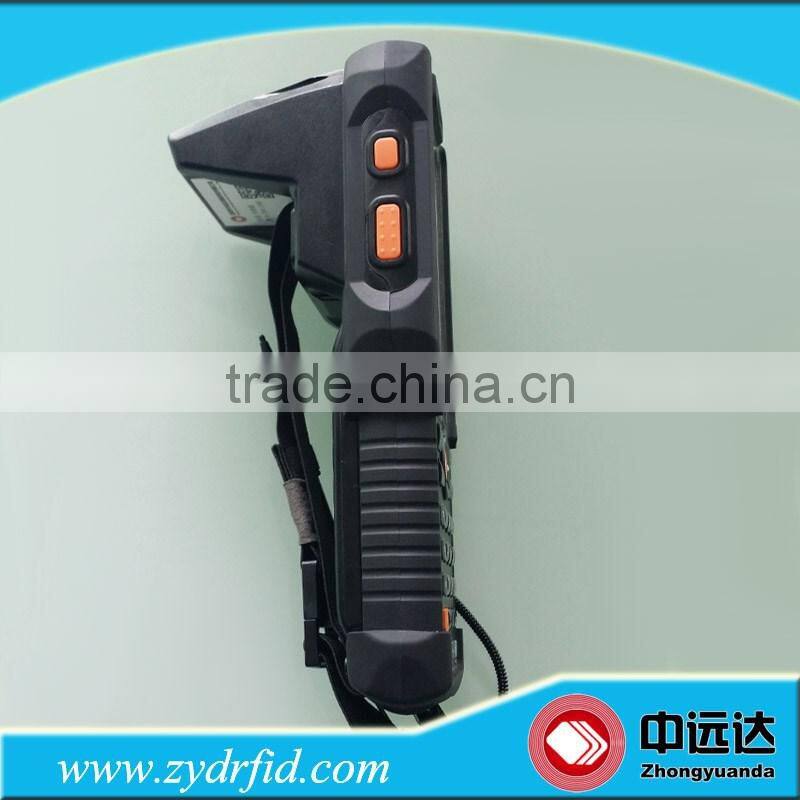

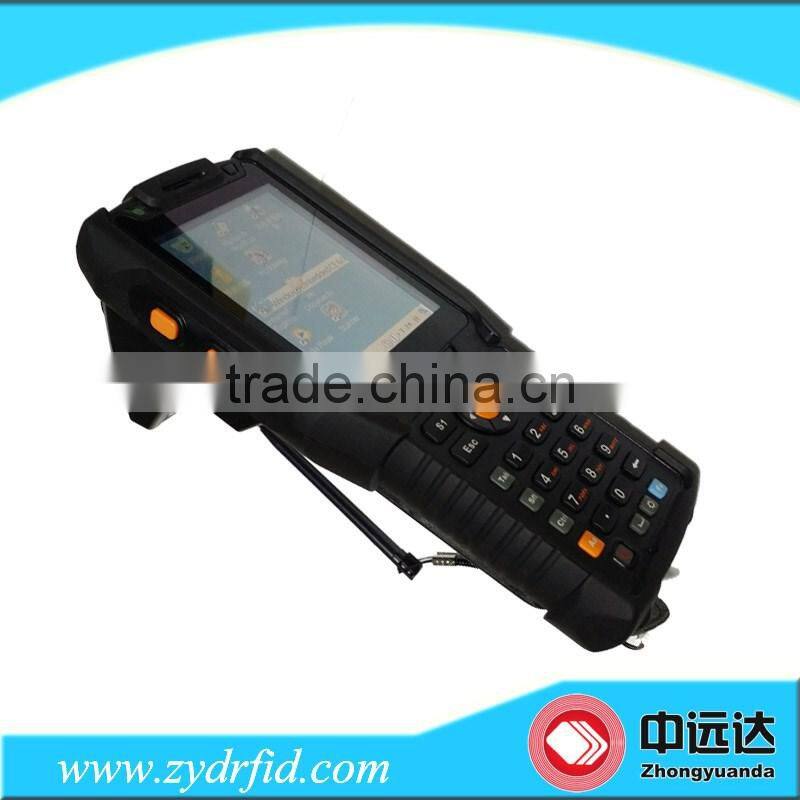

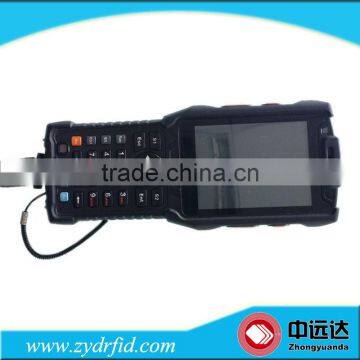

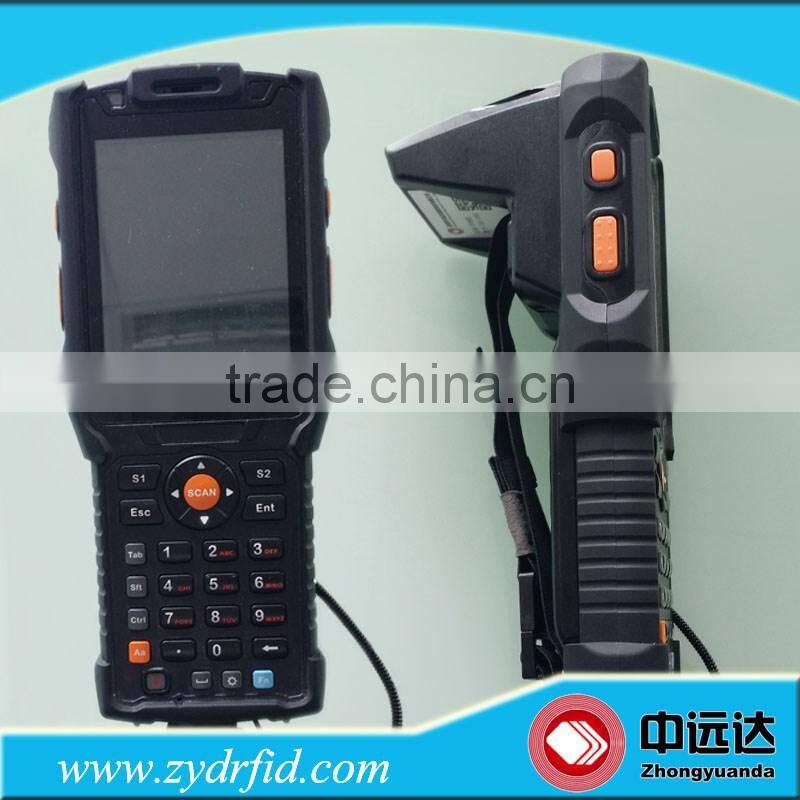

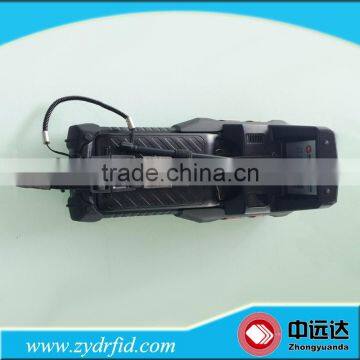

Dual-band rfid reader handheld reader
Zhongyuanda provides many kinds of different rfid wristbands for different applications.
Like
RFID reader, nfc reader, handheld reader,1D/2D reader
| General Specifications | |
| Operation System | Google Android 5.1.1 |
| CPU | Qualcomm 8909, 1.2Ghz, Quad Core |
| Memory | 1GB RAM, 8GB ROM |
| Extension Storage | T-Flash/Micro SD Card, up to 32GB |
| Networks | WCDMA 850/2100Mhz |
| CDMA 800Mhz | |
| GSM 850/900/1800/1900Mhz | |
| 4G LTE | |
| Display | 4.3” HD LCD, Capacitive Touch Screen, Resolution 800*480 |
| Camera | Front 2.0M and Rear 8.0M Pixels, Auto Focus with Flash |
| Wireless Communication | |
| GPS | Integrated, 10m |
| WiFi | IEEE 802.11b/g/n |
| Bluetooth | BT 4.0 with A2DP |
| Optional Parts | |
| UHF RFID | ISO 18000-6C, 0-2m |
| NFC Scanner | Supported |
| Contact IC Card | Compatible with ISO 7816-3 and EMV 4.2 |
| Contactless IC Card | ISO/IEC 14443 Type A/B |
| Fingerprint Reader | Capacitive Sensor, 508 DPI |
| Barcode Scanner (1D) | UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes |
| Barcode Scanner (2D) | PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
| Physical Layer Parameter | |
| Dimensions | 156.8*79.5*22.2mm |
| PSAM | 2 slots |
| Battery | 3.7V, 3000mAh |
| USB | Mini-USB 10pin |
| Charger | DC 5.5V 1.2A |
| Headphone | Supported, 3.5mm |
| Speaker | supported |
| Ruggedness | IP65, waterproof, dustproof, shockproof |
| Reliability | MTBF no less than 10000 hours |
| Temperature | -20℃~+70℃ |
Packaging:
Q-ty: 100pcs/box, 1500pcs/carton
Box size: 515mm*255mm*350mm
Weight: 15kg
P.S. packaging as customized.
Shipment as customized
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, Aria air post.
You can also choose your own shipping forwarder.
1) 50% advance payment, 50% before shipping for big order.
2) 100% advance payment for small order.
3) Payment method: Paypal, bank transfer, western union,Escrow, etc.
Shenzhen Zhongyuanda Smartech Co., Ltd. is a professional manufacturer who produce RFID products and offer solutions. our main products are RFID tags ( include dry/wet inlay, paper coated rfid tag/label/sticker, nfc sticker, fragile labels, anti-metal tag, tamper tag, laundry tag, etc.), RFID smart cards (ID / IC smart cards, Epoxy card, rfid token, rfid pvc cards, nfc card).
Our company is the one of the earliest professional rfid technology company who provide RFID tag, reader and soft sysetm for you to help enterpries solve their problems and improve management effectiveness and efficiency.
We have our D&R team, we can develop the antenna for you, welcome to inform us your needs and custom your personalized rfid tag. we will offer you best solution.
Our Advantages
1) We are manufacturer provide competitive price products with strick FQA( final quality assurance).
2) Various customized design(Material, color, size, logo, pattern) upon your request.
3) All raw material comply with normal US standard and European Standard.
4) Quick response and fast delivery.
5) Reliable quality, competitive price, considerate service, perfect after service.
6) Best promotional gifts for choice for office, exhibition, tradeshow, office, school or promotional events.
7) One year products warranty after delivery.
8) Sample test asking is available.
