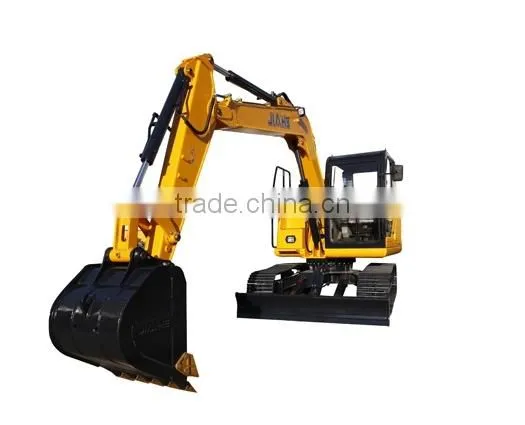

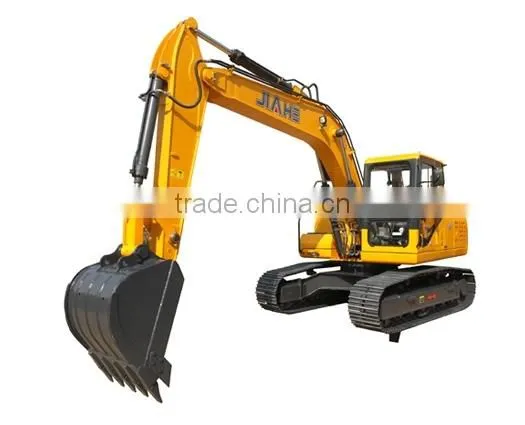

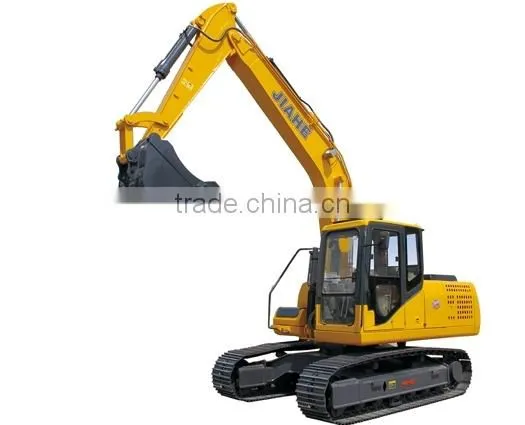

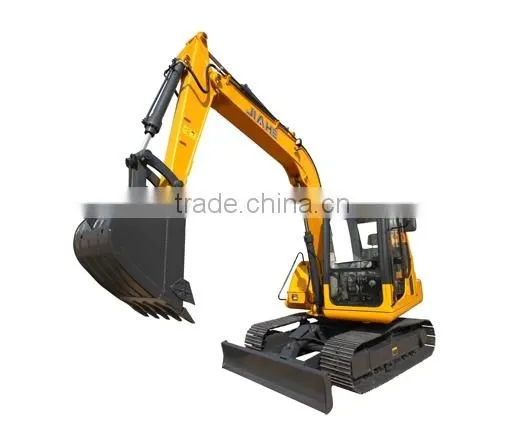

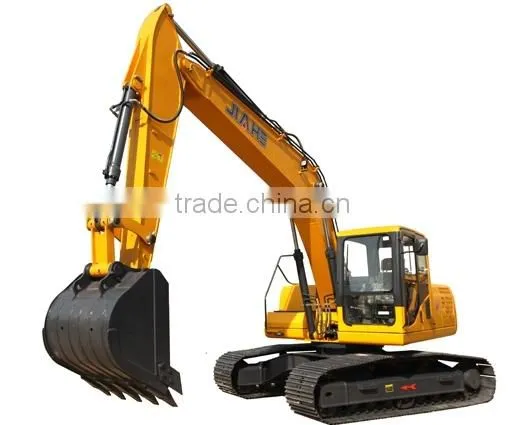

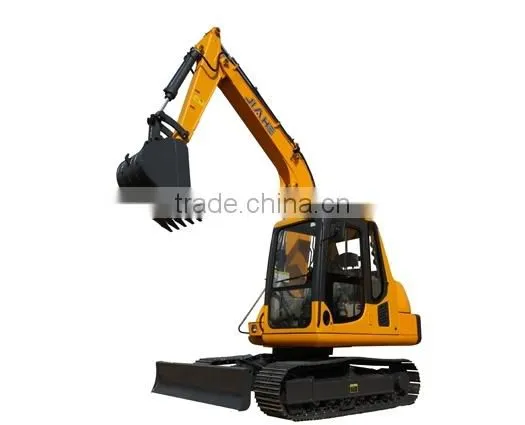

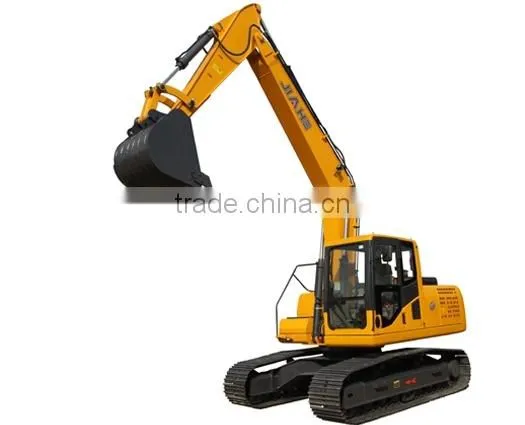

Crawler Hudraulic Excavator JH180

Name: Crawler Hudraulic Excavator JH180
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Place of Origin:	Shandong, China	Condition:	New	Moving Type:	Crawler Excavator
Bucket capacity:	0.06-0.08m3	Maximum Digging Height:	9430mm	Maximum Digging Depth:	5975mm
Machine Weight:	1800-18000kgs	Max Digging Radius:	8985mm	Rated Speed:	2200r/min
Certification:	CE ISO	After-sales Service Provided:	Engineers available to service machinery overseas

JH22 Crawler Hudraulic Excavator

Specifications
Standard Bucket Capacity(m3)		0.1
Swing Speed(rpm)		0-12
Max.Grade Ability(°)		30°
Max.Bucket Digging Forc(kN)		13.3
Max.Arm Digging Force(kN)		9.3
Engine Model		KM385B
Rated Power Output/Revolution(kw/rpm)		20/2200
Max.Diesel Tank Capacity(L)		55
Set Pressure of Hydraulic Pump(MPa)		16

Working range
MAX digging height(mm)		3650
MAX dumping height(mm)		2265
MAX digging depth(mm)		2500
MAX digging radius(mm)		4130
MAX swing radius(mm)		1320
MAX dozer lifting height(mm)		207
MAX dozer cutting depth(mm)		190

JH60 Crawler Hudraulic Excavator

Specifications
Standard Bucket Capacity(m3)		0.22
Swing Speed(rpm)		9.5
Max.Grade Ability(°)		35°
Max.Bucket Digging Forc(kN)		34.8
Max.Arm Digging Force(kN)		36.5
Engine Model		A498BG
Rated Power Output/Revolution(kw/rpm)		40/2200
Max.Diesel Tank Capacity(L)		107
Set Pressure of Hydraulic Pump(MPa)		22

Working range
MAX digging height(mm)		5736
MAX dumping height(mm)		4036
MAX digging depth(mm)		3718
MAX digging radius(mm)		6115
MAX swing radius(mm)		2008
MAX dozer lifting height(mm)		376
MAX dozer cutting depth(mm)		474

JH75 Crawler Hudraulic Excavator

Specifications
Standard Bucket Capacity(m3)		0.35
Swing Speed(rpm)		0-12
Max.Grade Ability(°)		30°
Max.Bucket Digging Forc(kN)		42
Max.Arm Digging Force(kN)		36.5
Engine Model		YC4F60
Rated Power Output/Revolution(kw/rpm)		43/2200
Max.Diesel Tank Capacity(L)		130
Set Pressure of Hydraulic Pump(MPa)		26

Working range
MAX digging height(mm)		5874
MAX dumping height(mm)		4295
MAX digging depth(mm)		3632
MAX digging radius(mm)		5980
MAX swing radius(mm)		1840
MAX dozer lifting height(mm)		386
MAX dozer cutting depth(mm)		264

JH90 Crawler Hudraulic Excavator

Specifications
Standard Bucket Capacity(m3)		0.4
Swing Speed(rpm)		0-12
Max.Grade Ability(°)		35°
Max.Bucket Digging Forc(kN)		55
Max.Arm Digging Force(kN)		40
Engine Model		B3.3
Rated Power Output/Revolution(kw/rpm)		60/2200
Max.Diesel Tank Capacity(L)		115
Set Pressure of Hydraulic Pump(MPa)		28

Working range
MAX digging height(mm)		7050
MAX dumping height(mm)		5188
MAX digging depth(mm)		4015
MAX digging radius(mm)		6540
MAX swing radius(mm)		2140
MAX dozer lifting height(mm)		320
MAX dozer cutting depth(mm)		415

JH135 Crawler Hudraulic Excavator

Specifications
Standard Bucket Capacity(m3)		0.6
Swing Speed(rpm)		12
Max.Grade Ability(°)		30°
Max.Bucket Digging Forc(kN)		91
Max.Arm Digging Force(kN)		60
Engine Model		YC4A115Z
Rated Power Output/Revolution(kw/rpm)		85/2200
Max.Diesel Tank Capacity(L)		252
Set Pressure of Hydraulic Pump(MPa)		32

Working range
MAX digging height(mm)		8540
MAX dumping height(mm)		6125
MAX digging depth(mm)		5520
MAX digging radius(mm)		8000
MAX swing radius(mm)		2445
MAX dozer lifting height(mm)
MAX dozer cutting depth(mm)

JH180 Crawler Hudraulic Excavator

Specifications
Standard Bucket Capacity(m3)		0.8
Swing Speed(rpm)		0-12
Max.Grade Ability(°)		30°
Max.Bucket Digging Forc(kN)		98
Max.Arm Digging Force(kN)		68
Engine Model		YC6B160Z
Rated Power Output/Revolution(kw/rpm)		110/2200
Max.Diesel Tank Capacity(L)		315
Set Pressure of Hydraulic Pump(MPa)		34

Working range
MAX digging height(mm)		9430
MAX dumping height(mm)		6960
MAX digging depth(mm)		5975
MAX digging radius(mm)		8985
MAX swing radius(mm)		2725
MAX dozer lifting height(mm)
MAX dozer cutting depth(mm)
