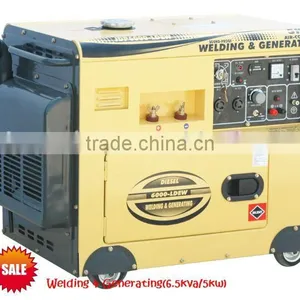

Welding & Generating(6.5kva/5kw)-portable/silent/open Type

Name: Welding & Generating(6.5kva/5kw)-portable/silent/open Type
Brand: JDP or OEM
SKU: 138977859
Availability: InStock

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

JDP or OEM

Model Number:

JDP6000LHEW/JDP6000LDEW

Suzhou Jinding Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JDP or OEM

Model Number JDP6000LHEW/JDP6000LDEW

Output Type AC Single Phase

Speed 3000/3600RPM

Frequency 50/60HZ

Rated Voltage 110/220/230/240

Specifications

Welding & Generating with EPA certified powered by 186FA(E) engine,silent/open type, rated power 5kva.

SUZHOU JINDING MACHINERY MANUFACTURING CO.,LTD

Specifications:

Model		JDP6000-LH(E)W		JDP6000-LD(E)W
Generator	Type	Revolving Magnetic Field,2 pole,Self-Excitating,Single Phase
	voltage regulation	AVR
	Frequency(Hz)	50	60	50	60
	Max.AC Output(KVA)	5	5.5	5	5.5
	Rated AC Voltage(V)	220
	Rated AC Output(KVA)	4.8	5	4.8	5
	Power Factor(cosφ)	1
Welding	Current in Welding(A)	160
	Continuous Load Rate	40%
	Welding Current Adjustment Range(A)	5-180
Engine	Model	JDP186FA(E)
	Type	Direct injection,Single-cylinder,Vertical,4-cycle,Air-cooled
	Displacement(cm3)	418
	Max.Output(HP)	10
	Fuel	Light Diesel Fuel
	Fuel Tank Capacity(L)	15		16
	Oil	SAE
	Oil Capacity(L)	1.65
	Starting System	Recoil/Electric Starting with Battery
	Noise Level(7m)(dB)	85		70
Standard Features	Fuel Gauge	√
	Voltmeter	√
	AC Circuit Breaker	√
	Engine Switch	√
	handle&sheels	√
	Low Oil Pressure Alert	√
Optional Features	AC Socket	√
	DC Output 12V/8.3A	√
	Over Current Protection	√
	Hours Meter	√
	Dry Battery	√
	GFCI Socket	√
Package	Packing size(L×W×H)(mm)	720×520×640		950×550×770
	Net Weight(kg/lb)	100		165
	Gross Weight(kg/lb)	105		180
	20FT(pcs)	105		72
