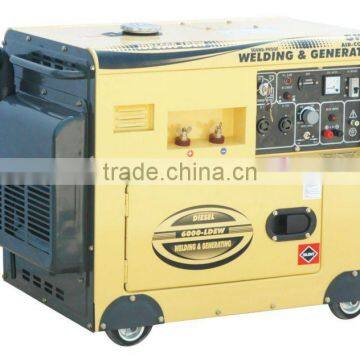

5kva Diesel and Welding Generador

Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

JDP

Model Number:

5kw diesel welding generator

Suzhou Jinding Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JDP

Model Number 5kw diesel welding generator

Voltage 110/220/230

Current 50-180A

Rated Capacity 5kva

Rated Duty Cycle 5kva

Dimensions 950*550*770

Weight 180kg

Usage welding

Specifications

5kva diesel and welding generador
1.5KW
2.AIR-COOLED
3.186 engine
4.silent type

Model		JDP6000-LHE(W)		JDP6000-LD(E)W
Generator	Type	Revolving Magnetic Field,2 pole,Self-Excitating,Single Phase
	voltage regulation	AVR
	Frequency(Hz)	50	60	50	60
	Max.AC Output(KVA)	5	5.5	5	5.5
	Rated AC Voltage(V)	220
	Rated AC Output(KVA)	4.8	5	4.8	5
	Power Factor(cosφ)	1
Welding	Current in Welding(A)	160
	Continuous Load Rate	40%
	Welding Current Adjustment Range(A)	5-180
Engine	Model	JDP186FA(E)
	Type	Direct injection,Single-cylinder,Vertical,4-cycle,Air-cooled
	Displacement(cm3)	418
	Max.Output(HP)	10
	Fuel	Light Diesel Fuel
	Fuel Tank Capacity(L)	15		16
	Oil	SAE
	Oil Capacity(L)	1.65
	Starting System	Recoil/Electric Starting with Battery
	Noise Level(7m)(dB)	85		70
Standard Features	Fuel Gauge	0
	Voltmeter	0
	AC Circuit Breaker	0
	Engine Switch	0
	handle&sheels	0
	Low Oil Pressure Alert	0
Optional Features	AC Socket	With
	DC Output 12V/8.3A	With
	Over Current Protection	With
	Hours Meter	With
	Dry Battery	With
	GFCI Socket	With
Package	Packing size(L×W×H)(mm)	720×520×640		950×550×770
	Net Weight(kg/lb)	100		165
	Gross Weight(kg/lb)	105		180
	20FT(pcs)	105		72
