LPG Generator(1.5kva~5.0kva)

Name: LPG Generator(1.5kva~5.0kva)
Brand: JDP or OEM
SKU: 138977605

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

JDP or OEM

Model Number:

JDP2000/2500/3000/3800/4000/5000/6500LPG

Suzhou Jinding Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name JDP or OEM

Model Number JDP2000/2500/3000/3800/4000/5000/6500LPG

Output Type AC Single Phase

Speed 3000/3600RPM

Frequency 50/60HZ

Rated Power 1.5kva~5.0kva

Rated Voltage 110/120/220/230/240

Specifications

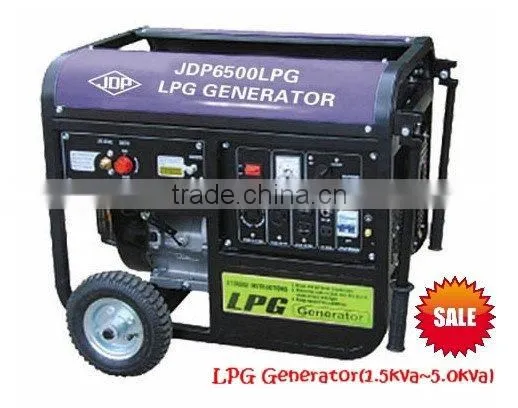

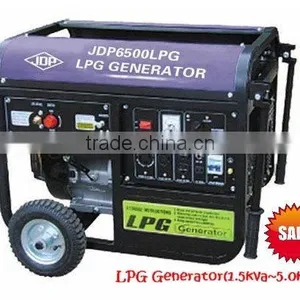

LPG Generator powered by 168-390LPG engine, power range 1.5kva~5.0kva.

SUZHOU JINDING MACHINERY MANUFACTURING CO.,LTD

Specifications:

Model		JDP 2000LPG	JDP 2500LPG	JDP 3000LPG	JDP 3800LPG	JDP 4000LPG	JDP 5000LPG	JDP 6500LPG
Generator	Type	Self-excitating,2-pole,Single-phase
	Voltage Regulation	AVR
	Frequency(Hz)	50/60
	Max.AC Output(KVA)	1.8/2.0	2.0/2.2	2.0/2.2	3.2/3.5	3.5/3.7	4.0/4.5	5.0/5.5
	Rated AC Voltage(V)	110/120/220/230/240
	Rated AC Output(KVA)	1.5/1.8	1.7/2.0	2.2/2.5	2.8/3.0	3.2/3.5	3.5/4.0	4.5/5.0
	Power Factor cosφ	1.0
LPG Engine	Model	168LPG	168LPG	200LPG	240LPG	270LPG	340LPG	390LPG
	Type	OHV Forced Air-cooled 4-stroke
	Displacement(ml)	163	163	196	242	270	337	389
	Max.Output(HP)	5.0	5.0	6.0	7.0	8.0	10.0	12.0
	Fuel	Liquefied petroleum gas
	Oil	SF or Higher grade
	Oil Capacity(L/oz)	0.6			1.1
	Ignition System	T.C.I
	Starting System	Recoil and hand-operated/Electric start
Standard Feature	Fuel Gauge	√
	Voltmeter	√
	AC Circuit Breaker	√
	Engine Switch	√
	AC Socket	√
	DC Output 12V/8.3A	√
	DC Circuit Breaker	√
Optional Features	Remote Control	√
	GFCI Socket	√
	Hours Meter	√
	Handle&Wheels	√
Package	Dimension (LWH) (mm )	600×450×470 700×525×580
	G.W(kg/lbs)	42	42	44	69	74	77.5	86
	N.W(kg/lbs)	40	40	42	65	70	73.5	82
