Home > Products > MARINE GENERATOR > YANMAR/KUBOTA Marine Generator(3.5kw~10kw)

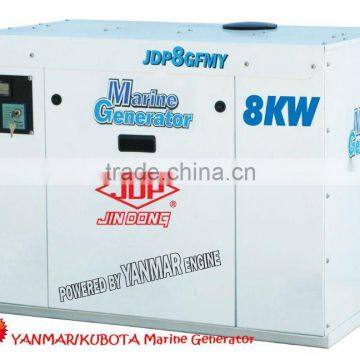

YANMAR/KUBOTA Marine Generator(3.5kw~10kw)
Negotiable
/ Set
50 Sets(Min.Order)
- 2000 Set / Sets per Month
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDP or OEM | |
| Model Number | JDP3.5GFMK~JDP10GFMY | Output Type | AC Single Phase | |
| Speed | 1500/1800;3000/3600 | Frequency | 50/60HZ | |
| Rated Power | 3.5kw~10kw | Rated Voltage | 120/240 |
Product Description
Specifications
Marine Generator power by YANMAR/KUBOTA engine with EPA certified, power range 3.5kw~10kw.SUZHOU JINDING MACHINERY MANUFACTURING CO.,LTD
Specifications:
| JDP3.5GFMY/JDP3.5GFMY-LDE | JDP8GFMY/JDP8GFMY-LDE | |
| Model | EA300NB | 3TNV76-GGE |
| No. of cylinders | 1 | 3 |
| Bore×stroke(in) | 2.95×2.76 | 2.99×3.22 |
| Displacement(cu.in.) | 19 | 1.16 |
| SAE net interm ittent(HP/rpm) | 7/2800 | 14.6/1800 |
| Combustion system | Spherical | |
| Compression ratio | 23 to 1 | 25.3 to 1 |
| Fuel injection pump type | Bosch *mini* type | Bosch in-line(ML),Yanmar made |
| Nozzle type | Bosch *throttle* type | Hole type |
| Cooling system | Fresh waterheat exchanger | Water heat exchanger |
| Lubricating system | Forced lubricating by trochoid pump | Forced feed |
| Fuel | ATSM # 2 diesel or equivalent | |
| Lubricating oil | Quality better than API service CC class | |
| Lubricating oil capacity(U S Q t) | 1.9 | 3.5 |
| Measurement w/o soundshield (L×W×H) in. | 28"×16"×15" | 37"×23"×28" |
| Measurement w/ soundshield (L×W×H) in. | 31"×17.5"×16" | 42"×27"×32" |
| Dry weight w/o soundshield | 185lbs | 534lbs |
| Dry weight w soundshield | 215lbs | 625lbs |
| Starting system | 12V battery | |
| Fuel line dia. | 5/16" | |
| Return line dia. | 3/16" | 1/4" |
| Raw water dia. | 5/8" | 1.1" |
| Exhaust dia. | 11/2" | 1.5" |
| Output Voltage | 120/240 | |
| Output Amps | 30/15 | 66/33 |
| Output Watts | 3500 | 8000 |
