Home > Products > GASOLINE GENERATOR SET > 2KVA~5KVA Gasoline Generador set

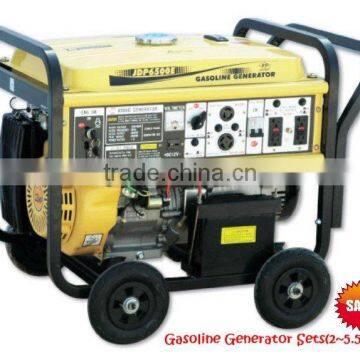

2KVA~5KVA Gasoline Generador set
Negotiable
/ Set
20 Sets(Min.Order)
- 1000 Set / Sets per Month
- shanghai
- T/T
You May Like
- Belon Power 12kw silent gasoline generator RATO R740D gasoline engine
- Belon Power GG15000LE Single phase 220V 12KW gasoline generator Rato R740D gasoline engine pure copper alternator
- Belon Power BL3500i Inverter Gasoline generator 3.2kw open inverter gasoline generator
- Belon Power BL6200ki Inverter Gasoline generator 4.5kw open inverter gasoline generator
- Belon Power BL4000i Inverter Gasoline generator 3.5kw open inverter gasoline generator
- Belon Power BL9000iD Inverter Gasoline generator 7kw open inverter gasoline generator
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | JDP | Model Number: | JDP2500~6500E |
Output Type: | AC Single Phase | Speed: | 3000/3600RPM | Frequency: | 50/60 |
Rated Power: | 2KVA~5KVA | Rated Voltage: | 110/120/220/230/240V | Rated Current: | 18-45A |
Product Description
Specifications
2KVA~5KVAGasoline Generador set1.electric start
2.round pipe frame
3.Air cooled
4.open type
Model | JDP2500(E) | JDP3500(E) | JDP4500(E) | JDP5500(E) | JDP6500(E) | ||
Generator | Type | Revolving Maginetic Field,Self-excitating,2-pole,Single-phase | |||||
Voltage Regulation | Capacitance/AVR | ||||||
Frequency(Hz) | 50/60 | ||||||
Max.AC Output(KVA) | 2.2/2.5 | 2.8/3.0 | 3.8/4.0 | 4.5/5.0 | 5.5/6.5 | ||
Rated AC Voltage(V) | 110/120/220/230/240 | ||||||
Rated AC Output(KVA) | 2/2.2 | 2.5/2.8 | 3.5/3.7 | 4.0/4.5 | 5.0/5.5 | ||
Power Factor cosφ | |||||||
Engine | Model | JDP168F(E) | JDP168FA(E) | JDP177F(E) | JDP182F(E) | JDP188F(E) | |
Type | Single-cylinder 4-stroke,25°inclined with Air-cooled | ||||||
Displacement(cc) | 163 | 196 | 270 | 338 | 389 | ||
Max.Output(HP) | 5.5 | 6.5 | 9 | 11 | 13 | ||
Fuel | Unleaded Gasoline | ||||||
Fuel Tank Capacity(L/gal) | 15/4.0 | 25/6.6 | |||||
Oil | SF or Higher Grade | ||||||
Oil Capacity(L/oz) | 0.6/20 | 1.1/37 | |||||
Ignition System | Non-contact transistorized ignition(T.C.I) | ||||||
Starting System | Recoil or electric start | ||||||
Standard Features | Fuel Gauge | 0 | |||||
Voltmeter | 0 | ||||||
AC Circuit Breaker | 0 | ||||||
Low Oil Level Protection | 0 | ||||||
Engine Switch | 0 | ||||||
DC Output 12V/8.3A | 0 | ||||||
DC Circuit Breaker | 0 | ||||||
AC Socket | 0 | ||||||
Optional Features | Pilot Light | + | |||||
Remote Control | + | ||||||
GFCI Socket | + | ||||||
Handle&Wheels | + | ||||||
Hours meter | + | ||||||
Package | Dimension(L×W×H)(mm) | 610×460×510 24.1×17.7×18.5 | 695×525×560 28.0×20.1×22.9 | ||||
G.W(kg/lbs) | 47/103 | 51/112 | 85/187 | 86/189 | 88/194 | ||
N.W(kg/lbs) | 45/99 | 49/108 | 82/180 | 83/182 | 85/187 |
