Specifications

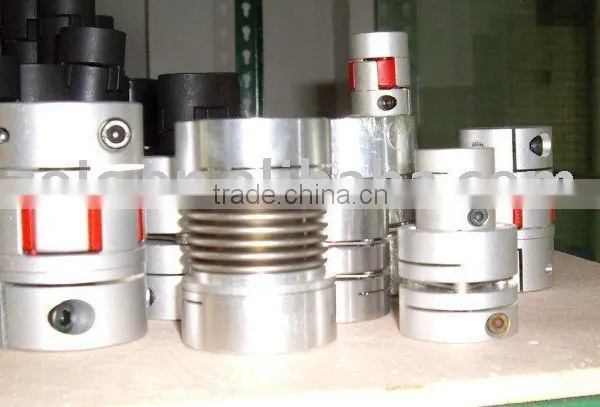

Aluminium couplings are greatly demanded in medium and minor power transmission systems driven by moters, such as speed reducers..

Coupling No:3012,4012,4014,4016,5014,5016,5018,6018,6020,6022,8018,8020,8022,10020,12018,12022

Aluminium Coupling is widely used for its compact designing, easy installation, convenient maintenance, small size and light weight. As long as the relative displacement between shafts is kept within the specified tolerance, flexible couplings will operate the best function and have a longer working life. Thus it is greatly demanded in medium and minor power transmission systems driven by moters, such as speed reducers, hoists, compressos, conveyers, spinning and weaving machinery and ball mills.

1. Applicable to all types of machinery and hydraulics.

2. Small volume and large transmitted torque.

3. To be plugged in axially, easy assembly, maintenance-free.

4. Balancing axiad, radial and angular misalignment.

5. Dimensions of bore d, d1 available on customer request.

6. Applicable from -40 to +100, temperature peaks up to 120.

7.Permittable relative displacement:

8.Radial displacement: 0.2~0.6mm

9.Angle displacement: 0.30~1.30
