Home > Products > Seed Coating Machine / Seed Treater > 5BY-5A Seed Coating Machine
5BY-5A Seed Coating Machine
- 20 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | seed coating machine | Use: | seed coating machine | Certification: | ISO9001:2008 |
Place of Origin: | Hebei, China | Brand Name: | SYNMEC | Model Number: | 5BY-5A |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

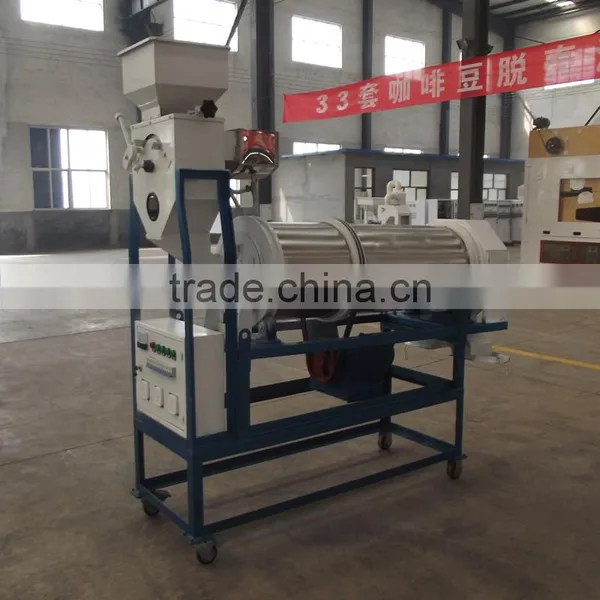

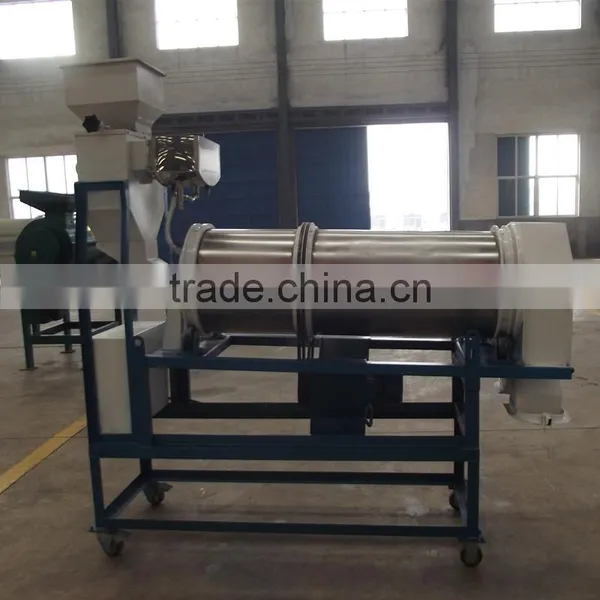

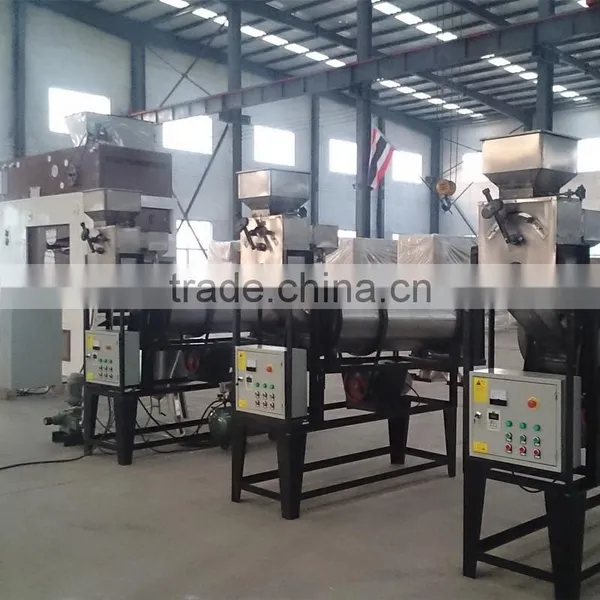

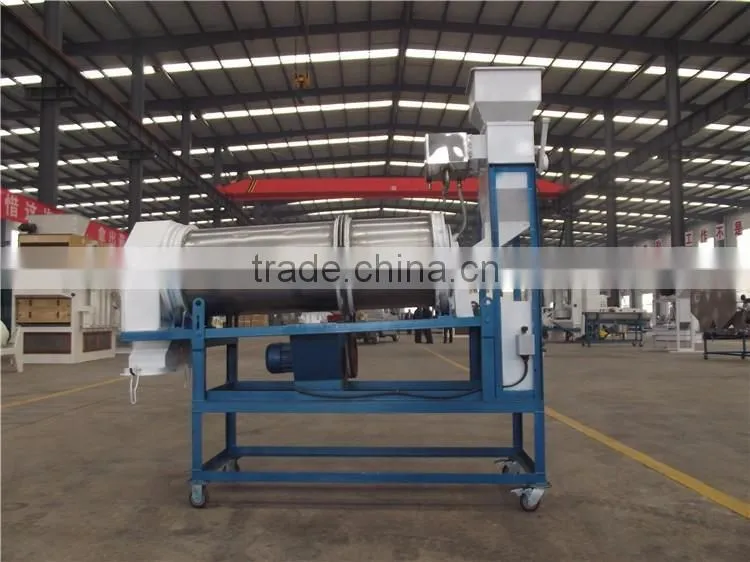

5BY-5A Seed Coating Machine
Introduction 5BY-5A seed coating machine
The 5BY-5A seed coating machine is used for coating vegetable seed and grain seed, such as seeds of wheat, barley, maize, sorghum, soybeans, cotton, chili, etc.
Principle of 5BY-5A seed coating machine

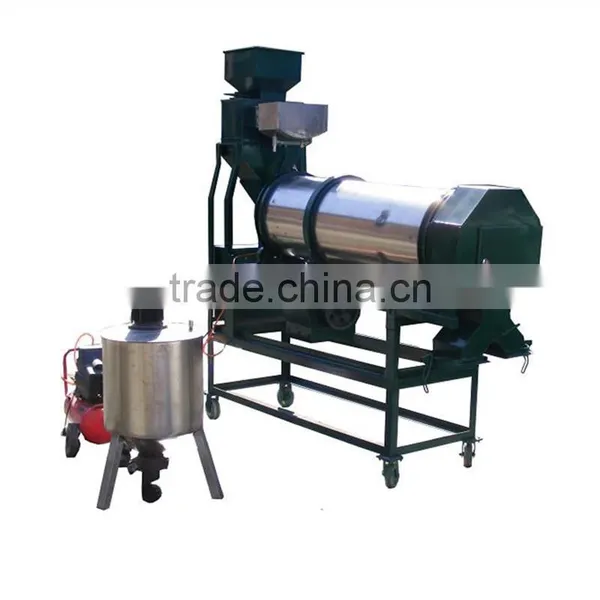

Seeds will be quantitatively fed into the rotary cylinder through feeding bucket elevator, at the same time quantitative medicine liquid will be atomized by air compressor and sprayed to the surface of seeds, and then will well mixed in the rolling cylinder.
The seeds will be coated with liquid chemical before sowing, for against the different pest and diseases, lead to better germination.
Features of 5BY-5A seed coating machine
-Good air-tightness
-Overload and overheat protection
-Quantitative medicine supply system
Technical Parameter
Model | Capacity(T/H) | Power(KW) | Weight(KG) | Dimension L×W×H(mm) | Agent Supply Model |
5BY-2 | 2 | 1.47 | 200 | 1600×800×1500 | Spoon |
5BY-5A | 5 | 6 | 800 | 2200×900×2500 | Spoon |
5BY-5B | 5 | 2.3 | 700 | 2150×800×2400 | Dosing Pump |
You may would like other seed grain processing machine
Destoner (5XQS-5)
Destoners are mainly used in grain cleaning and food processing sector, they are also applied in seed sector especially on crops being harvested close to the ground.

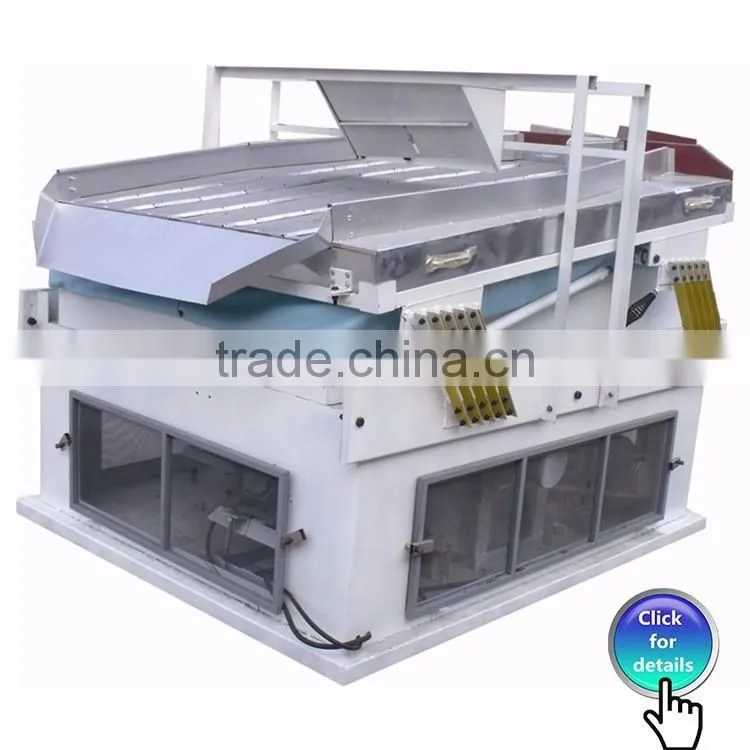

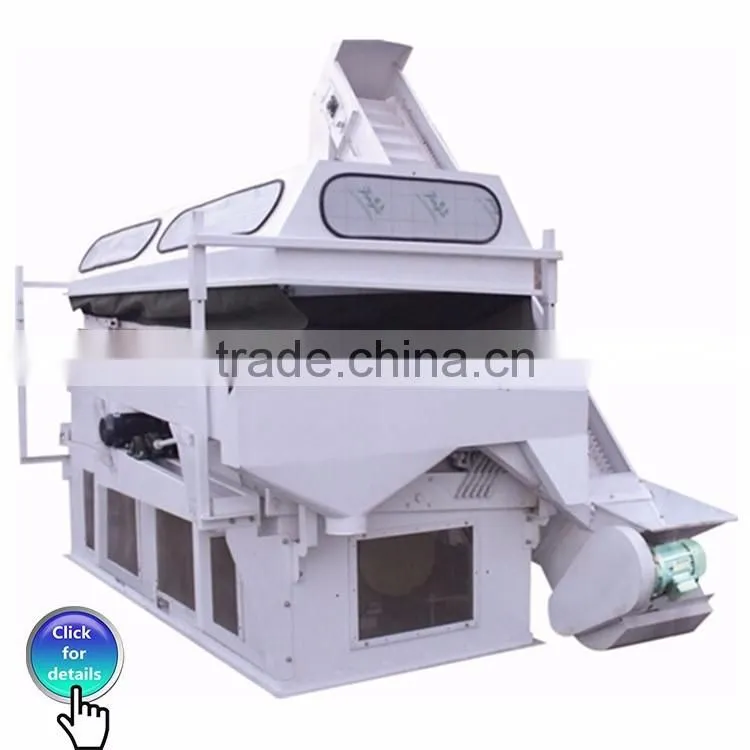

Gravity separator (5XZ-6)
5XZ series gravity separator is used to separate material with in same size but different in specific weight.It can efficiency remove partially eaten, immature, insect damaged, sick seeds from good seeds.To achieve high grading quality of seed, gravity separator become the basic machinery for seed company.
Pre-Sale | Your inquiry will be replied by our well-trained & experienced staff within 12 hours. |
Shipping | By sea with less container load or full container load We will choose or advise the most convenient way for you. |
Payment | We accept T/T, Western Union, MoneyGram, Paypal, L/C(above 30K USD). 30% in advance, balance should be paid before shipment. |
Feedback | We sincerely invite you to leave positive feedback to us. If you have any questions, please feel free to contact us at any time. We will reply as soon as possible. |
After Sale | Any questions of the production, please let me know directly by email or phone. We can deal with these issues on time, promise give you happy answers. We focused on the after sale. Welcome send any comments to us. |

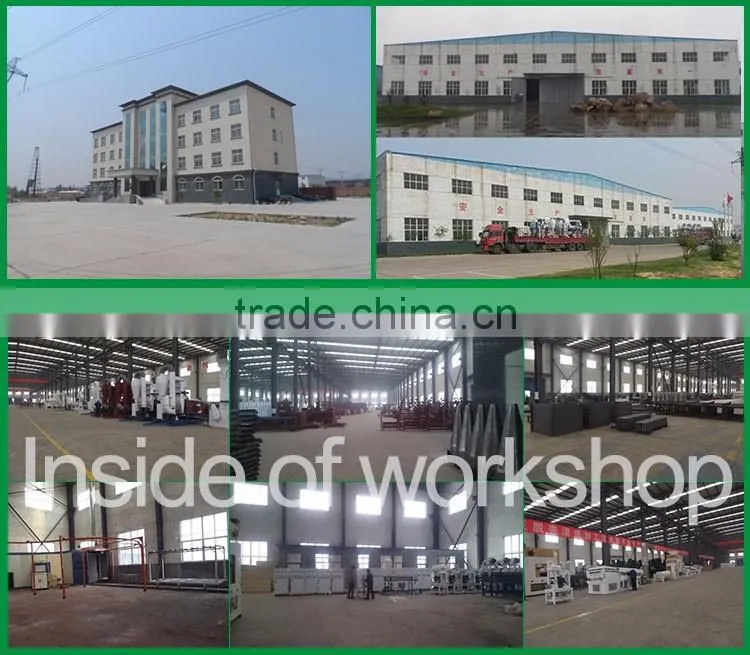

We are an international trading company also a professional manufacturer for grain cleaning and seed processing machinery. Our manufactory’s name is Hebei RUIXUE Grain Selecting Machinery Limit, SYNMEC as an international brand of‘RUIXUE grain selecting machinery’, also it is an independent corporate entity ‘SYNMEC International trading Ltd.’, so we can provide professional machinery making and professional international trading service.
Customers visits
1. Q Are you factory or trading company?
A We are professional manufacturer for seed processing machinery and also a international trading company
2. Q What is your minimum order quantity?
A 1 Set
3. Q What are your payment terms for new customers?
A T/T, L/C, Money Gram, West Union, Paypal etc
4. Q How long will it take for my products to arrive me?
A Usually by sea, 20 days to 50 days depend on which country you are in.
5. Q Do you help to install the machines?
A Yes, no problem
we will send our engineers to take charge of the installation, test running, and training local operators.
6. Q How can I visit your factory?
A1. From Guangzhou Baiyun International Airport to Shijiazhuang international airport (2.5hours) , then to our factory by car (1hour)
A2. From Beijing West Railway Station to Shijiazhuang Railway Station by high-speed train(1.5 hours), then to our factory by car (45minutes)
A3. From Hongkong International airport to Shijiazhuang international airport (4.5hours), then to our factory by car (1hour)
Contact Us
- Hebei Ruixue Grain Selecting Machinery Company Limited
- Contact nameTony Zhou
- Phone86-311-67663887
- AddressBaifo East Street,Chang'an District Shijiazhuang,Hebei
