Grain Processing Machinery
- XINGANG
- T/T Credit Card PayPal
You May Like
Product Details
| Type | Seed Processing Machinery | Use | remove out dust ,light impurities, large and small impurities | |
| Certification | ISO9001, SONCAP | Place of Origin | Hebei, China | |
| Brand Name | SYNMEC | Model Number | 5X-5/12 | |
| Condition | New | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

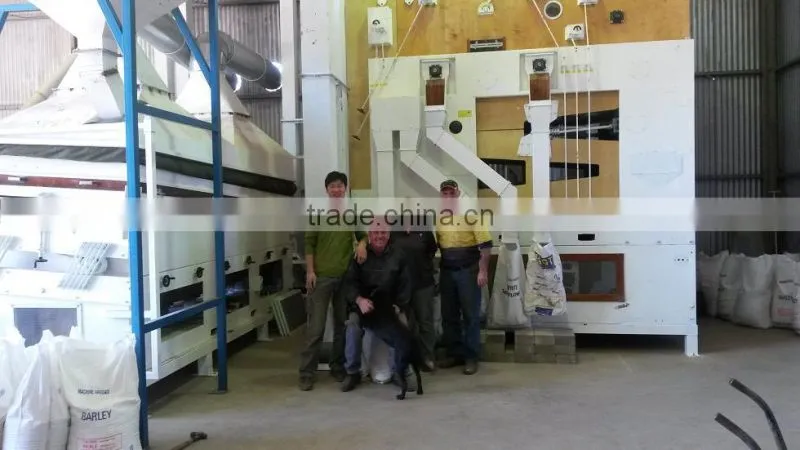

Grain Processing Farm Machinery
Introduction of Grain Processing Farm Machinery:

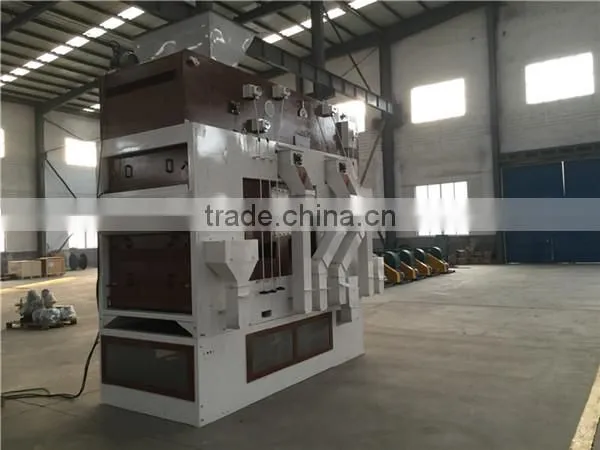

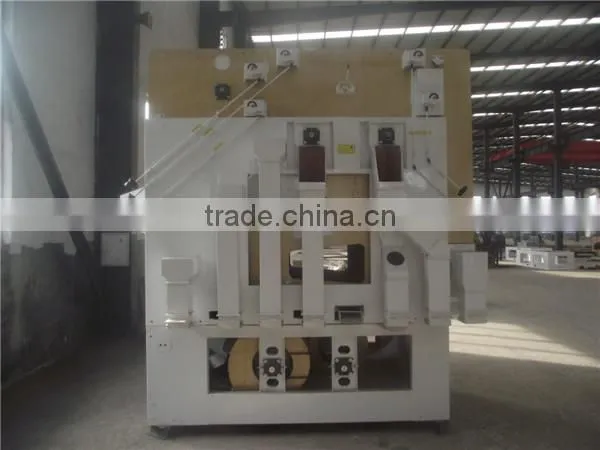

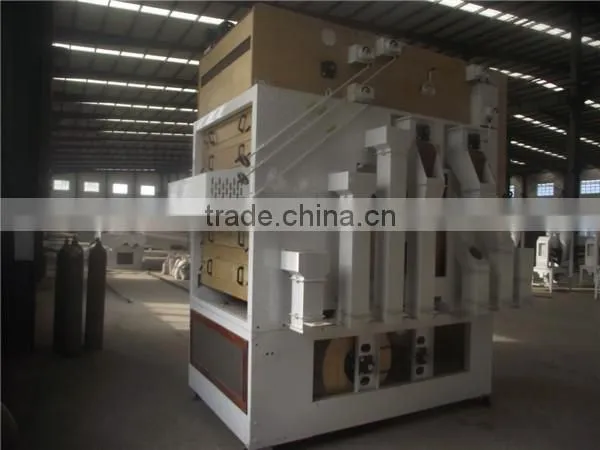

The 5X series seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.
The standard design of the machine is provided with both pre- and after suction units.
Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.
The 5X series Grain Processing Farm Machinery is a very competitive machine, both as regards price and capacity as well as function and operation.
The technology of the machine is thoroughly tested, which can be documented by many references all over the world.
Features of Grain Processing Farm Machinery:
* Easy and quick operation and screen changing
* The screen boxes are made of wear resistant plywood, which is approved for food
* Screen cleaning with special rubber balls
* Built-in light.
* Durable surface of the machine owing to high-quality powder lacquering
Model | 5X-5 | 5X-12 |
Dimension(L×W×H) | 3200×1920×3600 mm | 3790×1940×4060 mm |
Overall weight | 3250 kg | 3600 kg |
Rated capacity | 5 t/h | 12 t/h |
Overall air volume | 8200 m3 | 12520 m3 |
External air blower | 4-72N0-6A, 7.5 kW | 4-79N0-6A, 11kw |
Vibration sieve motor(gear motor) | 2.2 kW | 2.2 kW |
Back lifting system motor | 3.0 kW | 3.0 kW |
Feeding motor | 1.5 kW | 1.5kw |
Total Power | 6.7 kW | 6.7kw |
Air Blower Type | centrifuge air blower | |
Top air blower Rotary speed | 4-79NO6A,1400 r/min | |
Back lifting air blower Rotary speed | 100~1000 r/min | |
Screen Type | piercing screen | |
Screen Dimension (L×W) | 800×1250 mm | |
Frequency | 300(80~400) times/min | |
Amplitude | 30 mm | |
Layers and number | 4 layers,7 pieces | 5 layers,15 pieces |
5XZC-5DH seed cleaning machine
5XZF-7.5F seed cleaning machine
5XZD-15AC Seed Cleaning Machine
We have professional world trading team with rich world trading experience, provide full English user manual, Video using
instruction, Oversea machine assembly and On-site training.
