fine seed cleaning machine for grain beans
Introduction of 5X series Fine Seed Cleaning Machine:
The 5X series fine seed cleaning machine is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.
The standard design of the machine is provided with both pre- and after suction units.
Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.
The 5X series fine seed cleaning machine is a very competitive machine, both as regards price and capacity as well as function and operation.
The technology of the machine is thoroughly tested, which can be documented by many references all over the world.
Characteristics of 5X series Fine Seed Cleaning Machine:
l Easy and quick operation and screen changing
l The screen boxes are made of wear resistant plywood, which is approved for food
l Screen cleaning with special rubber balls
l Built-in light.
l Durable surface of the machine owing to high-quality powder lacquering
Model |
5X-5 fine seed cleaning machine |
5X-12 fine seed cleaning machine |
Dimension(L×W×H) |
3200×1920×3600 mm |
3790×1940×4060 mm |
Overall weight |
3250 kg |
3600 kg |
Rated capacity |
5 t/h |
12 t/h |
Overall air volume |
8200 m3 |
12520 m3 |
External air blower |
4-72N0-6A, 7.5 kW |
4-79N0-6A, 11kw |
Vibration sieve motor(gear motor) |
2.2 kW |
2.2 kW |
Back lifting system motor |
3.0 kW |
3.0 kW |
Feeding motor |
1.5 kW |
1.5kw |
Total Power |
6.7 kW |
6.7kw |
Air Blower Type |
centrifuge air blower |
|
Top air blower Rotary speed |
4-79NO6A,1400 r/min |
|
Back lifting air blower Rotary speed |
100~1000 r/min |
|
Screen Type |
piercing screen |
|
Screen Dimension (L×W) |
800×1250 mm |
|
Frequency |
300(80~400) times/min |
|
Amplitude |
30 mm |
|
Layers and number |
4 layers,7 pieces |
5 layers,15 pieces |

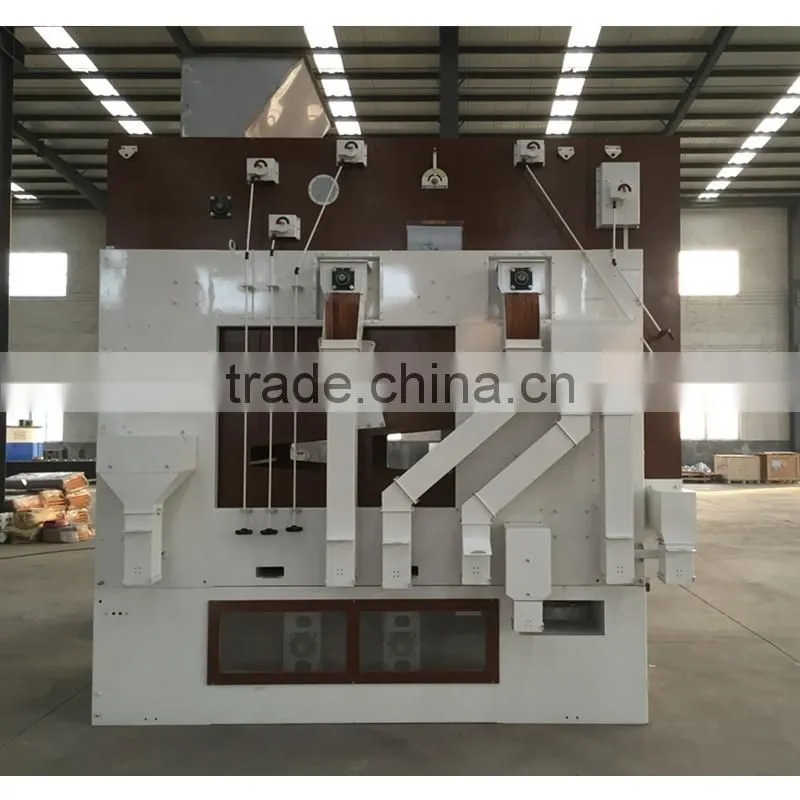

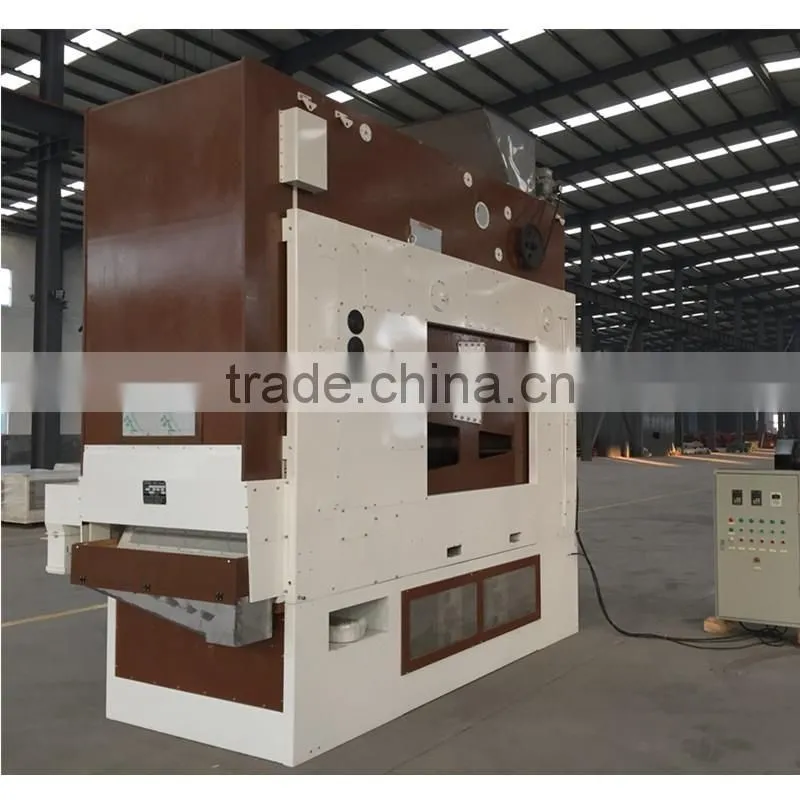

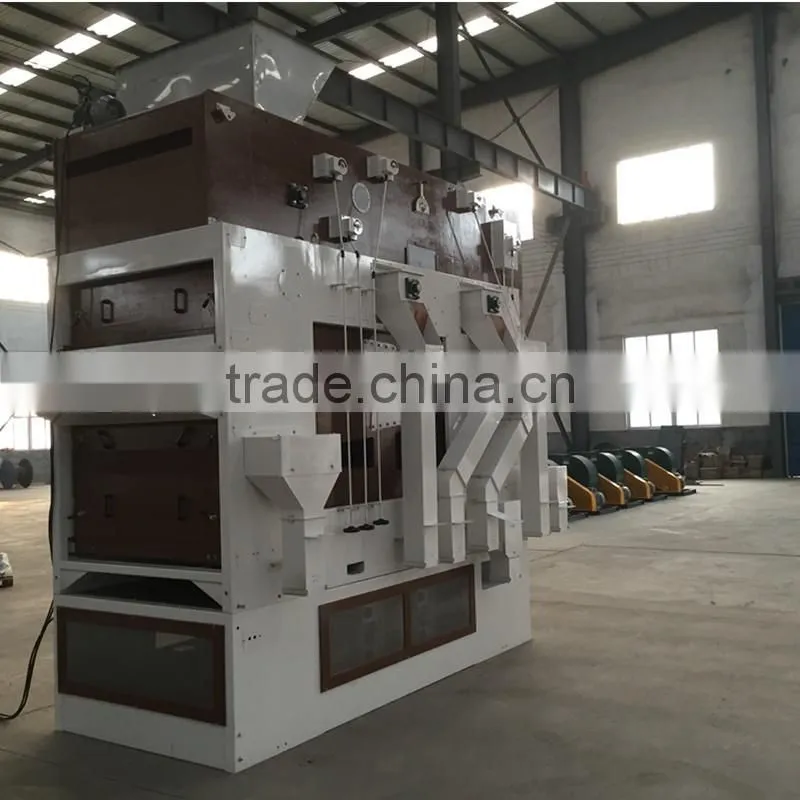

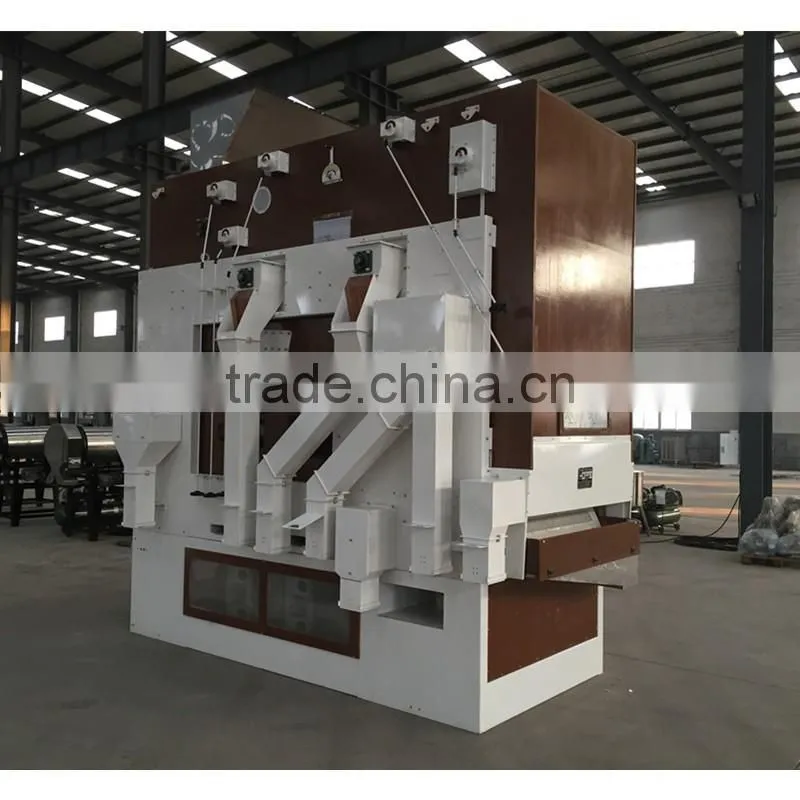

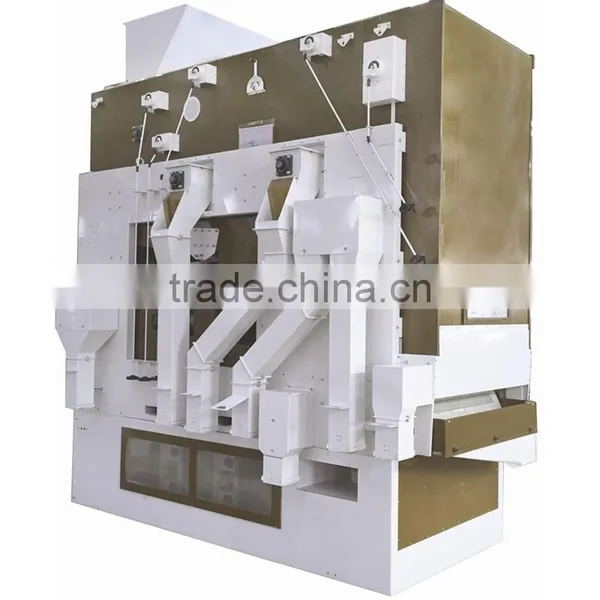

PHOTOS OF 5X series seed cleaning machine

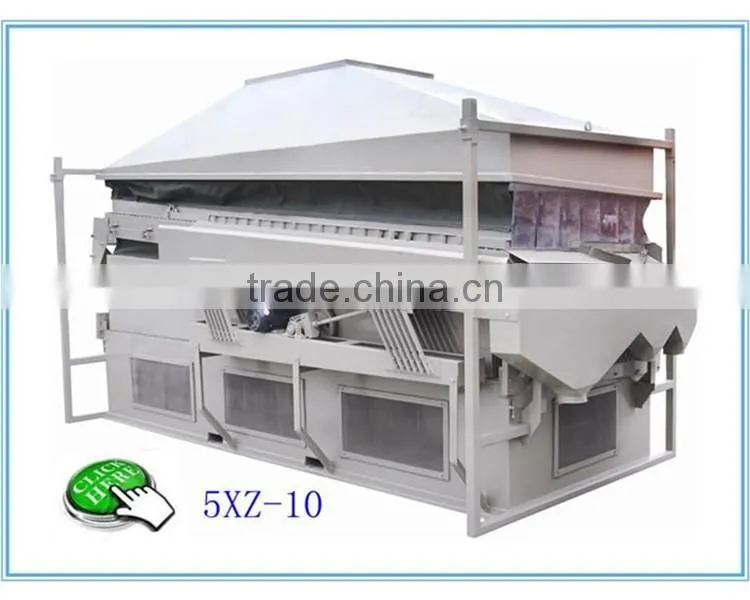

You may need Gravity Separator, which is used to remove immature, moldy, insect damaged grain , half broken or hollow grain etc from good grain.

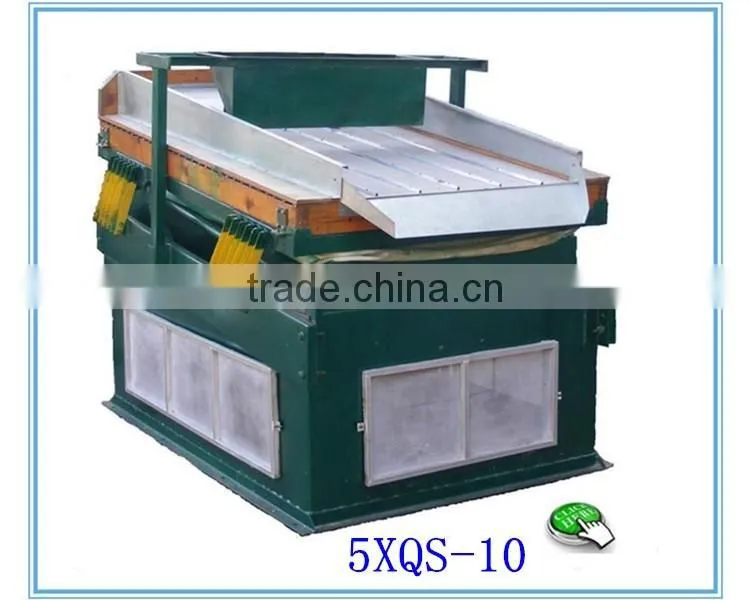

You may also need Destoner , which can remove heavier impurities, like stones, metals or glasses from good grain.
You may also need Seed Treater, it is used to coat seed with liquid medicine.

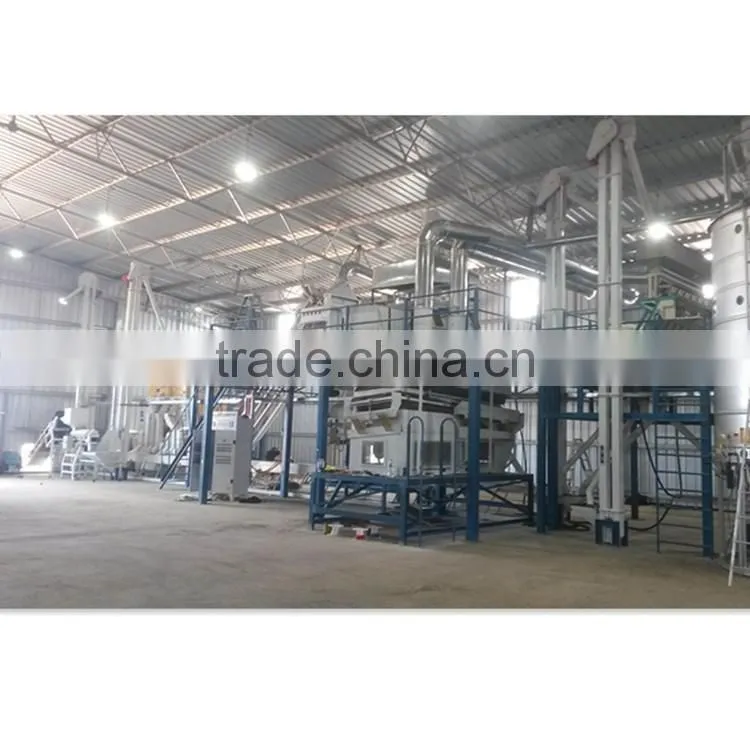

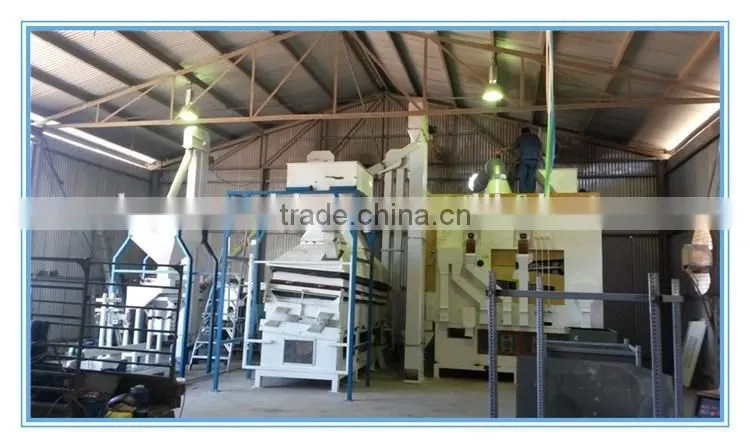

IF YOU NEED SEED PROCESSING PLANT, WE CAN ALSO DESIGN FOR YOU
Click Photo to Know More
Click Photo to Know More
1. Q Are you factory or trading company?
A We are professional manufacturer for seed processing machinery and also a international trading company
2. Q What is your minimum order quantity?
A 1 Set
3. Q What are your payment terms for new customers?
A T/T, L/C, Money Gram, West Union, Paypal etc
4. Q How long will it take for my products to arrive me?
A Usually by sea, 20 days to 50 days depend on which country you are in.
5. Q How can I visit your factory?
A1. From Guangzhou Baiyun International Airport to Shijiazhuang international airport (2.5hours) , then to our factory by car (1hour)
A2. From Beijing West Railway Station to Shijiazhuang Railway Station by high-speed train(1.5 hours), then to our factory by car (45minutes)
A3. From Hongkong International airport to Shijiazhuang international airport (4.5hours), then to our factory by car (1hour)
