Sorghum De-stoner
FEATURES
- Excellent performance and high capacity
- Elevator and dust cyclone separator are available
- Drive by electric vibratory motor for negligible maintenance
- Fully adjustable to achieve the optimum separation
- Dust free operation, totally enclosed top connected to fan
INTRODUCTION

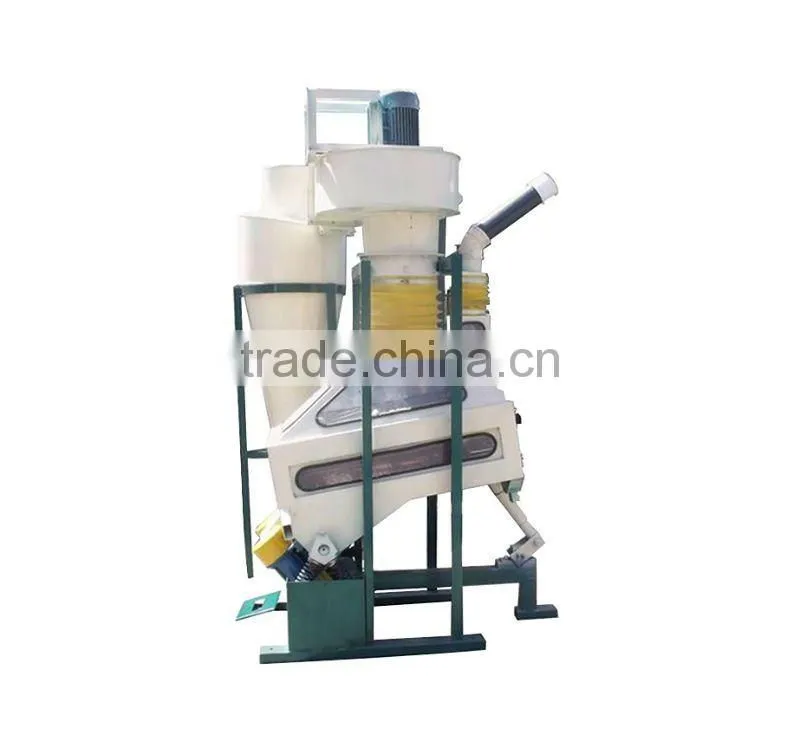

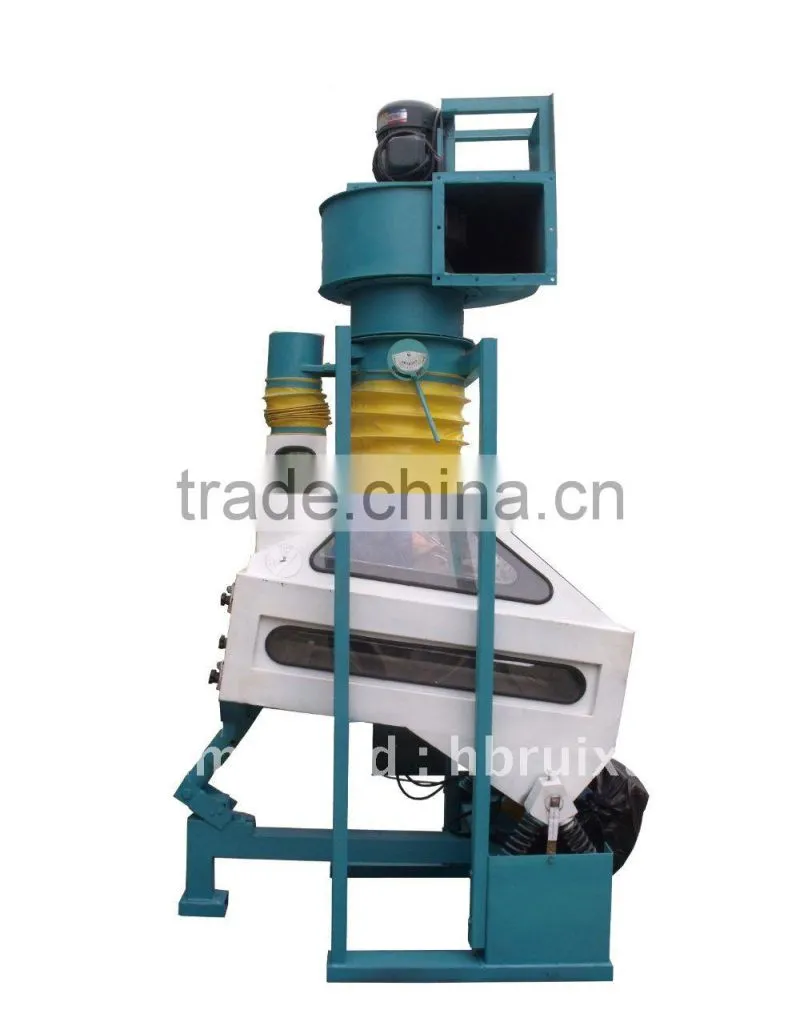

TQSF Sorghum De-stoner is applied for efficient separation of stones and pebbles, glass, and other high-density impurities from the stream of grain, according to the difference in specific weight.
The Sorghum De-stoner working table is covered with a woven wire mesh bed, through which air flows from below. Heavy impurities such as stones are not lifted by the air cushion and stay on the mesh bed. The vibratory motion of the table causes this heavy material to be transported to the beginning of the regulating plate at the far end of the machine.
Under this plate, the air flows in an opposite direction to the movement of grain on the
working table. Due to this direction of air motion stones are separated from the product and moved to the stones outlet.
TECHNICAL PARAMETERS
Product Name And Model No. |
Capacity(KG/H) |
Power(KW) |
Dimensions(MM) |
Weight(KG) |
TQSF-60 Sorghum De-stoner |
5000 |
3.5 |
1450*876*1800 |
320 |
TQSF-80 Sorghum De-stoner |
7500 |
6 |
1450*1046*1800 |
400 |
TQSF-100 Sorghum De-stoner |
10000 |
8 |
1450*1216*1800 |
480 |
