Factory Low Price Universal Magnetic Stripe Card Reader (read Track 2, 3)

Factory Low Price Universal Magnetic Stripe Card Reader (read Track 2, 3) photo-1

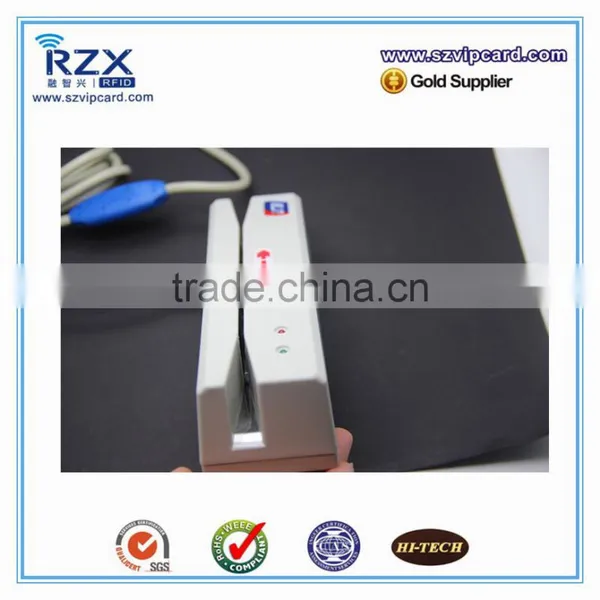

Factory Low Price Universal Magnetic Stripe Card Reader (read Track 2, 3) photo-2

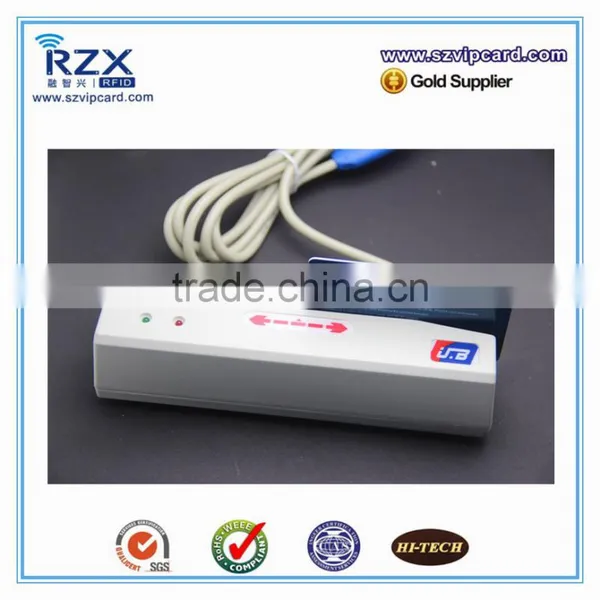

Factory Low Price Universal Magnetic Stripe Card Reader (read Track 2, 3) photo-3
Factory Low Price Universal Magnetic Stripe Card Reader (read Track 2, 3) photo-4
US$ 18 - 38 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
R&X
Model Number:
RZX
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name R&X
Model Number RZX

Selling YLE-400 magnetic card reader



YLE-J400 series reader is an important research and development of magnetic stripe card reading products, designed for the banking, taxation, the stock market, commodity inspection, posts and telecommunications industries and so on, which use formagnetic cards reading and sending.



This product is set to support read magnetic stripe card in two direction, can read track1/2/3 or track1,2,3 together, complete with the ANSI / ISO technical standards with USB output.





 Specification:

  • Read card from two directions
  • Power is from the host computer without an external power supply.
  • Identify reading successe or failure by LED and buzzer .
  • YLE-J400 Series magnetic stripe card readers comply with ANSI / ISO.
  • USB interface emulates HID keyboard , take power directly from the USB port, no supply of external power, which is easy to use





1. Magnetic Card Standard: ISO 7811-7815


2. Decoding mode: F2F (FM)

3. Swiping speed: 10 ~ 120cm / s

4. Head life: ≥600,000 times

5. Power supply voltage: DC 5V ± 5%

6. Supply Current: ≤35mA (bar code reader ≤60mA)

7. Working environment: Temperature: 0 ~ 45°C ;  Humidity: 10 ~90%RH









Instruction:

1. Red indicating light is on after the reader is powered, meanwhile, buzzer beeps three times, which shows reader can use to read magnetic cards.
2. Handheld magnetic stripe card to swipe the reader slot at a constant rate.

3. When the card is succeed in reading card, a green light flashes and at the same time the buzzer sounds which indicates successful reader.

 Factory low price universal magnetic stripe card reader (read Track 2, 3)Factory low price universal magnetic stripe card reader (read Track 2, 3)Factory low price universal magnetic stripe card reader (read Track 2, 3)





Company Information

       Located at Jinhao Chuangye Park, Dafu Industrial Zone Road, Guanlan Street, Longhua New Tech Zone, the clean workshop covers 5000 square meter equipped by advanced German (SM52-4) UV printing equipment, automatic production line in international level and RFID automatic packaging production line. Specialized in smart IC card, dual interface card, magnetic card, barcode card, password scratch card, all kinds of contact and non-contact card production, annual production capacity has reached 300 million, is one of the largest professional smart card and RFID production enterprises in Southern China region.

 Factory low price universal magnetic stripe card reader (read Track 2, 3)





Certifications

In 2005, the company set up in March 2005;

In 2006, the first IC card production line put into operation;

In 2008, the company brought in Heidelberg GTO printing equipment to largely increase the capability of printing;

In 2010, dual interface IC card production line put into operation;

               company passed the site inspection by SGS third party factory;

               company received a licence to print;

In 2011, company moved into new industrial zone, production environment improved a lot

                the newly added three automatic non-contact IC card production line rapidly expanded the production capacity;

               the company obtained the national industrial products production license of IC card;

               Heidelberg Subaru four-color printing machine used on-line, print quality and speed are greatly improved;

In 2012, the company passed the test for FM1208, the non-contact CPU card by the Ministry of housing and urban rural     development; the company became Shanghai Huahong IC Co Ltd Southern China area designated authorized packaging   manufacturers;

                the company input DOD, NBS, DC and other equipment, to provide comprehensive personalized services to customers;

In 2014, the company was awarded the high-tech enterprise certification.

Factory low price universal magnetic stripe card reader (read Track 2, 3)



Our Services

Why do you choose us?

l   More than 10 years experience in RFID / Smart Card field, professional manufacturer.

l   5000m2 of dust-free workshop and best 4 color Heidelberg printers to ensure you Short Lead Time and High Quality.

l   Feedback quickly: 24 hours online service and reply to your inquiry within 8 hours; We can provide online supports for you when need helps on testing.







How to order?

1) Provide your specific requirements and artwork with format of PDF/AI/CDR/;

2) Quotation;

3) Confirm to place the order;

4) Our designer will make the bleed on your artwork or do a design according to your requirements;

5) Send you the confirmation draft and a Proforma Invoice;

6) Signed the confirmation draft and send it back, then make the payment;

7) Start production after confirmation and payment;

8) Production , 7 working days for quantity under 50,000pcs (no special crafts);

9) Delivery by DHL / UPS / FedEx etc. according to your shipping address.





Lead time

1,000 – 50,000pcs………around 5-8 working days

60,000 – 100,000pcs …..around 8-10 working days

150,000 – 500,000pcs….around 12-15 working days
