Specifications
1.lader,radlader,mini radlader2.hst,cvt
3.epa perkins or kubota engine,italy pump and valve
4.usa eaton steering gear 5ce

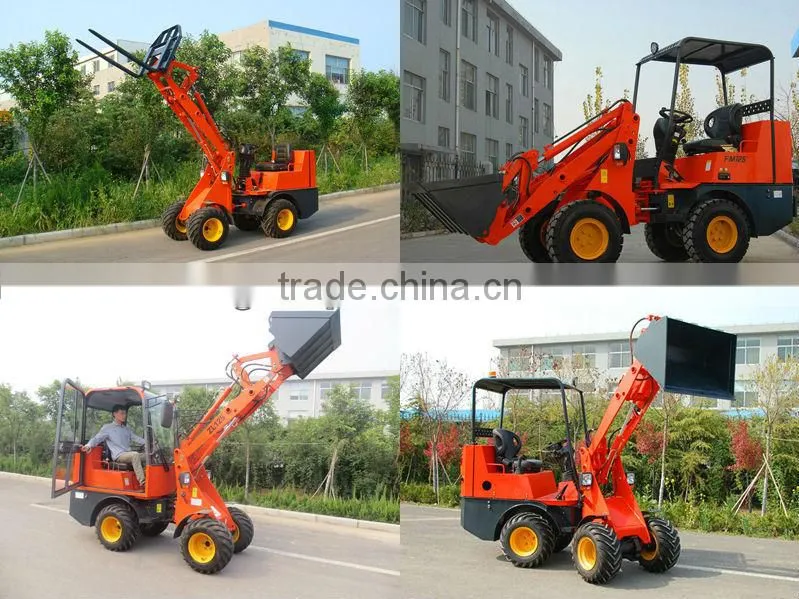

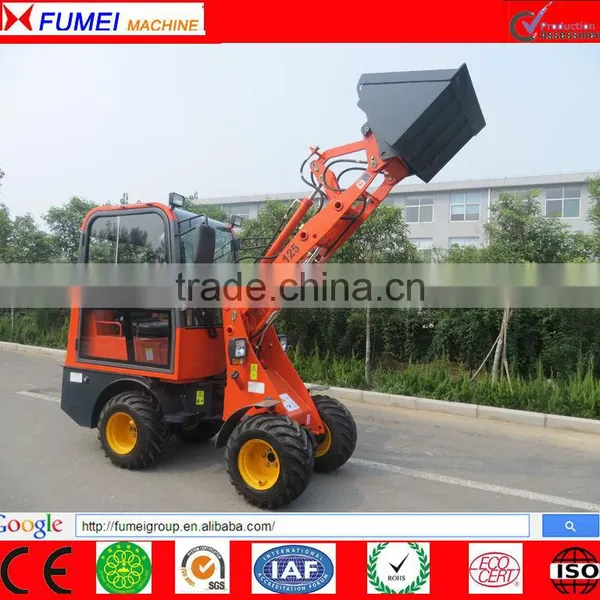

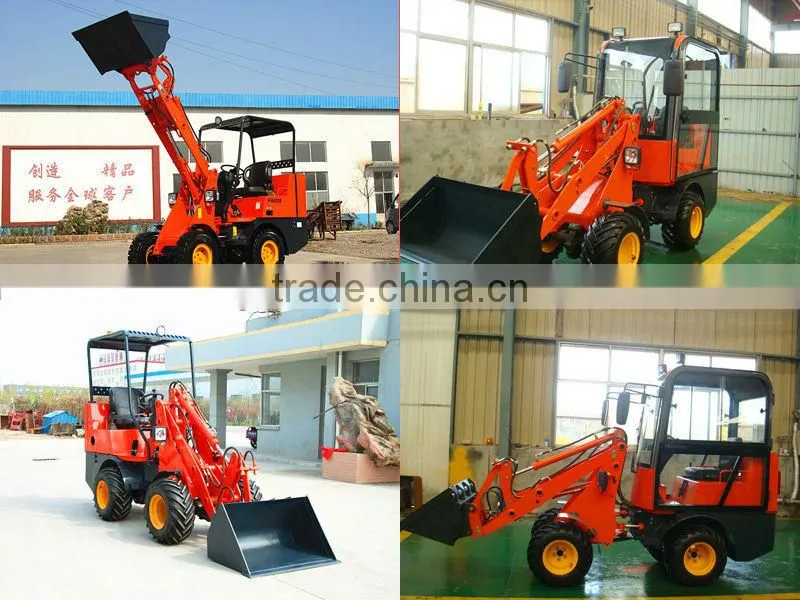

| FM125 mini wheel loader specification | ||
| Engine | model | Perkins 403D-11 |
| type | 3 cylinder,water cooled | |
| rated power | 18.5 kw | |
| rated speed | 2800 r/min | |
| displacement | 1.1 L | |
| max.torque | 67 Nm | |
| Performance | drive pump type | closed piston pump |
| total weight | 1500 kg | |
| Tipping loads in bucket(kg) | ||
| lift frame horizontal/machine stright | 850 | |
| lift frame horizontal/machine articulated | 550 | |
| rated bucket capacity | 0.35 m³ | |
| overall size | 3650×1110×2250 mm | |
| travel speed | 0-12 km/h | |
| max.breakout force | 12 Kn | |
| battery | 43Ah | |
| rated voltage | 12 v | |
| steering type | articulated hydraulic steering | |
| drive system | hydrostatic motor | |
| drive type | 4 wheel drive | |
| transmission model | HST | |
| transmission type | CVT | |
| drive axle model | hydrostatic drive axle | |
| max.grade ability | 20° | |
| tyre | 26×12.00-12 | |
| fuel tank capacity | 32 L | |
| hydraulic oil tank capacity | 40 L | |
FM125 Wheel Loader Features

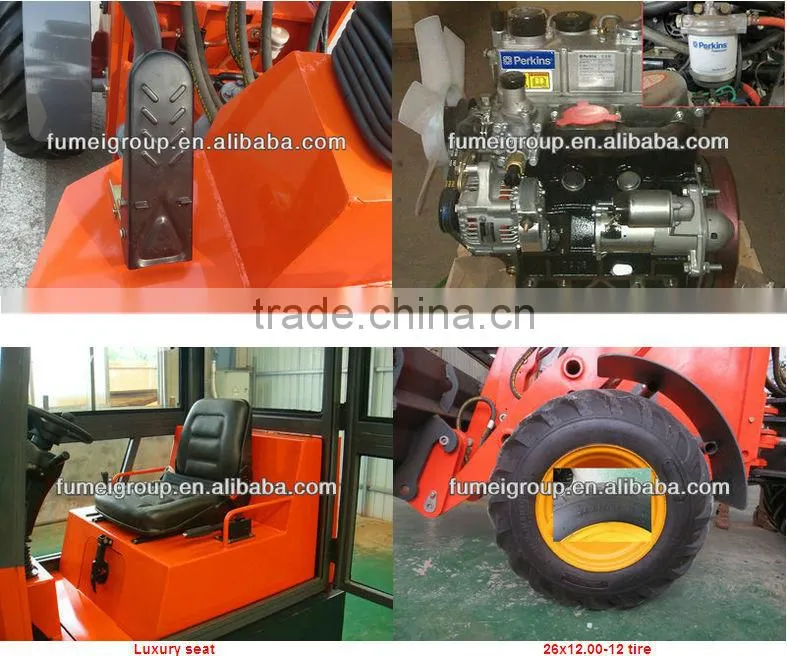

High performance environmental protection engine
Adopt the latest series PERKINS engine,high power,low emissions and high fuel economy,creating additional value
for clients;complemented by dedicated air filters,shock absorbers and exhaust muffler systems,building up a more
comfortable driving environment.
The high quality plunger pump and dual hydraulic cycloid motors constitute the closed return hydrostatic transmission
system,keep high efficiency of the engine in very wide output rotation speed .The characteristic of the hydrostatic
transmission system have the limitless speed change,fast speed change, change the travel direction quickly,start
gently,etc. It’s very precious performance for the wheel loader which need start and change the speed frequently.

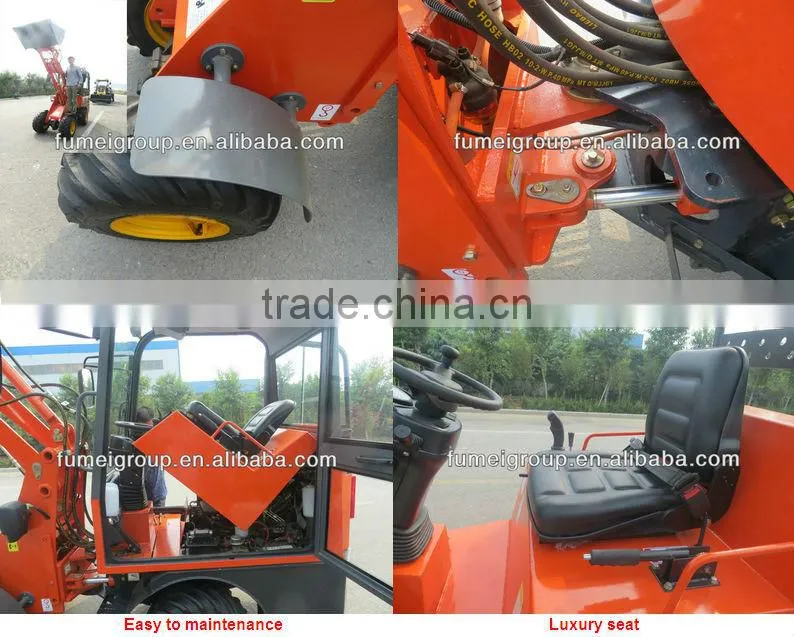

The man-machine engineering design can satisfy the entire drive comfortable request from the drivers. It includes:
Easy study control system,the seat and direction column which can adjust as driver’s figure and weight,multi-function
control handle,good front and black view and so on.All of these can cause you to complete the day work in happy mood.
High strength working device,Super high lifting height
The precise design makes the compact structure working device with low outline,super high lifting height and strong
anti-torsion force,at the same time, guarantees the bucket maintains horizontal during entire lifting,which are safeguards
that the machine can safely and accurately load heavier goods.

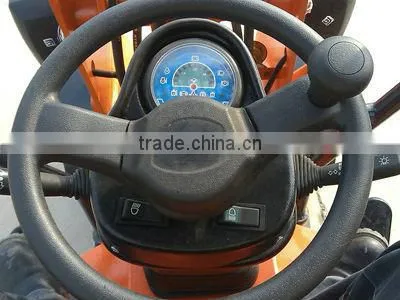

Steering wheel
