Specifications
3 ton wheel loader with Deutz engine joystickWeichai deutz 92kw engine
17.5-25 tire
3 ton payload and standard bucket

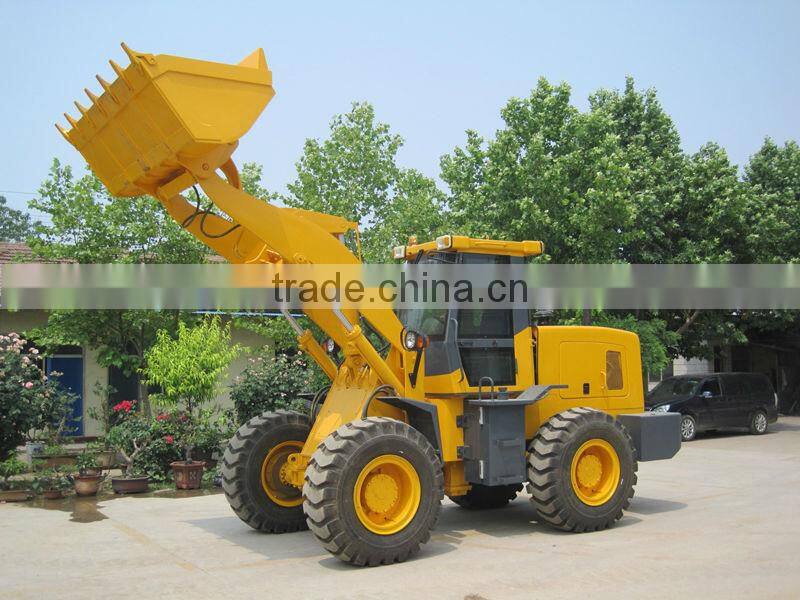

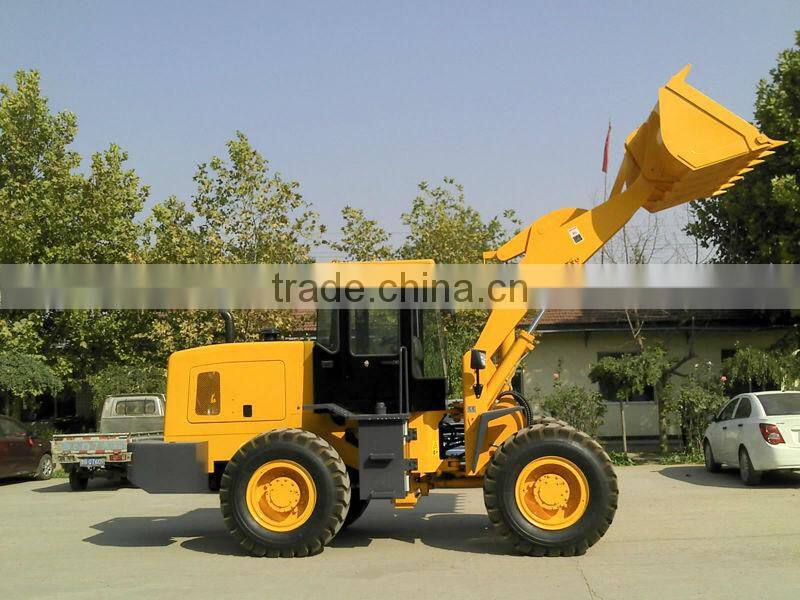

3 ton wheel loader with Deutz engine joystick
Standard Configuration of 3 ton loader | |
|

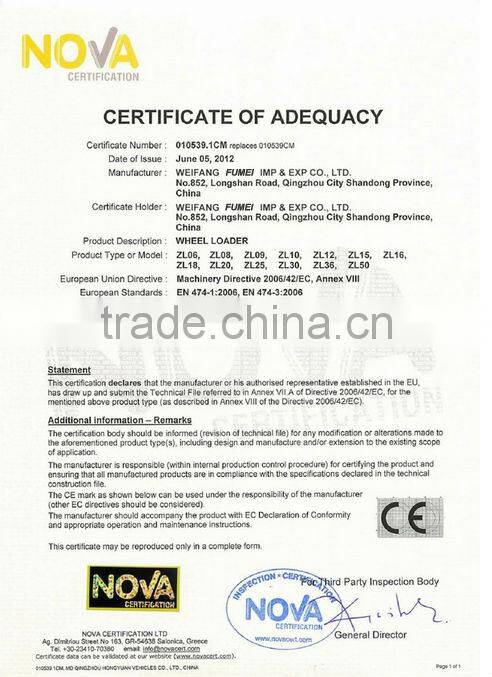

CE certification,4 wheel drive Standard bucket, 3.0 ton payload Weichai deutz TD226B,92kw engine 17.5-25 tire Big hub reduction drive axle Full hydraulic torque converter 3-way joystick Forward/reverse control on the dashboard | |
Optional of 3 ton loader | |
|

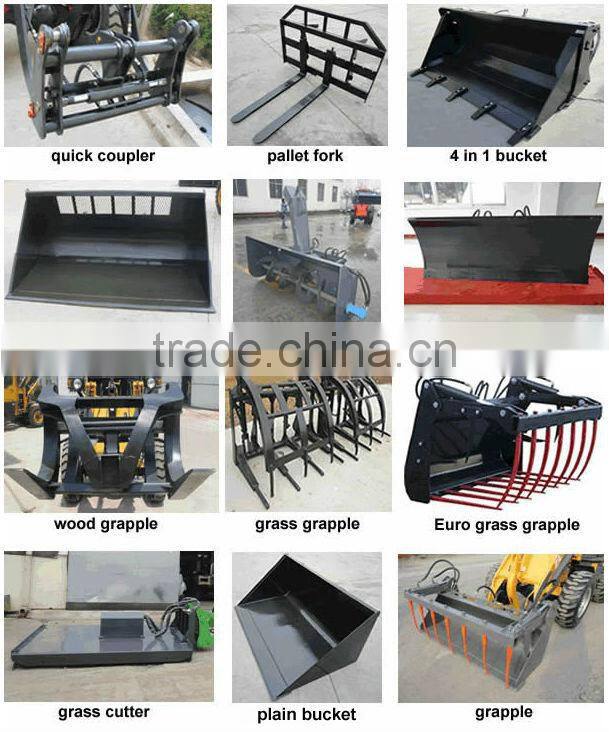

Pallet fork, wood grapple, 4 in 1 bucket Grass cutter, grass grapple, pitchfork Snow blower, snow blade, V snow blade, snow bucket Dustpan bucket, mixing bucket, sand bucket, sweeper Barrel clamp, bale clamp, grapple Anti-roll cab, LED light, reverse image system | |
Specification of 3 ton loader | |
performance | |
Loading capacity |
3000 kg |
Bucket capacity |
1.7 cbm |
Static Tilting Load At Full Steering Position |
66 KN |
Wheel base |
2760 mm |
tread |
1800 mm |
Max. Breakout Force |
120 KN |
Max. Drawing Force |
90 KN |
Max Grade ability |
30D |
Max. Dumping Height |
2950 mm |
Max. Dump Reach |
1100 mm |
Min. Ground Clearance |
370 mm |
Min. Turning Radius |
5700 mm |
Overall dimension |
6909x2400x3190 mm |
weight |
9600 kg |
Engine | |
Engine model |
Weichai Deutz TB226B Diesel Engine |
type |
Inline water cooled, four stroke |
Rated speed |
2600 rpm |
Rated power |
92 kw |
Max. Travel speed |
36 km/h |
Maximum Torque |
500 N. M |
Min Fuel-consume Ratio |
≤210g/KW.H |
Brake system | |
type |
Air Assisted Oil Disc Tire Four Wheel Brake |
tire | |
Tire size |
17.5-25 |
Front tire pressure |
343 kpa |
Rear tire pressure |
304 kpa |

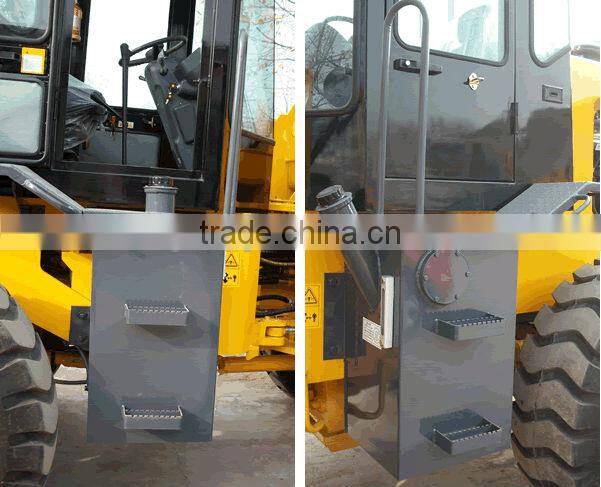

Strong structure, special designed cabin ensure better visibility

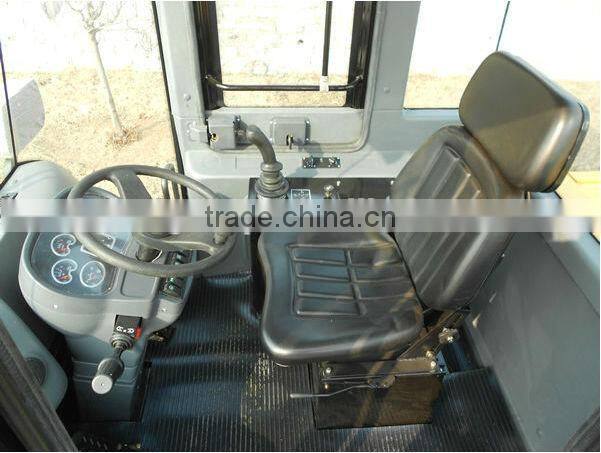

Dashboard and steering wheel, and the comfortable seat with armrest and safety belt

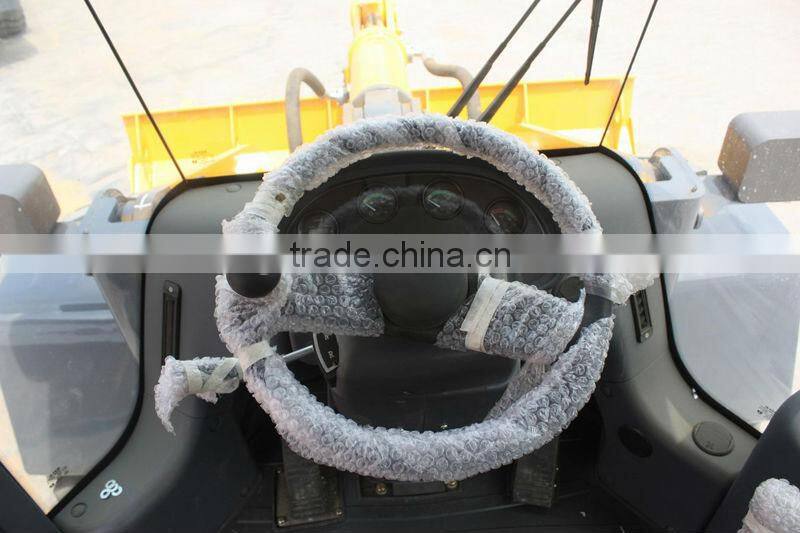

forward and reverse control on the dashboard, and advanced steering wheel

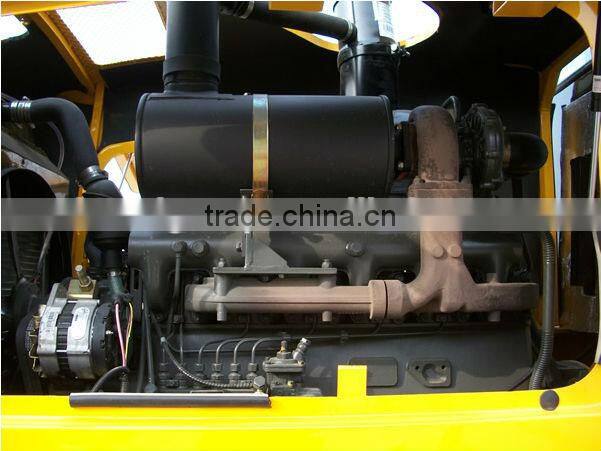

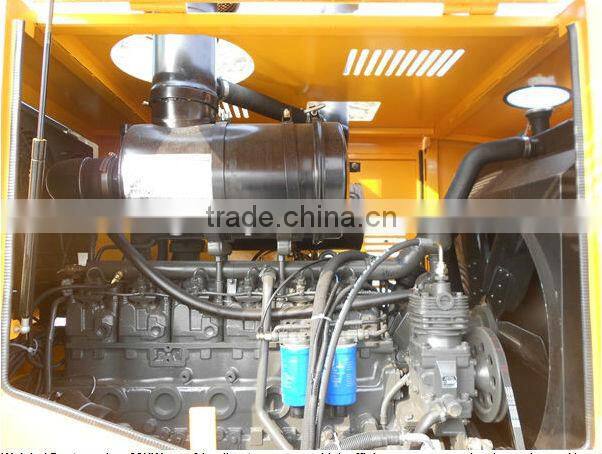

Weichai deutz, 92kw engine, Low emission and low noise, and eco-friendly
6 cylinder diesel engine

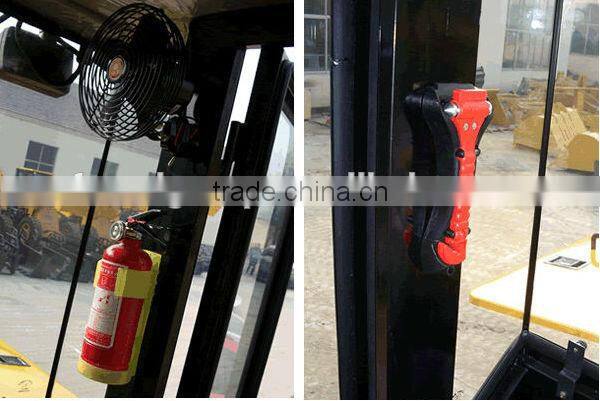

fans and fire extinguishers Safty hammer

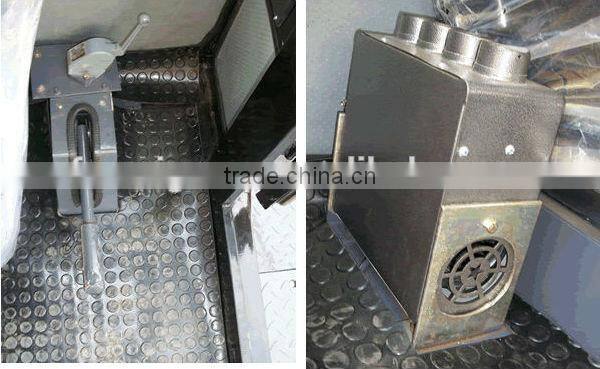

Hand brake and thick pad Heater

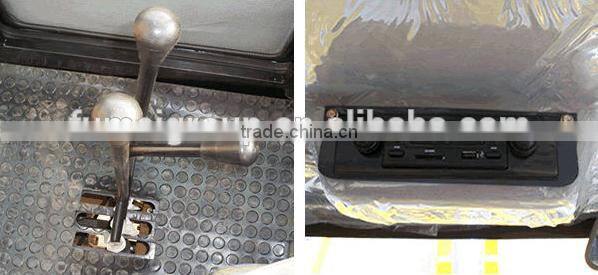

3 control levers Radio
lockable oil tank

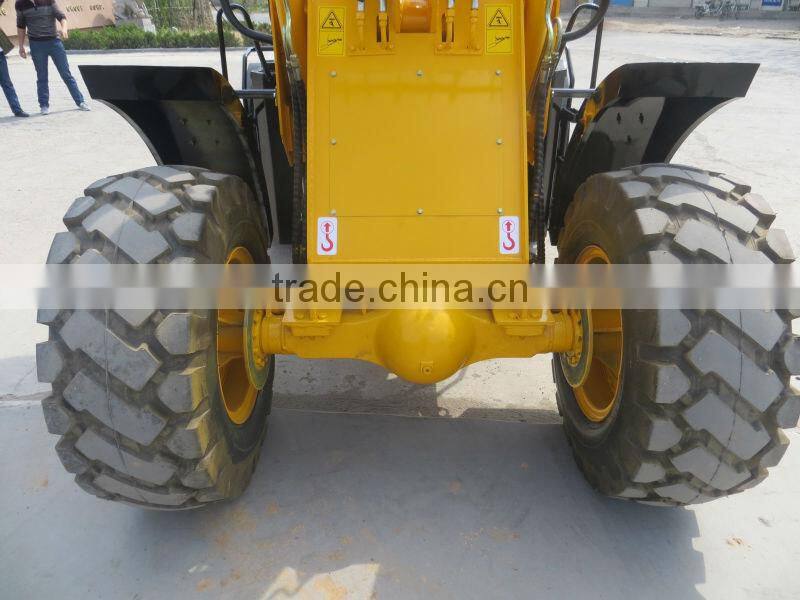

Big hub reduction drive axle
