Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > PAYLOAD HYDROSTATIC WHEEL LOADER ZL08F,ZL08F WHEEL LOADER

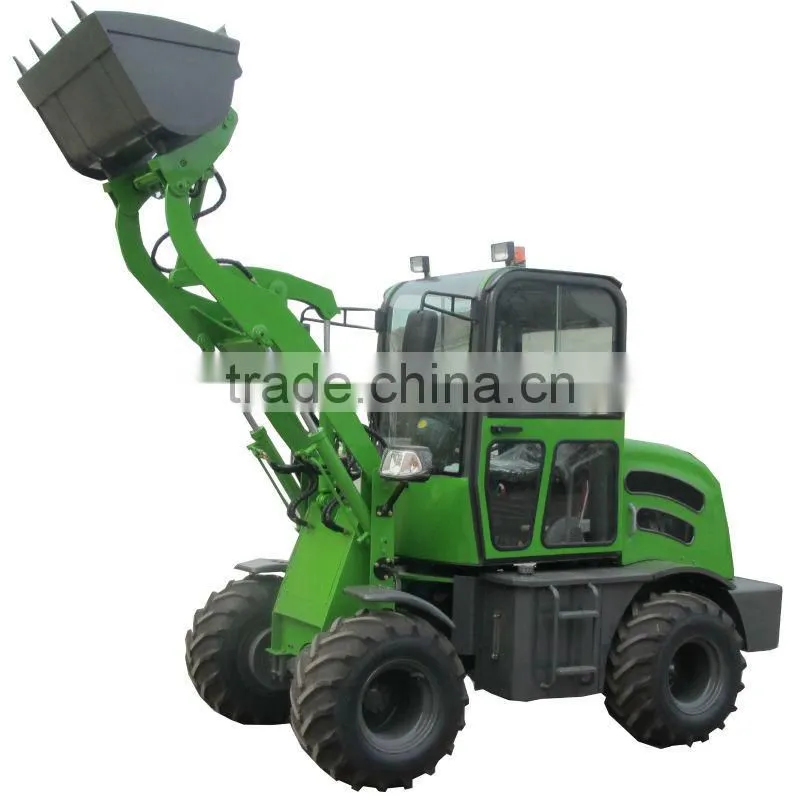

PAYLOAD HYDROSTATIC WHEEL LOADER ZL08F,ZL08F WHEEL LOADER
US$ 6,500 - 7,350
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
FM
Model Number:
ZL08F
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZL08F PAYLOAD HYDROSTATIC WHEEL LOADER WITH JOYSTICK, QUICK HITCH CE APPROVEDUS$ 6,500 - 7,350MOQ: 1 Unit -
Mini Wheel Loader Zl16f With Pallet ForkNegotiableMOQ: 1 Unit
-
Mini Loader Zl16f With Euro Iii Engine for SaleNegotiableMOQ: 1 Unit
-
Zl16f Mini Wheel LoaderUS$ 11,800 - 12,600MOQ: 1 Unit
-
Small 1.2 Ton Payload Front End Loader for SaleUS$ 9,400 - 9,700MOQ: 1 Unit
Condition
New
Brand Name
FM
Model Number
ZL08F
Place of Origin
Shandong, China
Type
Mini Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
4700x1200x2280 mm
Rated Load
800kg
Certification
CE, EPA, ISO
Warranty
13 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
ZL08F PAYLOAD HYDROSTATIC WHEEL LOADER WITH JOYSTICK,Two cyclinder engine
hydrostatic transmission
0.8 TON PAYLOAD HYDROSTATIC WHEEL LOADER WITH JOYSTICK, QUICK HITCH CE APPROVED
| Specification | |
| Rated loading weight (KG) | 800 KG |
| Rated bucket capacity (cbm) | 0.4 M3 |
| Bucket width | 1400 mm |
| Track base | 1285 mm |
| Thread | 1400/1405 mm |
| Total time | 11 s |
| Wheel base | 2100 mm |
| Min.swerve diameter | 4600 mm |
| Min.ground clearance | 240 mm |
| Dump height fully raised | 2350 mm |
| Reach fully raised | 700 mm |
| Lifting time | 4s |
| Hydraulic cycle time | 9s |
| Max.tilt angle | 30° |
| Max.bucket breakout force,lift cylinder | 28KN |
| Dricing mode | Four-wheel drive |
| Operating weight | 2400kg |
| Dimension(L×W×H) | 4700*1200*2280mm |
| Engine | |
| Engine model | CHANGCHAI CZ2102 |
| Engine type | in-line arrangement,water cooled ,one-cycle diesel Engine |
| Engine starting mode | Electric |
| Rated speed (r/min) | 2400rpm |
| Rated power (HP) | 34HP |
| Brake mode | Four-wheel hydraulic spread-shoed brake |
| Working system | |
| Distribution of work valve | DF15.2C |
| Working pump | CBF32 |
| Steering system type | Articulated hydraulic steering |
| Max turning angle | 35 degree ±1 |
| Max turning radius(mm) | 3400 |
| Steering system pressure | 10Mpa |
| Work system pressure | 16Mpa |
| Standard tyre | 650-16 |
| Loading and shippment | |
| Color | According to the requirements of customers |
| Minimum order quantity | 1Unit |
| Port | Qingdao |
| Packaging details | Nude package , 2units in 20'fcl |
| Delivery time | 15 days after confirm the order |
| Supply ability | 100units per month |
