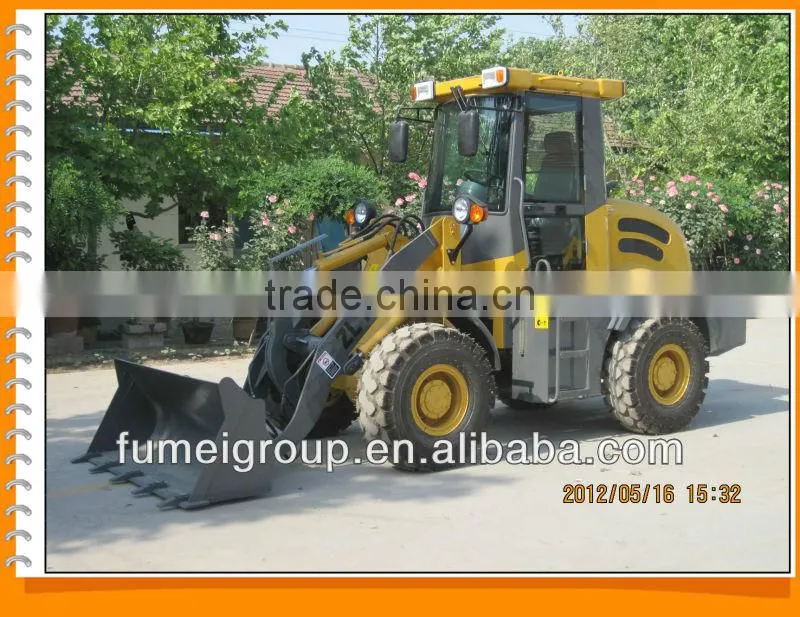

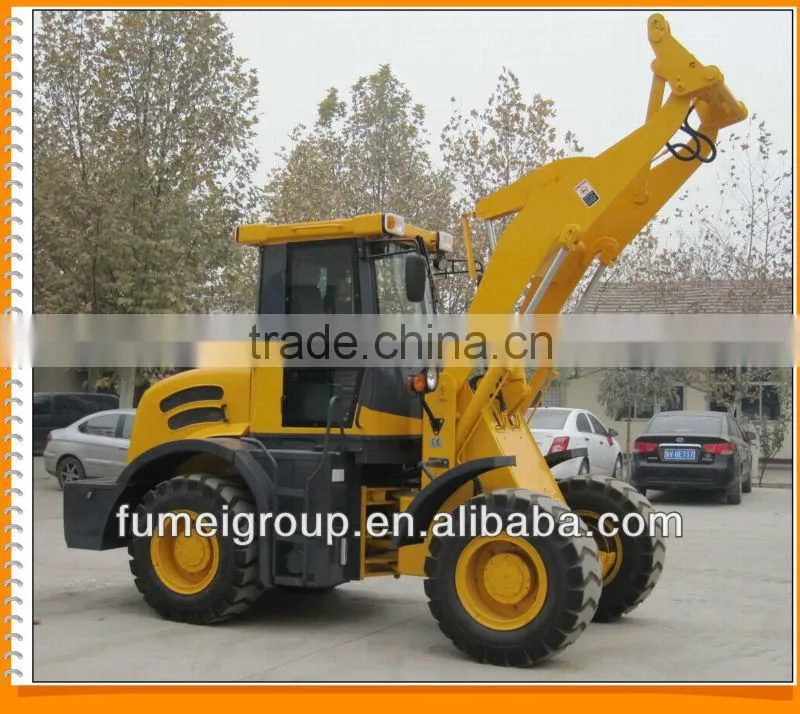

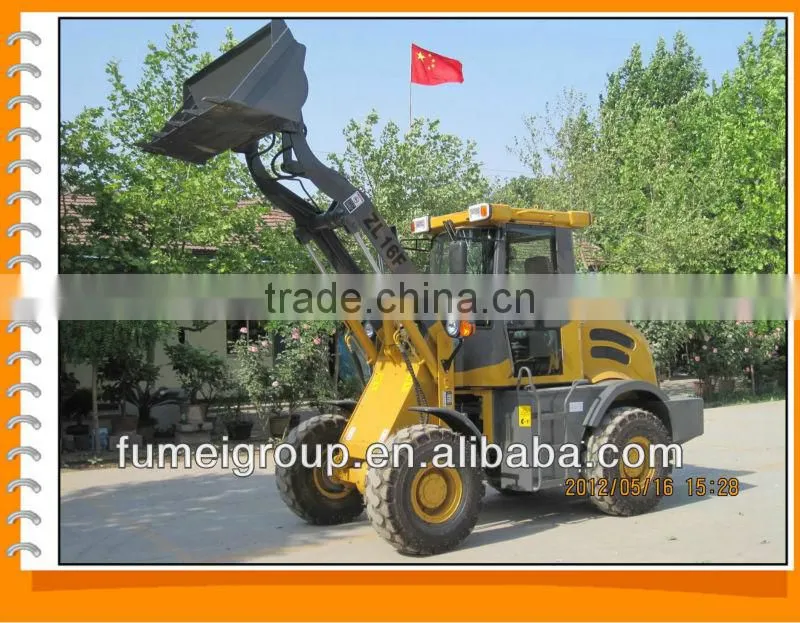

Help CenterMini Loader Zl16f With Euro Iii Engine for Sale
Related Products
-
Zl16f Mini Wheel LoaderUS$ 11,800 - 12,600MOQ: 1 Unit -
Small 1.2 Ton Payload Front End Loader for SaleUS$ 9,400 - 9,700MOQ: 1 Unit
-
Radlader Zl28f,zl28f RadladerUS$ 15,500 - 17,000MOQ: 1 Unit
-
Radlader Zl20f for Sale,zl20f RadladerNegotiableMOQ: 1 Unit
-
2ton Radlader Zl20f,joystick ,quick Hitch,pallet ForkNegotiableMOQ: 1 Unit
Specifications

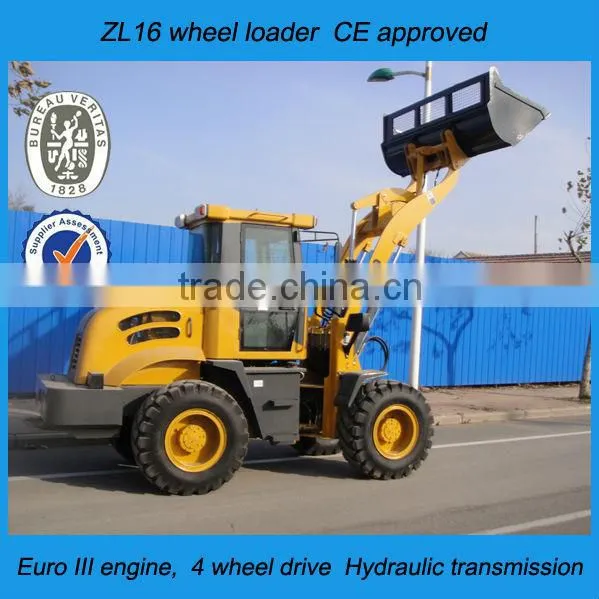

CE approved Hydraulic converterJoystick,pilot controll

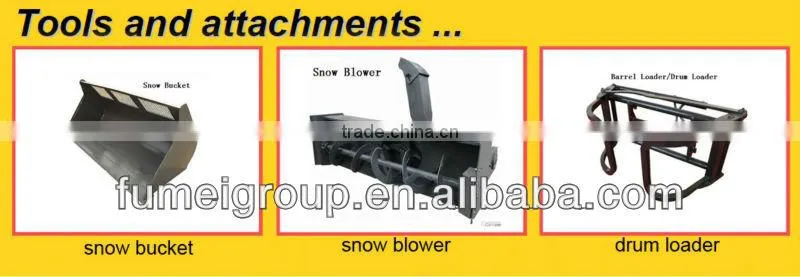

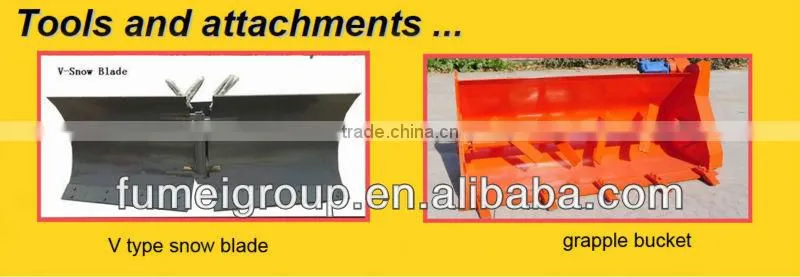

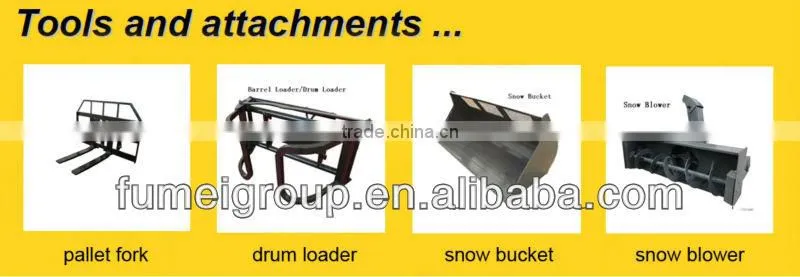

Snow bucket,V snow blade,fork,4 in 1 bucket
Engine:EURO III
Overall Dimension Wheel loader ZL16F | ||||||
1 |
Length(with bucket on ground) |
5600(mm) |
||||
2 |
Bucket width |
1800(mm) |
||||
3 |
Height(To the top of the cab) |
2700(mm) |
||||
4 |
Wheel base |
2150(mm) |
||||
5 |
Tread |
1500(mm) |
||||
6 |
Min. ground clearance |
342(mm) |
||||
Main Technical Specification | ||||||
1 |
Rated load |
1600(Kg) |
||||
2 |
Operating weight |
4600KG |
||||
3 |
Rated bucket capacity |
1.0(CBM) |
||||
4 |
Max. breakout force |
45KN |
||||
5 |
Max. dump clearance |
2750(mm) |
||||
6 |
Dump reach |
960(mm) |
||||
7 |
Dump angle at any position |
≤40 |
||||
8 |
Digging depth(with bucket bottom horizontal) |
146(mm) |
||||
|
(1) 1st gear forward |
10.00 |
||||
|
(2) 2nd gear forward |
24.00 |
||||
|
(3) 1st gear reverse |
10.00 |
||||
|
(3) 2nd gear reverse |
24.00 |
||||
Diesel engine | ||||||
1 |
Model |
XINCHAI 498BT(EURO III) |
||||
2 |
Type |
4 stroke, Inline, injection combustion chamber, 4 Cylinders Water cooling, |
||||
3 |
Rated output |
47 (KW) |
||||
4 |
Inter-bore of cylinder/stroke |
100 (mm) |
||||
5 |
Total exhaust of cylinder |
4(L) |
||||
6 |
Voltage of starting motor |
24(V) |
||||
7 |
Rated speed |
2400(r/min) |
||||
8 |
Max. Torque |
270(N.M) |
||||
9 |
Starting type |
Electric |
||||
10 |
Min. specific fuel consumption |
251(g/Kw.h) |
||||
11 |
Net weight |
360(kg) |
||||
Transmission System | ||||||
(A)Torque Converter | ||||||
1 |
Model |
265 |
||||
2 |
Type |
3-elements.single stage |
||||
3 |
Torque ratio |
3.06 |
||||
4 |
Cooling type |
Pressure oil circulating |
||||
(B)Transmission case | ||||||
1 |
Type |
power shift, spur gear constantly in mesh |
||||
2 |
Gear shift position |
2 Forward and 2 reverse gears |
||||
(C)Axle and Tire | ||||||
1 |
Type of main reducer |
spiral bevel gear, single stage |
||||
2 |
Gear ratio of main reducer |
5.83 |
||||
3 |
Type of final reducer |
Single stage planetary |
||||
4 |
Gear of ratio of final reducer |
5.6 |
||||
5 |
Gear ratio |
32.66 |
||||
6 |
Size of tire |
16/70-16(standard) or 20.5/70-16 |
||||
Working Device Hydraulic System | ||||||
1 |
Model of oil pump |
CBG 1016 |
||||
2 |
System pressure |
160(kgf/cm2) |
||||
3 |
Model of distribution valve ZS |
ZS1-L20E-F-20 |
||||
4 |
Priority-valve YX |
YX2-F160L-N |
||||
5 |
(D*L)Dimension of lifting cylinder |
φ90*50*548(mm) |
||||
6 |
(D*L)Dimension of tilting cylinder |
φ110*63*409(mm) |
||||
