Specifications
1. front end loader TZ062.with quick hitch
3.match farm tractor 604,654,704
FRONT END LOADER:

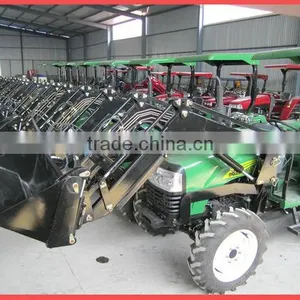

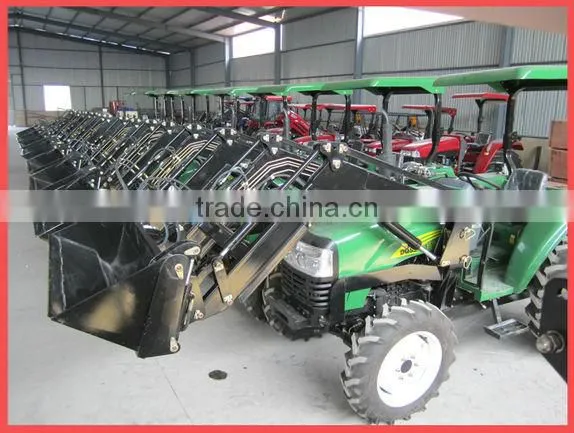

TZ06 Series Front Loader to suit for farm tractor 604 & 654&FT704
Specification&Features&Options:
· Standard level lift.
· Perfect painting and finishing in details.
· Special requests on the the size of bucket are available
· Quick release bracket and it is very easy for installation.
· Quick release attachment which can work with others Extensive implements
· 4 in 1 bucket, pallet fork and wood Grapple are available on it.
Technical Data |
TZ06 |
Max. Lift Height – Measured at Pivot Pin (mm) |
3000 |
Max. Lift height – Under Level Bucket (mm) |
2200 |
Max. Dump reach (mm) |
930 |
Dump angle (°) |
42 |
Reach with Bucket on Ground (mm) |
1950 |
Rollback angle on ground (°) |
45 |
Max. Digging depth (mm) |
110 |
Rated load (kg) |
600 |
Bucket Capacity (m3) |
0.46 |
Pallet Fork Length(mm) |
1240 |
Pallet Fork Width(mm) |
1184 |
Pallet Fork Load(kg) |
600 |
Wood Grapple Width(mm) |
1184 |
Wood Diameter/Weight(mm)/(kg) |
1000/600 |
