Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Front End Loader Match 60hp 65hp 70hp Tractor

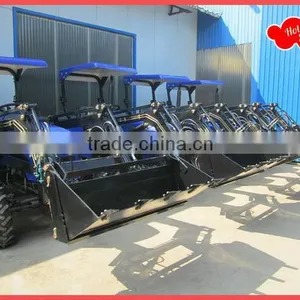

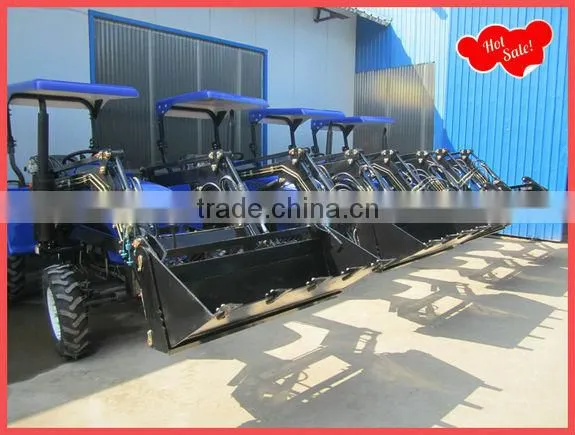

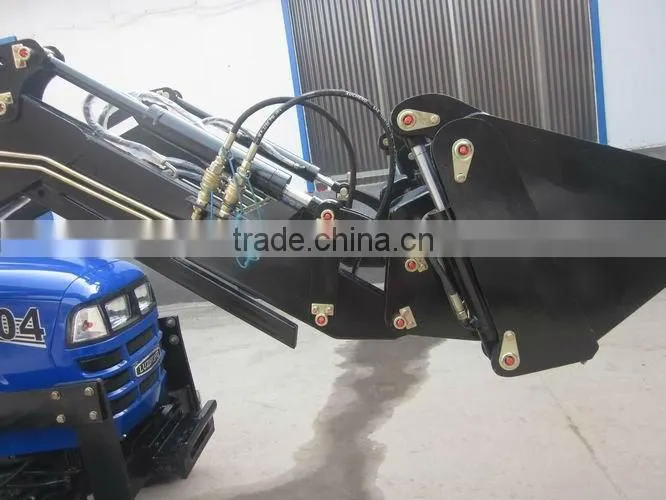

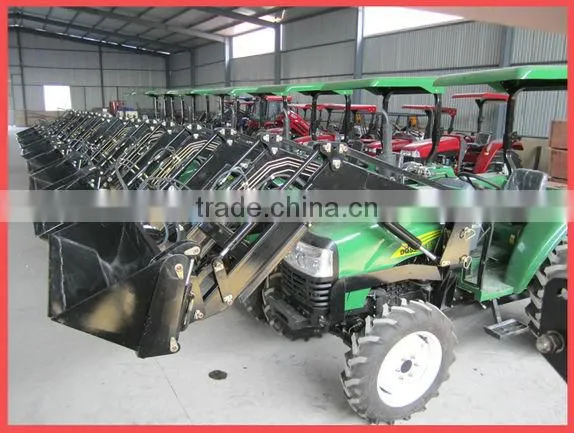

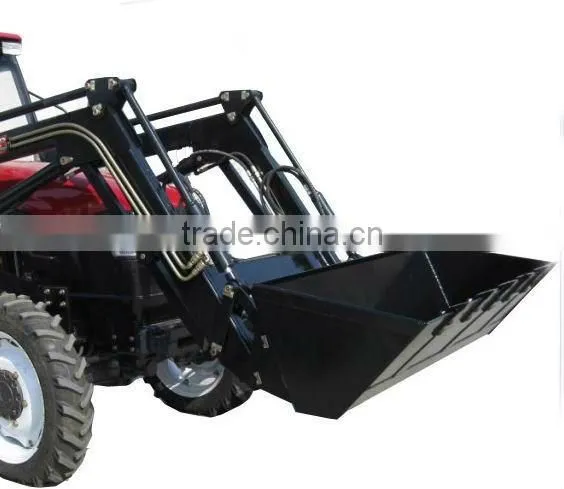

Front End Loader Match 60hp 65hp 70hp Tractor

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

TZ06

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name FM

Model Number TZ06

Place of Origin Shandong, China

Type Front Loader

Moving Type Other, farm tractor

Rated Load 600kg

Warranty 12 months

After-sales Service Provided No overseas service provided

Specifications

1. front end loader TZ06
2.with quick hitch
3.match farm tractor 604,654,704

FRONT END LOADER:

TZ06 Series Front Loader to suit for farm tractor 604 & 654&FT704

Specification&Features&Options:

· Standard level lift.

· Perfect painting and finishing in details.

· Special requests on the the size of bucket are available

· Quick release bracket and it is very easy for installation.

· Quick release attachment which can work with others Extensive implements

· 4 in 1 bucket, pallet fork and wood Grapple are available on it.

Technical Data	TZ06
Max. Lift Height – Measured at Pivot Pin (mm)	3000
Max. Lift height – Under Level Bucket (mm)	2200
Max. Dump reach (mm)	930
Dump angle (°)	42
Reach with Bucket on Ground (mm)	1950
Rollback angle on ground (°)	45
Max. Digging depth (mm)	110
Rated load (kg)	600
Bucket Capacity (m3)	0.46
Pallet Fork Length(mm)	1240
Pallet Fork Width(mm)	1184
Pallet Fork Load(kg)	600
Wood Grapple Width(mm)	1184
Wood Diameter/Weight(mm)/(kg)	1000/600
