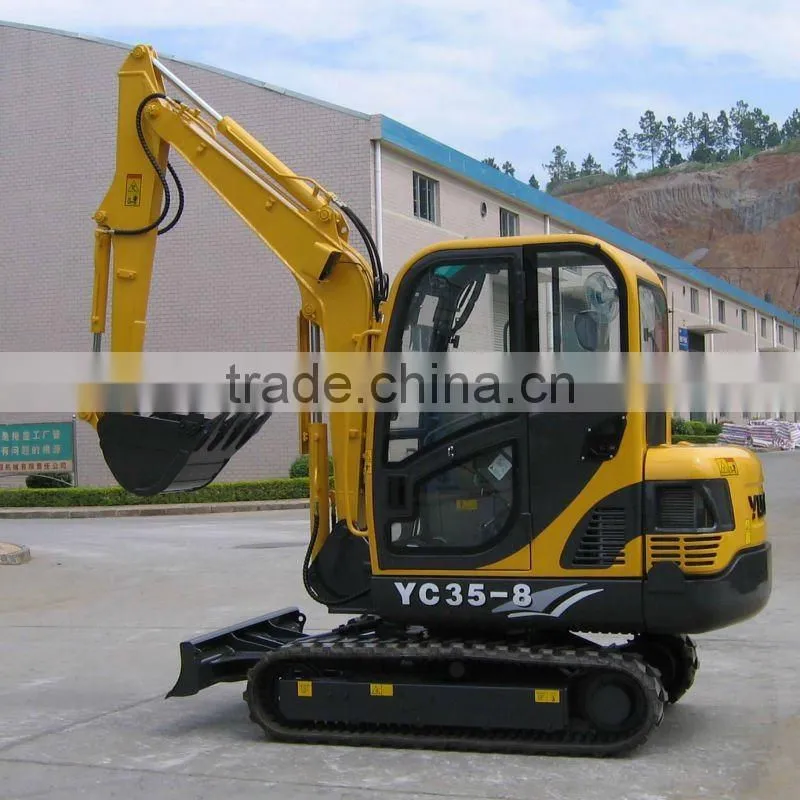

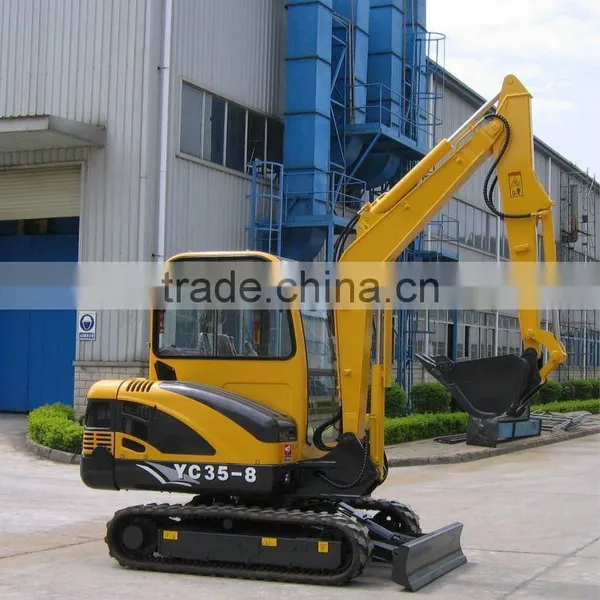

Crawler Excavator YC35-8

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

YC35-8

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name FM

Model Number YC35-8

Condition New

Moving Type Crawler Excavator

Operating Weight 4300KG

Bucket capacity 0.12CBM

Maximum Digging Height 5195mm

Maximum Digging Depth 3565mm

Machine Weight 3740KG

Max Digging Radius 360

Specifications

1.crawler excavator 35-8
2.engine:KUBOTA V2203
3.rated power:29.2KW
4.bucket capacity:0.12cbm

Basic Dimension of YC35-8

Code	Item	Units	830T
	Machine Weight	Kg	3740
	Volume of Backhoe	m³	0.12
	Engine		KUBOTA V2203
	Power of engine	KW/rpm	29.2/2200
A	Overall Length (trans pos)	mm	5250
B	Overall Height (trans pos)	mm	2470
C	Width of Undercarriage	mm	1518
D	Width of Track	mm	300 (Rubber/Steel)
E	Maximum Platform Tail Turning Radius	mm	1510
F	Length of Track	mm	2100
G	Sprocket to idler centres	mm	1620
H	Dist. between Undercarriage and Ground	mm	320
I	Dist. Between boom and ground	mm	1690
J	Width of Platform	mm	1494
K	Dist. Between Hood and Ground	mm	1385
L	Dist. Between Platform and Ground	mm	546
	Outer Width of Bucket	mm	608
	Travelling Speed (Low/High)	Km/h	2.4/4.3
	Swing Speed of Platform	rpm	11.5
	Cabin
	Canopy
	Swing boom
	Swing Angularity of the Digging Arm (L/R)	°	80/50

Range of Operation

			YC35-8
Code	Item	Units	830T
A	Maximum Digging Height	mm	5195
B	Maximum Dumping Height	mm	3615
C	Maximum Digging Depth	mm	3565
D	Maximum Digging Radius	mm	5625
D1	Maximum Digging Dist.of Ground	mm	5520
E	Maximum Height Digging Radius	mm	3265
F	Minimum Platform Tail Turning Radius	mm	2000
G	Maximum Depth for Bulldozing	mm	460
H	Maximum Height for Bulldozing	mm	210
	Maximum Digging Force	kN	22.2
