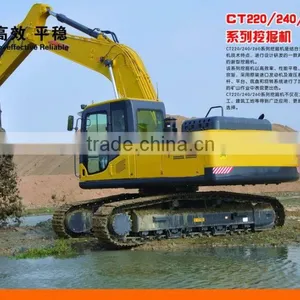

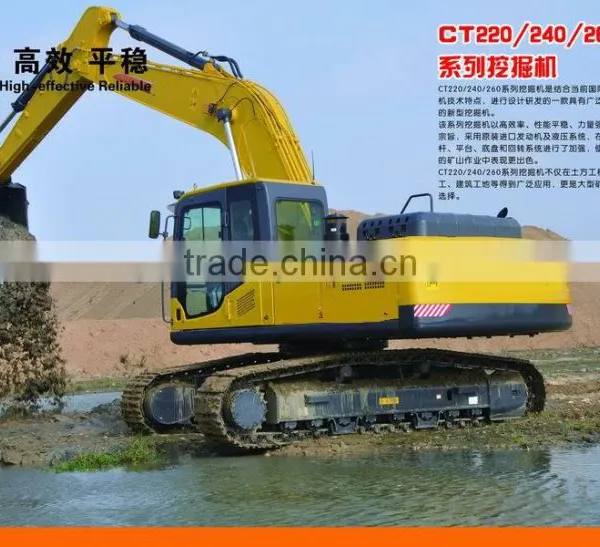

24ton Excavator CT240-7A CE Certificate,construction Machine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

CT240-7A

Weifang Fumei Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name CT

Model Number CT240-7A

Condition New

Moving Type Crawler Excavator

Operating Weight 23600KG

Bucket capacity 0.92CBM

Maximum Digging Height 9980mm

Maximum Digging Depth 6257mm

Machine Weight 23600kg

Max Digging Radius 10240mm

Rated Speed 5.5km/3.1H

Certification CE

After-sales Service Provided Overseas third-party support available

Specifications

1.crawler excavator CT240-7A
2.engine:Cummins 6B5.9
3.rated power:133KW
4.bucket capacity:0.92cbm

Specification of CT240-7A/CT240-8C excavator with cabin

CT240-7A/CT240-8c
Operate weight kg		23600
Bucket capacity M3		0.92
CT240-7A	Engine model	Cummins 6B5.9
	Engine power (kw)	133kw/2000rpm
CT240-8C	Engine model	ISUZU 6BG1TRP-02
	Engine power (kw)	125kw/2100rpm
Ground pressure (Kpa)		45
Travel speed (km/h)		5.5/3.1
Gradeability (°)		35
Arm digging force (KN)		191
Fuel tank capacity(L)		410
Hydraulic tank capacity(L)		230
Main dimensions
Upperstrcuture witdth (mm)		2700
Undercarriage width (mm)		2980
Cabinet hight (mm)		3010
Rear swing radius (mm)		2940
Track gauge (mm)		2380
Ground clearance (mm)		1045
Working range
Max.digging reach (mm)		10240
Max.digging depth (mm)		6527
Max.digging height (mm)		9980
Max.dumping height (mm)		7170
Max.vertical wall digging depth (mm)		6140
Min,swing radius (mm)		3404
Standard Equipment CT240-7A
Japanese Kawasaki main pump
US Parker valve
Seiko made Swing motor Seiko
Korea Doosan made Travel motor
Italian valve ,pilot control lever
Standard Equipment CT240-8C
Japanese Kawasaki main pump
Japanese KYB valve, Travel motor
Italian valve ,pilot control lever
