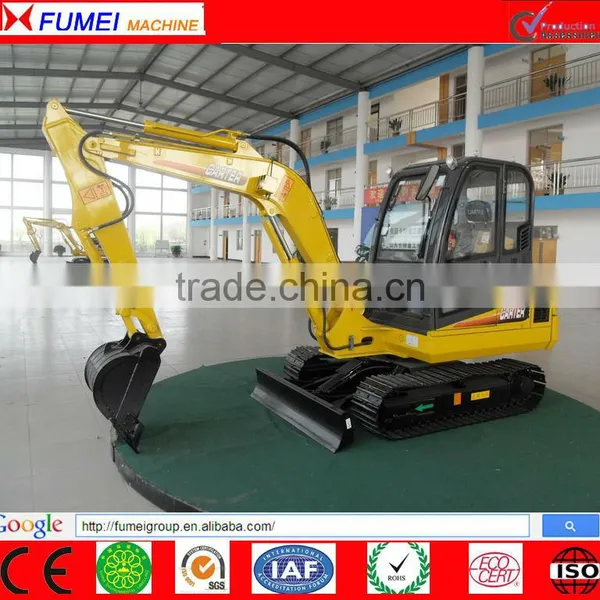

4.5Ton CE approved crawl excavator
- 300 Unit / Units per Month
- Qingdao port
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | Carter | Model Number: | CT45 |
Condition: | New | Moving Type: | Crawler Excavator | Operating Weight: | 4200kg |
Bucket capacity: | 0.17CBM, 0.065-0.23 CBM | Maximum Digging Height: | 5030 mm | Maximum Digging Depth: | 3405 mm |
Machine Weight: | 4200 kg | Max Digging Radius: | 5530 mm | Rated Speed: | 4.4 km/h |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
CT45-7B with CE crawler excavator1.Engine: YANMAR 4TNV88
2.Emission: Euro III
3.Capacity: 4.5tons
ENGINE | |
Engine Model | YANMAR 4TNV88 |
Engine power | 27KW |
WEIGHT: | |
Operating weight: | 4200KG |
CAPACITY | |
Bucket capacity: | 0.17m3 |
DIMENSIONS | |
Upperstructure width (mm) | 1600 |
Undercarriage width (mm) | 1750 |
Cabinet height (mm) | 2455 |
Rear swing radius (mm) | 1600 |
Ground clearance (mm) | 350 |
Clearance under counter weight(mm) | 585 |
Tumbler distance(mm) | 1710 |
Overall length for transportation(mm) | 5500 |
Max. digging radius at ground level(mm) | 5420 |
Max vertical digging depth(mm) | 2900 |
Max. digging radius (mm) | 5530 |
Max. digging depth (mm) | 3405 |
Max. digging height (mm) | 5030 |
Max. dumping height (mm) | 3410 |
Max. dozer cutting depth (mm) | 380 |
Max. dozer lifting height (mm) | 255 |
HYDRAULIC SYSTEM | |
Main pump | Japan made KYB main pump |
Flow /pressure: | 10.8L/min 2200RPM/4.9MPA |
Working attachments: | Boom/Arm/Bucket |
Overload pressure: | 24.5MPa |
PARAMETERS | |
Swing speed: | 11RPM |
Travel speed: | 4.4/2.7km/h |
Tracking force: | 34.1KN |
Gradeability: | 30(58%) |
Bucket digging force: | 23.7KN |
Arm digging force: | 20.4KN |
Rubber/Steel tracks: Bridgestone Travel motor
The standard rubber track lets you work on multiple Imported Japan made KYB Travel motor.
surfaces such as grass, pavement or stone without
damaging the surface or machine.
Full open engine cover: YANMAR engine
The full open engine cover can be fully opened and is Imported YANMAR 4TNV88 27KW/2200rpm engine
easy for maintenance.
Main pump Simple Dozer Control with Float Function
Imported Japan made KYB Main pump
Digital monitor Swing cylinder
Gives the operator full function display with on-line
inspection.
Imported multi-circuit valve
