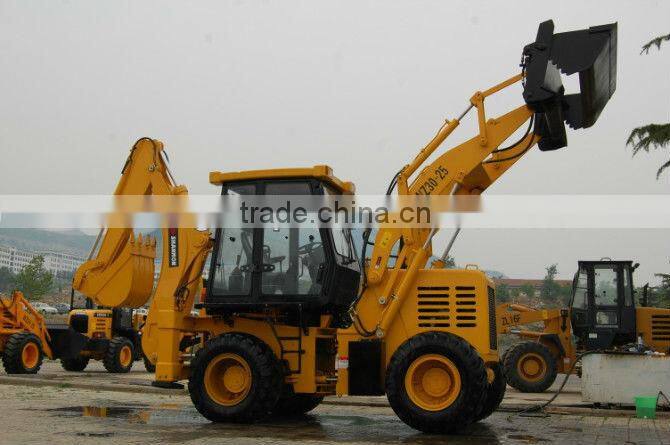

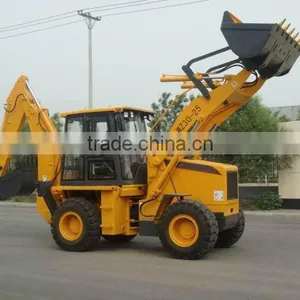

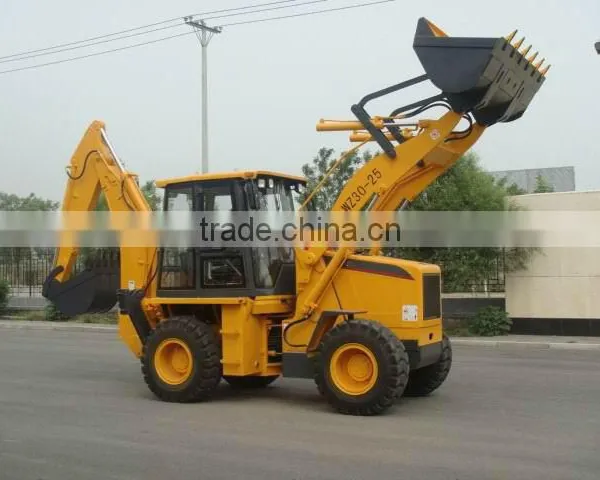

Help CenterMini Backhoe,3 Point Hitch Backhoe Wz30-25
Related Products
-
Towable Backhoe Wz30-25NegotiableMOQ: 1 Unit -
Professional Farm Tractor With Backhoe LoaderNegotiableMOQ: 1 Unit
-
CE Sideshift Backhoe for Tractor (Foton)NegotiableMOQ: 1 Unit
-
Mini Tractor Loader With BackhoeNegotiableMOQ: 1 Unit
-
CE Approve Backhoe Loader Wz30-25 With ce Approve Cummins EngineNegotiableMOQ: 1 Unit
Specifications
1)YTR4108G60-12)Power: 55 KW
3)Weight:7600KG
Whole Operation Weight |
7640KG |
Final Reducer |
Single Stage Final Reducer |
Transport Dimension |
|
Rated Loader of Axle |
7.5t |
mm L*W*H |
5910×2268×3760 |
Transmission System |
|
Wheel base |
2250mm |
Torque Converter |
|
Min. Ground Clearance |
300mm |
Model |
YJ280 |
Bucket Capacity |
1.0m3 |
Type |
Single-stage Three Elements |
Breakout Force |
38KN |
Max. Efficiency |
84.4% |
Loading Lifting Capacity |
2500KG |
Inlet Pressure |
0.4Mpa—0.55 Mpa |
Bucket Dumping Height |
2742mm |
Outlet Pressure |
1.2Mpa—1.5 Mpa |
Bucket Dumping Distance |
1062mm |
Cooling Method |
Oil-cooling Pressure Circulation |
Digging Depth |
52mm |
Gearbox |
|
Backhoe Capacity |
0.3 m3 |
Type |
Fixed Shaft Power Transmission |
Max. Digging Depth |
4082mm |
Oil Pressure of Clutch |
1373Kpa—1569 Kpa |
Swing Angle of Excavator Grab |
190o |
Gears |
Two Gears Ahead, Two Gears Astern |
Max. Pulling Force |
39KN |
Max.Speed |
22Km/h |

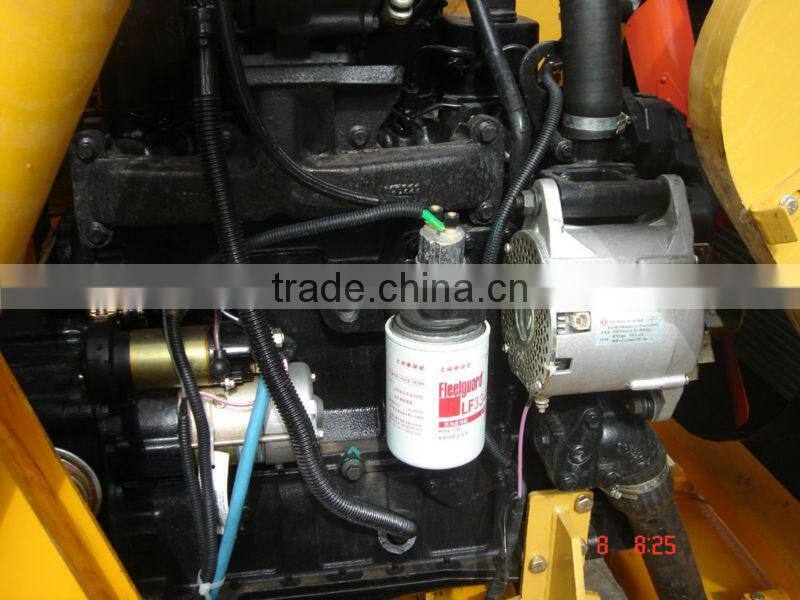

Engine |
|
Tyre |
|
Model |
YTR4108G60-1 |
Model |
16/70-20 |
Type |
In Line Direct injection Four-Stroke and Injection Combustion Chamber |
Pressure of Front wheel |
0.22 Mpa |
Cylinder-Inside Diameter*Stroke |
4-108×120 |
Pressure of Back Wheel |
0.22 Mpa |
Rated Power |
55KW |
Brake System |
|
Rated Speed |
2400r/min |
Service Brake |
Air Over Oil Caliper Brake |
Min. Fuel Consumption |
≤216g/kw.h |
External Type |
|
Max.Torque |
≥261.7N.M/1800r/min |
Self-regulation |
|
Displacement |
4.4L |
Self-balance |
|
Steering System |
|
Emergency Brake |
Operation Power Implementing brake |
Model of Steering Device |
BZZ5-250 |
Manual Operation Power Terminating Brake |
|
Steering Angle |
±36 o |
Hydraulic System |
|
Min. turning radius |
5018mm |
Digging Power of Excavator Grab |
46.5KN |
Pressure of the system |
12Mpa |
Digging Power of Dipper |
31KN |
Axle |
|
Bucket Lifting Time |
5.4S |
Manufacturer |
Feicheng Axle Factory |
Bucket Lowering Time |
3.1S |
Main Transmission Type |
Double Reduction |
Bucket Discharge Time |
2.0S |
PRODUCT SHOW
DETAILS
