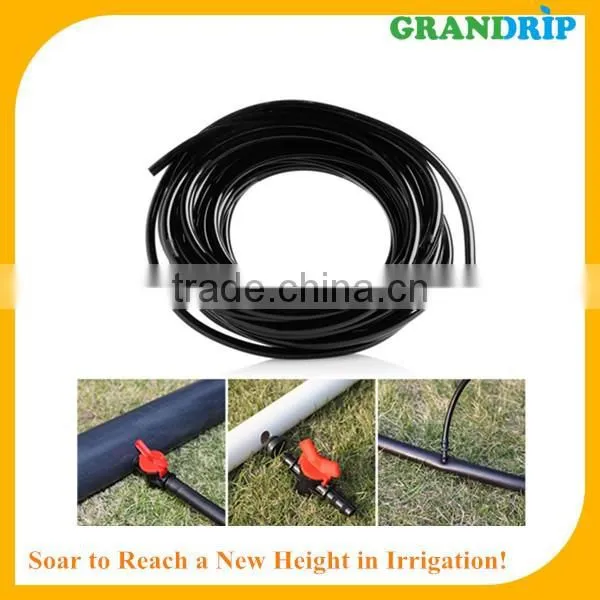

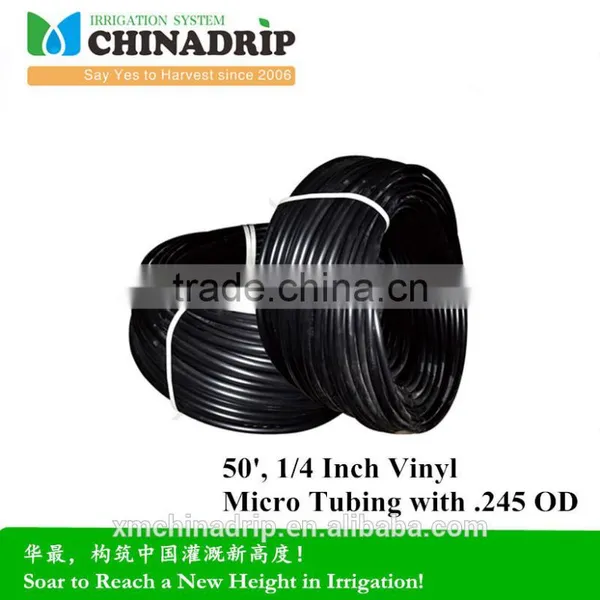

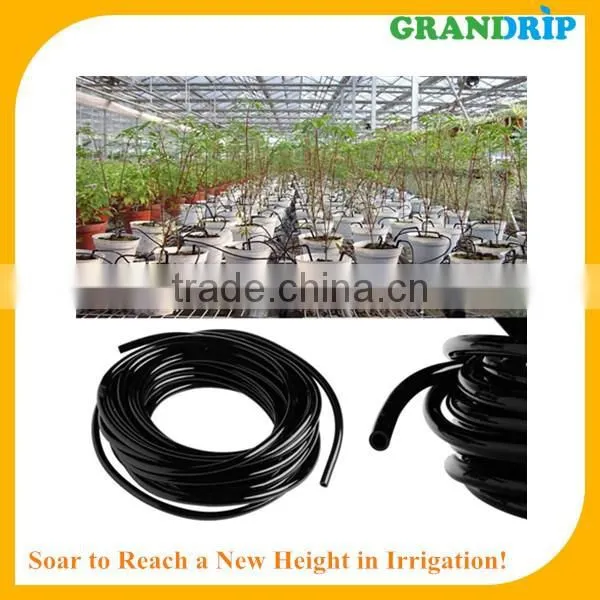

Drip Irrigation 1/4 Inch Vinyl Micro Tubing With .245 OD
US$ 0.02 - 0.02
MOQ: 2000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Chinadrip
Model Number:
GD0116
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Drip Irrigation 1000', 1/8" Vinyl Micro Tubing With .118 ID x .187 ODUS$ 0.8583 - 0.8583MOQ: 1 Carton -
Farms Drip Irrigation System Irrigation ProductsUS$ 0.129 - 0.129MOQ: 1 Bag
-
Drip Irrigation 3/4" FNPT x 1/2" (16 Mm) Barbed Ball ValveUS$ 0.1898 - 0.1898MOQ: 10 Pieces
-
Multi-Purpose 1/2 Inch (16 Mm) Barbed Ball ValveUS$ 1.39 - 1.39MOQ: 1 Bag
-
Drip Irrigation Flush Valve With 3/4" FHTUS$ 0.139 - 0.139MOQ: 10 Pieces
Place of Origin
Fujian, China
Brand Name
Chinadrip
Model Number
GD0116
Material
Plastic
Product Description
SPECIFICATION
- Size: 1/4 inch, .156 ID x .245 OD
- Length: 50’
- Maximum operating pressure: up to 30 PSI
- Color code: black
- Maximum flow rate: .15 GPM (9 GPH) with a head loss of 6.1 PSI
- Bending radius: 1 foot
- Manufacturer ‘s warranty: Five year limited warranty
- Material: UV protected premium resin
FEATURES
- Available in 50, 100, 500, 1000, and 3000 foot coils
- Interchangeable with other manufacturers’ brands of the same ID micro tubing
- Use with 1/4 inch barbed fittings
- Softer, more flexible, and easier to use than poly micro tubing
- Meets the demands of micro irrigation systems for above or below the ground installations
- Available in black or brown color
- Made of commercial grade vinyl resin
- Outstanding environmental stress resistance
- UV protected
DESCRIPTION
The vinyl micro tubing is used primarily as the feeder line in the installation of drip irrigation or low volume irrigation systems. The vinyl micro tubing is used as feeder lines from the ½ inch drip tubing to extend drip emitters or micro sprinklers to the plants, as extensions from the 4, 6, and 12-outlet drip manifolds, or as the supply line for a complete ¼ inch drip system. The Drip Store’s 1/4 inch vinyl micro tubing is flexible and relatively soft and is available from DIG with .245 OD in 50, 100, 500, 1000 and 3000 foot coils.
APPLICATIONS
- The basic use of the ¼ inch micro tubing is as a feeder line from the 1/2" drip tubing to drip emitters or micro sprinklers, to extend from a 12-outlet drip manifold, or as part of a complete system using the ¼ inch as the main lateral. The micro tubing may be installed above the ground and covered with mulch to blend with the landscape, or extended from the ½ inch drip tubing and installed below the ground. The micro tubing is available in vinyl or low-density polyethylene; the vinyl is softer than polyethylene and both are made from high quality resin with added carbon black compounds.
