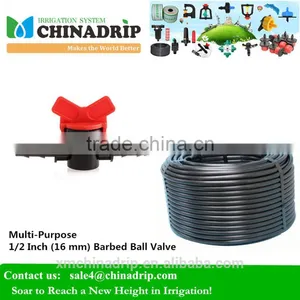

Help CenterMulti-Purpose 1/2 Inch (16 Mm) Barbed Ball Valve
Related Products
-
Drip Irrigation Flush Valve With 3/4" FHTUS$ 0.139 - 0.139MOQ: 10 Pieces -
Drip Irrigation SR0116 1/2" Ratchet ClampsUS$ 1.5 - 1.5MOQ: 1 Bag
-
ChinaDrip Irrigation Professional Gun PunchUS$ 0.656 - 0.656MOQ: 10 Pieces
-
Chinadrip Irrigation Punch With 8 Hole mm 1/2" Starter Barbed ConnectorsUS$ 0.662 - 0.662MOQ: 10 Pieces
-
Drip Irrigation Palm Punch for 1/8" Micro TubingUS$ 1.904 - 1.904MOQ: 1 Piece
Durability Matters.
Applications:
Benefits:
SPECIFICATION
• Recommended operating pressure: up to 35 PSI
• Temperature range: up to 120 degrees F
• Connection: ½ inch (16 mm with .500 to .530 ID) barbed inlet and outlet
• Materials: high impact plastic
FEATURES
• The multi-purpose barbed ball valve is used to adjust, balance, or as a shut off valve
• Easy to install
• Smooth opening and closing with lower pressure loss
• For secure and easy installation without glue or clamps
• Low-torque handle
• Fits all ½ inch drip tubing and drip line with .500 to .530 ID
• Large inside diameter for maximum flow
• Constructed of non-corrosive materials
• Exhibits outstanding environmental stress-cracking resistance; UV protected
DESCRIPTION

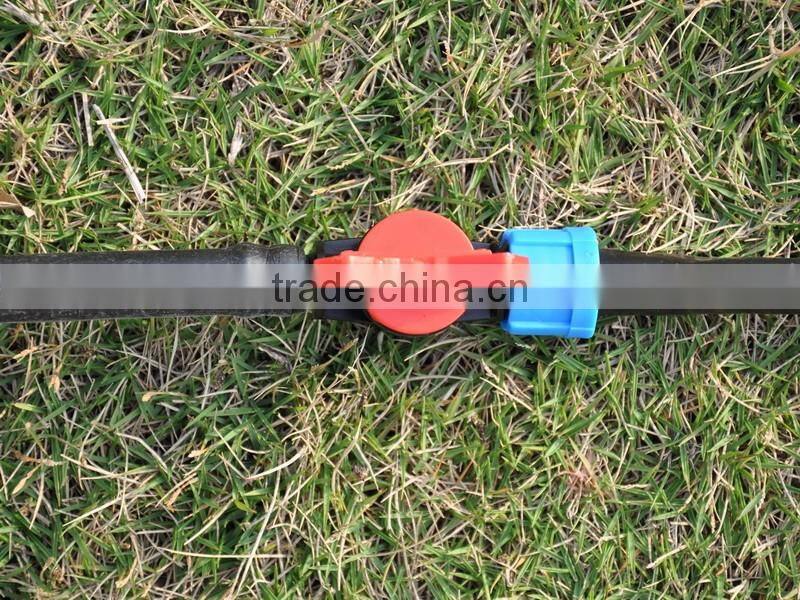

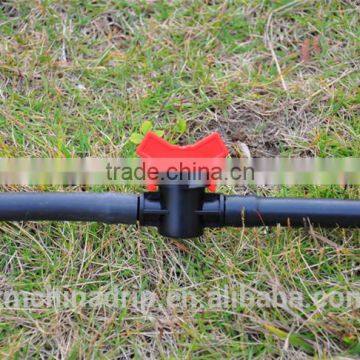

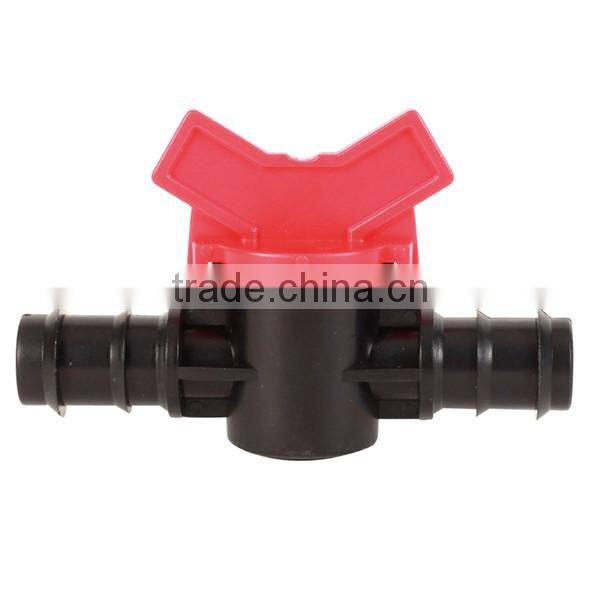

The Multi-Purpose 1/2 Inch (16 mm) Barbed Ball Valve is used as a on/off valve for drip tubing, or ½ inch drip line lateral with inside diameter of .500 to .530 ID . The Multi-Purpose 1/2 Inch Barbed Ball Valve can also be used to adjust and balance the flow of an individual drip line. Make sure to choose the correct model of barbed ball valve to fit the right size of the drip tubing and drip line used.>
APPLICATIONS
The model A117 Multi-Purpose 1/2 Inch (16mm) Barbed Ball Valve is connected to 1/2 inch (16 mm) drip tubing or drip line with .500 to .530 ID and used as a shut-off valve for an individual line of drip tubing and drip line.
INSTRUCTION
Installation Recommendations
The Multi-Purpose ½ inch (16 mm) Barbed Ball Valve model A117 (pack of 1) is used for control of drip tubing or drip line lateral and as a shut-off valve.
- To install the 1/2 inch multi-purpose barbed ball valve, cut the drip tubing or drip line with a hand pruner, being careful to keep dirt from entering the line.
- Hold the barbed ball valve in one hand and the drip tubing or drip line in the other and force the drip tubing over the barb by wiggling it from side to side.
- Make sure that the drip tubing or the drip line is pushed over the barb for a very tight fit. No glue or clamps are required.
Chinadrip is one of the leading professional irrigation system manufacturer and service provider in China.
Being experienced in manufacturing and quality control, we supply a wide range of irrigation products to over 50 countries worldwide.
Our products include drip irrigation system and its related fittings, which are manufactured by advanced technology and materials of good quality applied widely in agriculture irrigation, landscape, family garden, sports facility and so no.
Grandrip has been training a team of professional staffs in design, technology, sales, customers’ services and quality control in the past 8 years. We are a group with strong integration who work toward the same goal: To provide for our customers the best services possible with the up-to-date technology support while maintaining our integrity and friendliness.
Our Mission:
To satisfy our customers with well-rounded services
To strengthen our products with state-of-the-art technology
To collaborate with our partners on the basis of mutual benefit
