Lower power consumption fresh air unit 6000 m3/h liquid desiccant air conditioning
Introduction
Liquid desiccant air conditioning with purified air function can be widely applied in air conditioning system which allow heat recovery, such as fresh air treatment for office, R&D building, transportation hubs, exhibition centre, hotels, apartment, hospital, and factories, ect; especially suitable for independent temperature and humidity control air conditioning system combined with other dry-table and equipment.
Application
Specification
Model (Txx-xx) |
03 |
04 |
05 |
06 |
08 |
10 |
12 |
15 |
20 |
|
Power Source |
3PH-380V-50Hz |
|||||||||
Fresh Air Rate |
m3/h |
3000 |
4000 |
5000 |
6000 |
8000 |
10000 |
12000 |
15000 |
20000 |
Cooling Capacity |
kW |
65 |
85 |
108 |
128 |
172 |
215 |
255 |
325 |
430 |
Dehumidification |
kg/h |
65 |
85 |
108 |
128 |
172 |
215 |
255 |
325 |
430 |
Heating |
kW |
40 |
55 |
70 |
85 |
110 |
140 |
170 |
210 |
280 |
Moisture |
kg/h |
20 |
25 |
30 |
40 |
50 |
65 |
80 |
100 |
130 |
Power |
kW |
13.6 |
17.5 |
23.2 |
27.2 |
36.9 |
45.8 |
54.0 |
67.8 |
90.2 |
Noise |
dB(A) |
61 |
61 |
62 |
62 |
63 |
63 |
63 |
63 |
64 |
Compressor type |
Full Closed Scroll Compressor |
|||||||||
Throttle type |
The Balance Type Thermal Expansion Valve |
|||||||||
Refrigerant type |
R22/R407C |
|||||||||
Filtration grade |
Primary (G4) |
|||||||||
Supply/Exhaust air type |
The Outer Rotor Centrifugal Fan |
|||||||||
over-bottom pressure |
Pa |
150 |
150 |
180 |
180 |
210 |
240 |
250 |
300 |
350 |
Weight |
kg |
2050 |
2200 |
2650 |
3080 |
3580 |
4350 |
5250 |
6010 |
6820 |
Notes: 1.Nominal cooling and dehumidification working conditions: fresh air dry bulb temperature 36℃, relative humidity 60%,; returned air dry bulb temperature 26℃, relative humidity 60%; supply air dry bulb temperature 18℃, wet bulb temperature 13.3℃. 2. Nominal heating and humidification working conditions: fresh air dry bulb temperature -5℃, relative humidity 50%,;returned air dry bulb temperature 20℃, relative humidity 50%; supply air dry bulb temperature 18℃, wet bulb temperature 13.7 3. The above section and setting are only for reference. Please choose and adjust based on actual project requirement, or provided y customer.
Dimension Drawing

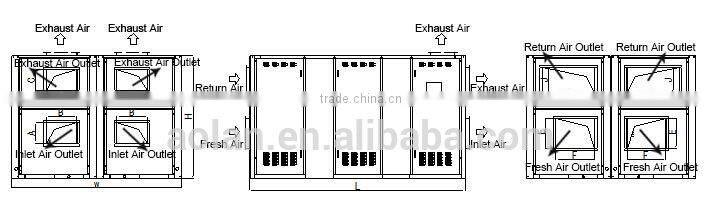

1,AHLD-Txx-03,04,05,06,08,10,12

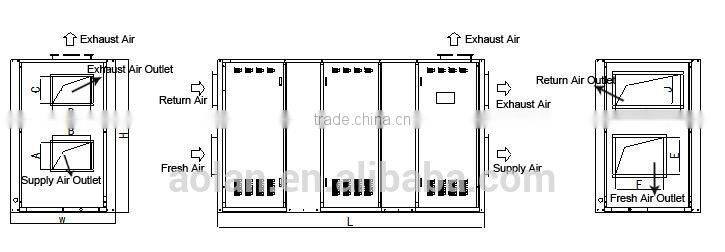

2,AHLD-Txx-15,20
Model (Txx-xx) |
03 |
04 |
05 |
06 |
08 |
10 |
12 |
15 |
20 |
||
L |
mm |
3000 |
3000 |
3100 |
3100 |
3200 |
3200 |
3400 |
3200 |
3200 |
|
W |
mm |
1400 |
1400 |
1850 |
1850 |
2250 |
2250 |
2250 |
4800 |
4800 |
|
H |
mm |
2200 |
2250 |
2400 |
2400 |
2400 |
2550 |
2800 |
2400 |
2550 |
|
Supply Air Outlet |
A |
mm |
310 |
363 |
406 |
406 |
467 |
467 |
467 |
496 |
496 |
B |
mm |
275 |
275 |
338 |
338 |
420 |
420 |
420 |
445 |
445 |
|
Amount |
1 |
2 |
|||||||||
Exhaust Air Outlet |
C |
mm |
310 |
363 |
406 |
406 |
467 |
467 |
467 |
496 |
496 |
D |
mm |
275 |
275 |
338 |
338 |
420 |
420 |
420 |
445 |
445 |
|
Amount |
1 |
2 |
|||||||||
Fresh Air Outlet |
E |
mm |
700 |
700 |
900 |
900 |
1300 |
1300 |
1300 |
1300 |
1300 |
F |
mm |
550 |
650 |
550 |
700 |
700 |
800 |
900 |
700 |
800 |
|
Amount |
1 |
2 |
|||||||||
Return Air Outlet |
J |
mm |
1100 |
1100 |
1500 |
1500 |
1900 |
1900 |
1500 |
1900 |
1900 |
K |
mm |
350 |
450 |
450 |
500 |
500 |
550 |
650 |
500 |
550 |
|
Amount |
1 |
2 |
|||||||||
Note:As our products are improved continuously, specifications in the tables are subject to change without notice.
