high efficiency liquid dessicant normal temperature dehumidification dryer units
- 200 Unit / Units per Month
- Fuzhou
- T/T
- Crossflow plate fin heat exchangers air cooled heat exchanger
- High efficiency heat and energy recovery exhaust ventilation system
- Portable air fresher cooler ventilators
- Night free cooling air fresher cooler ventilators
- Summber by-pass energy saving air fresher cooler ventilators
- Plate heat exchanger recuperator air fresher cooler ventilators
Product Details
Condition: | New | Type: | Evaporative Air Cooler | Place of Origin: | Fujian, China |
Brand Name: | Aolan | Model Number: | 5 | Operating Voltage: | Other, 220V |
Mounting: | Floor Standing | Certification: | Other | After-sales Service Provided: | No overseas service provided |
Product Description
Power source 3PH-380V-50Hz refrigerant R22/R407C normal temperature dehumidification dryer units
Introduction
Normal temperature dehumidification dryer units is based on deep dehumidification cooling units. It uses its own heat to reheat the supply air which further enhances the air absorption ability.
Application
Outdoor Environment Temperature:-5℃-40℃;
Indoor Relative Humidity:15%-30%;

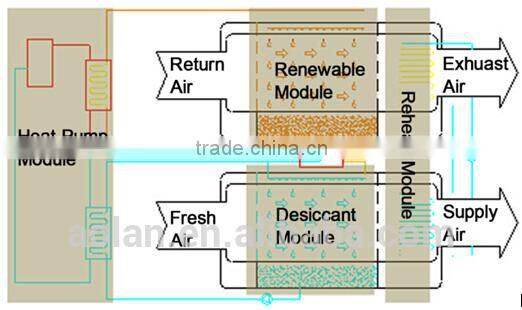

Working Principle
Features
1) Fashionable and attractive structure, easy installation and maintenance. Sections can be combined freely with different functions
2) International quality, stable running
a. The running parts we adopt, including cooling parts, controlling components, pump, fan, etc, are coming from international famous brands, thus the quality is ensured;
b. Intelligent control, human-computer interface and standard communication protocol with high accuracy
3) Professional design for anti-corrosion and rust-proof ensures long working life
a. Heat exchanger is made of pure titanium pope, never rust;
b. The units are closed to avoid assault from mouse ,insects, etc;
c. Water tank is injection molding by PP, and the pope system is PRR seamless welded and the liquid will never leak
4)High-end optional configuration, strong applicability
a. With dehumidification accelerator inside, by using its won heating, it will accelerate the dehumidifying speed when the units on
b. With dehumidification regeneration balancer, there is no need to fill water outside to avoid the water softened.
Specification
Model(DH-xx) | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | ||
Power Source | 3PH-380V-50Hz | |||||||||
Desiccant Airflow | m3/h | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | |
Exhaust Air Capacity | m3/h | 1500 | 3000 | 4500 | 6000 | 7500 | 9000 | 12000 | 15000 | |
Cooling Capacity | kW | 6.5 | 13.0 | 19.5 | 26 | 32.5 | 39 | 52 | 65 | |
Dehumidification | kg/h | 4 | 8 | 12 | 16 | 20 | 24 | 32 | 40 | |
Power | kW | 2.8 | 5.5 | 8.5 | 11.7 | 15.1 | 17.9 | 25.7 | 32.1 | |
The electric auxiliary heat power | kW | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |
Compressor Type | Full Closed Scroll Compressor | |||||||||
Throttle Type | The Balance Type Thermal Expansion Valve | |||||||||
Refrigerant Type | R22/R407C | |||||||||
Filtration Grade | Primary (G4) | |||||||||
Fan Type | The Outer Rotor Centrifugal Fan | |||||||||
Supply air over-bottom pressure | Pa | 90 | 100 | 170 | 190 | 220 | 260 | 470 | 480 | |
Exhaust air over-bottom pressure | Pa | 100 | 100 | 100 | 100 | 230 | 250 | 460 | 490 | |
Weight | kg | 655 | 1020 | 1565 | 1820 | 2175 | 2700 | 3220 | 3800 |
Note:1. Nominal cooling and dehumidification working conditions: fresh air dry bulb temperature 35℃,wet bulb temperature 27.0℃; returned air dry bulb temperature 37℃,
relative humidity 15%;
2. Running environment: clean plant with retaining structure, story height less than 2.5m.
3. Auxiliary electric heating is optional, for the equipment which also needs to run other than summer

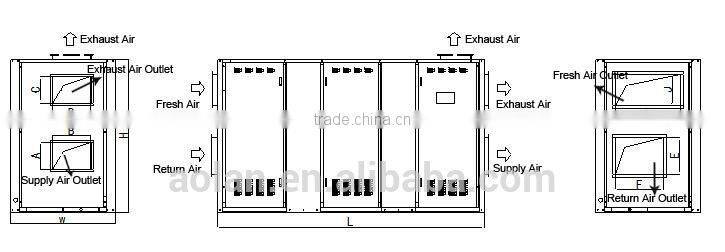

Dimension Drawing
Model(DH-xx) | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | ||
L | mm | 2500 | 2500 | 2700 | 2700 | 2800 | 2800 | 2900 | 2900 | |
W | mm | 750 | 1000 | 1400 | 1400 | 1850 | 1850 | 2250 | 2250 | |
H | mm | 2250 | 2350 | 2350 | 2400 | 2550 | 2580 | 2580 | 2730 | |
Fresh Air Outlet | A | mm | 188 | 188 | 221 | 338 | 331 | 362 | 467 | 467 |
B | mm | 270 | 270 | 300 | 325 | 455 | 455 | 420 | 420 | |
Exhaust Air Outlet | C | mm | 188 | 237 | 275 | 338 | 331 | 362 | 467 | 496 |
D | mm | 270 | 324 | 363 | 406 | 455 | 455 | 420 | 445 | |
Fresh Air Outlet | E | mm | 400 | 600 | 700 | 700 | 900 | 900 | 1300 | 1300 |
F | mm | 350 | 350 | 550 | 650 | 550 | 700 | 700 | 800 | |
Return Air Outlet | J | mm | 400 | 600 | 1100 | 1100 | 1500 | 1500 | 1900 | 1900 |
K | mm | 350 | 350 | 350 | 450 | 450 | 500 | 500 | 550 |
Note:As our products are improved continuously, specifications in the tables are subject to change without notice.
