Specifications
Muffle furnace1. Professional anufacturer
2. PID auto temperature control
3. CE certified

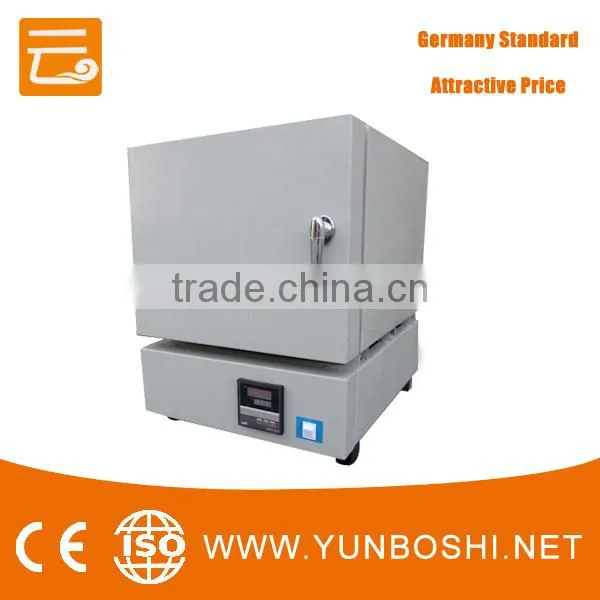

Product name: Ceramics BX-12-12 muffle furnace
Ceramics BX-12-12 muffle furnace specification
| Name | Model | Inner size(mm)H*W*D | Outer size(mm)H*W*D | Voltage(V) | Power(KW) | Rated temp(°C) |
| Box tape furnace | BX-2.5-10 | 80×120×200 | 500×440×575 | 220 | 2.5 | 1000 |
| BX-4-10 | 120×200×300 | 500×460×630 | 220 | 4 | ||
| BX-8-10 | 160×250×400 | 610×580×720 | 380 | 8 | ||
| BX-12-10 | 200×300×500 | 690×610×870 | 380 | 12 | ||
| BX-2.5-12 | 80×120×200 | 550×440×600 | 220 | 2.5 | 1200 | |
| BX-5-12 | 120×200×300 | 550×570×630 | 220 | 5 | ||
| BX-10-12 | 160×250×400 | 610×580×720 | 380 | 10 | ||
| BX-12-12 | 200×300×500 | 690×610×870 | 380 | 12 |
character
Ceramics BX-12-12 muffle furnace charactor
Available for industrial and mining enterprises, scientific research units, such as laboratory for chemical analysis, physical testing and general small steel heat treatmen
1.Electric furnace adopts domestic advanced technology,
2.Made of high quality steel plate after flanging welding pull, control box with furnace body as a whole structure.
3.Easy to installation.
4.Rectangular monolithic lining made of silicon carbide refractory material.
5.Iron chromium aluminum wire wound spiral heating element of wear on the inside
lining, bottom, left and right wire slot.
6.Furnace is sealed structure, electric oven brick, brick oven door uses lightweight refractory, in the furnace and the furnace shell with refractory fiber, expanded perlite products between building for the thermal insulation layer.
