Main Kind of Dry Cabinet
Camera Dry Cabinet, Care of your Camera and Lens

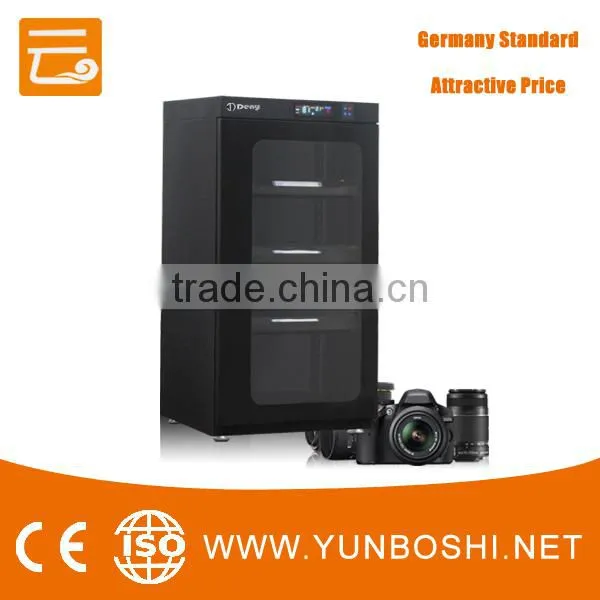

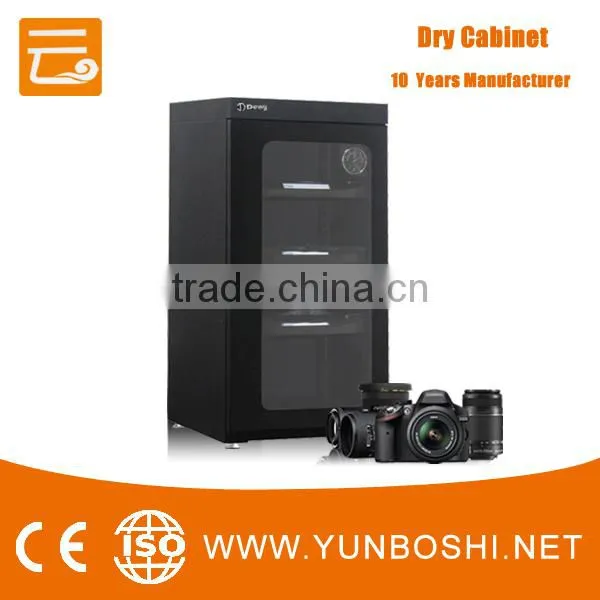

Camera Dry Cabinet Picture
Camera Dry Cabinet Specifications
| Volume | Outer Size(mm) | Inner Size(mm) | RH Range | Power | Shelves | Color |
| 115L | W415*D409*H790 | W410*D380*H735 | 30%-60% | 4W | 3 | Black |
Camera Dry Cabinet Functions
- Anti-fading, Anti-corrosion
- Anti-aging, Dust prevention
- Dehumidification, Anti-mildew, Anti-oxidation
Camera Dry Cabinet Usages
- Store food, tea, coffee, seed, perfume.
- Store precise instrument, IC, chemical and medical materials, paper materials.
- Store photographic & optic lens, cameras or digital photography, audiovisual , films, Disc.
Camera Dry Cabinet Characteristics
- Control RH to 30%-60% at fixed point.
- Environment protection and energy saving.
- High loading capacity, skid proof and shatter resistent.
- Cabinet body does not deform even if placing heavy things.
- Purity air polluted by chemistry such as sulfide and alcohols.
- Keep dehumidification even if accidentally powered off 24 hours.
- no counter-humidity, no heating, no condensation dripping, no fan noise.
Camera Dry Cabinet Dehumidification Principle
Absorption Stage Exhaustion Stage
Absorption Stage: values are opened inwards and closed outwards in order to absorb moisture
in the auto dry box to desiccant in the dry unit.
Exhaustion Stage: values are opened inwards and closed outwards in order to exhaust
moisture in the auto dry box from saturated desiccant in the dry unit.

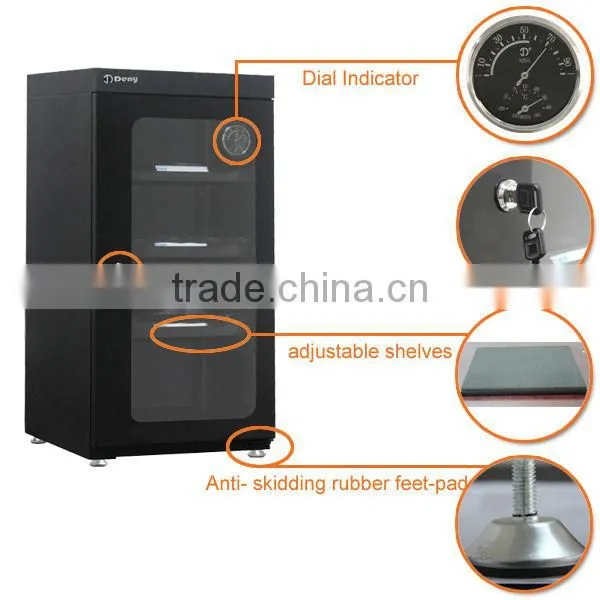

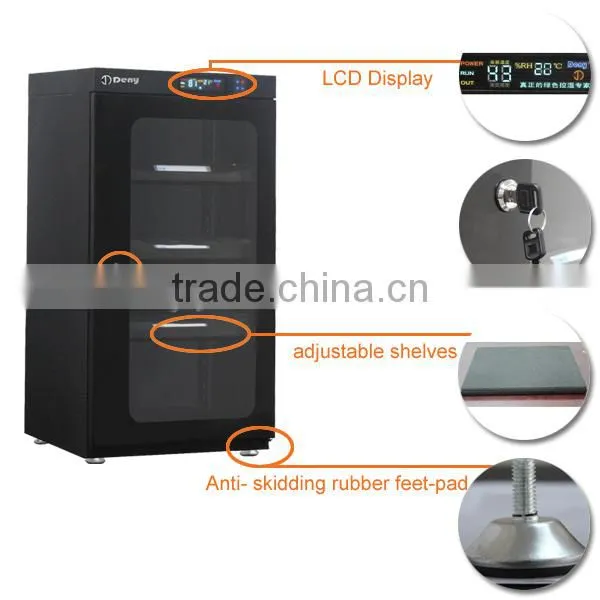

Camera Dry Cabinet Detailed Images
Model |
GSX-91 | GSX-115 |
GSX-134 |
GSX-185 |
Relative Humidity Range |
30%-60%RH |
30%-60%RH |
30%-60%RH |
30%-60%RH |
Volume(L) |
91 |
115 |
134 |
185 |
Adjustable Layer |
2 |
3 |
3 |
5 |
External Size(W*D*H) |
415*409*636 |
415*409*790 |
415*409*916 |
415*409*1245 |
Average Power Comsumption |
4W |
4W |
4W |
8W |
- Packaging Materials: plywood case or honeycomb carton.
- Package Size: W570*D570*H950 mm
- Delivery detail: 5-15 days.
We are a profesional Electronic Dry Cabinet manufacturer in China providing different sizes of dehumidification cabinets with various options.
Since we were established in 2004 year we always adhering to the idea of “ profession and quality for establishing a good corporate system. ”
Your success is our source. Our company holds the policy of “quality first, users first”. We warmly welcome all partner home and abroad to cooperate with us.
1. Why do you need a dry cabinet?
Recommended RH value for various articles storage
| Condition(RH%) | Store Items |
| Below 15%RH | camera, lens, VCR, telescope, photo, antique book, painting, stamp, coin, rare curios, CD, LD, project drawing and leather etc |
| Below 35%RH | Precision instruments, electronic appliance, measuring, precision modules, semiconductor, tungsten filament, EI, PCB and etc |
| 35-45%RH | All kinds of research probational medicine, sample, filter, seeds, flower powder, dry flower and spice, perfume and etc |
| 45-55%RH | Special chemical medicine, precision electric components, BGA, IC, SMT, Wafer, SMD, LCD etc. |
2. Can you customize the product?
Yes, we can customize any products according to customer's requirements.
3. Which payment terms are you doing?
PayPal, West Union, T/T, (100% payment in advance.)
4. Which shipment is available?
By sea, by air ,by express or as your requirement.
5. Which country you have been exported?
We have been exported to many countries, all most all around the world, like Malaysia, Vietnam, Thailand, United States, France, Spain, Mexico, Dubai, Japan, Korea, Germany, Porland Etc.
6. How long is the delivery time?
It's about 7-15 days.
