Help CenterGolden Supplier Ultra Low Humidity Waterproof Storage Cabinet
Related Products
-
Low Humidity Control 115 Litres LCD Endoscope Storage CabinetUS$ 168 - 228MOQ: 1 Piece -
Anti Mildew 134 Litre Humidity Control Camera Dry Box With Sponge MatsUS$ 178 - 248MOQ: 1 Piece
-
Damp Proof LCD 91 Litres CD Storage CabinetUS$ 138 - 198MOQ: 1 Piece
-
Anti-humidity 185 Litre LCD Dry Box for CameraUS$ 248 - 328MOQ: 1 Piece
-
Professional Supply Cabinet Dryer, Dryer Cabinet, Electronic Component Storage CabinetUS$ 675 - 735MOQ: 1 Piece
Main Kind of Dry Cabinet

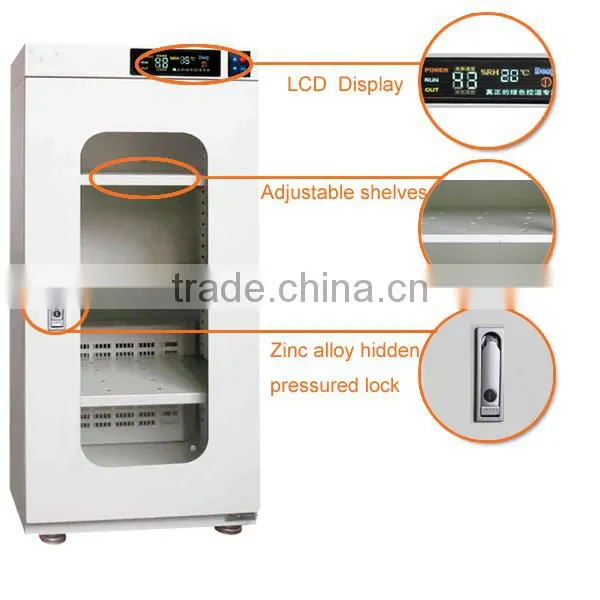

Golden Supplier Ultra Low Humidity Waterproof Storage Cabine Waterproof Storage Cabinet's specifications
| Model No. | Outer Size(mm) | RH Range | Power | Shelves | Display |
| GST157A | W440*D450*H935 | 20%-60% | 16W | 3 | LCD |
| GST157LA | W440*D450*H935 | 1%~40% | 16W | 3 | LCD |
Waterproof Storage Cabinet's Functions
- Anti-fading, Anti-corrosion
- Anti-aging, Dust prevention, Anti-static
- Dehumidification, Anti-mildew, Anti-oxidation
Waterproof Storage Cabinet's Usages
- Store Lens, Chip, IC, BGA, SMT, SMD.
- Store anti-oxygen materials, Semiconductor, Precision components and instruments.
- Store Military industry, Non-ferrous metal, Module, Films, Wafers, Lab chemical and medicine.

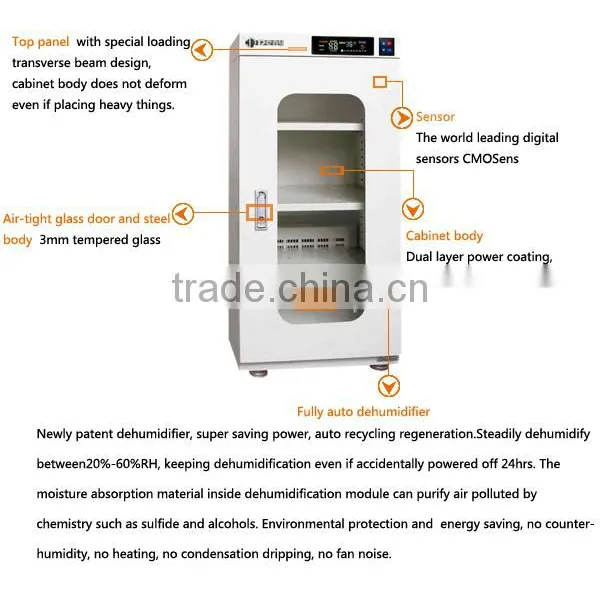

Waterproof Storage Cabinet's Characteristics
- 1.2mm steel, bearing 150 kg.
- Control RH to 20%-60% at fixed point.
- Environment protection and energy saving.
- Shap memorial alloy dehumidification method.
- High loading capacity, skid proof and shatter resistent.
- Cabinet body does not deform even if placing heavy things.
- Purity air polluted by chemistry such as sulfide and alcohols.
- Intelligent computer reading temperature and humidity system.
- Keep dehumidification even if accidentally powered off 24 hours.
- no counter-humidity, no heating, no condensation dripping, no fan noise.
Waterproof Storage Cabinet's Dehumidification Principle
Absorption Stage Exhaustion Stage
Absorption Stage: values are opened inwards and closed outwards in order to absorb moisture
in the auto dry box to desiccant in the dry unit.
Exhaustion Stage: values are opened inwards and closed outwards in order to exhaust
moisture in the auto dry box from saturated desiccant in the dry unit.
Recommended RH value for various articles storage
| Model No. | Capacity | Outer Size(mm) | RH Range | Power | Shelves | Display |
| GST93LA | 93L | W440*D450*H688 | 1%-40% | 16W | 3 | LCD |
| GST157LA | 157L | W440*D450*H935 | 1%-40% | 16W | 3 | LCD |
| GST315LA | 315L | W880*D450*H935 | 1%-40% | 32W | 3 | LCD |
| GST480LA | 480L | W600*D700*H1276 | 1%-40% | 32W | 3 | LCD |
| GST495LA | 495L | W1000*D480*H1100 | 1%-40% | 32W | 3 | LCD |
| GST726LA | 726L | W600*D700*H1885 | 1%-40% | 48W | 5 | LCD |
| GST1452LA | 1452L | W1200*D700*H1885 | 1%-40% | 96W | 5 | LCD |
| GST1453LA | 1452L | W1200*D700*H1885 | 1%-40% | 96W | 5 | LCD |
| GST1452-S | 1452L | W1200*D700*H1885 | 1%-40% | 96W | 5 | LCD |
- Packaging Materials: plywood case or honeycomb carton.
- Package Size: W620*D610*H1240mm
- Delivery detail: 15-25 days.
We are a profesional Electronic Dry Cabinet manufacturer in China providing different sizes of dehumidification cabinets with various options.
Since we were established in 2004 year we always adhering to the idea of “ profession and quality for establishing a good corporate system. ”
