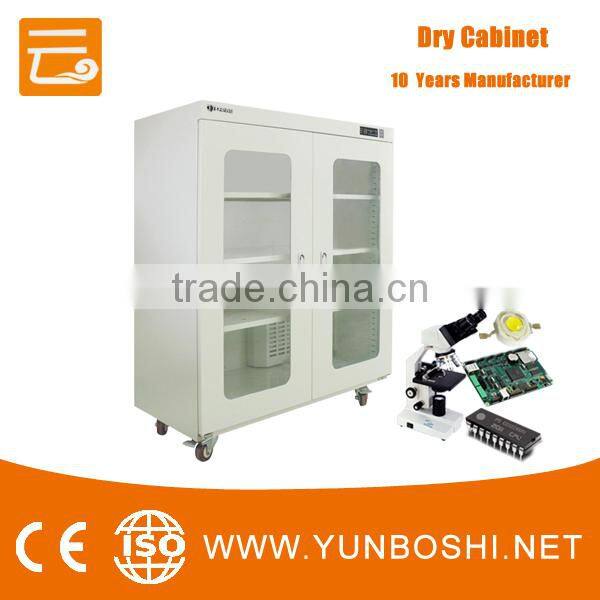

Low MOQ Humidity Proof Steel File Cabinet
Steel File Cabinet's specifications
| Model No. | Outer Size(mm) | RH Range | Power | Shelves | Display |
| GST315A | W880*D450*H935 | 20%-60% | 16W | 3 | LCD |
| GST315LA | W880*D450*H935 | 1%~40% | 16W | 3 | LCD |
Steel File Cabinet's Functions
- Anti-fading, Anti-corrosion
- Anti-aging, Dust prevention, Anti-static
- Dehumidification, Anti-mildew, Anti-oxidation
Steel File Cabinet's Usages
- Store Lens, Chip, IC, BGA, SMT, SMD.
- Store anti-oxygen materials, Semiconductor, Precision components and instruments.
- Store Military industry, Non-ferrous metal, Module, Films, Wafers, Lab chemical and medicine.

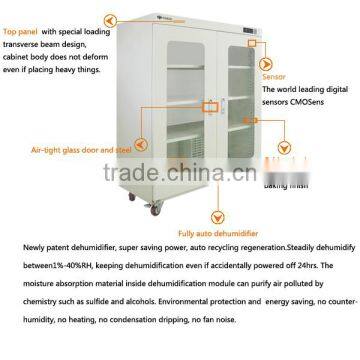

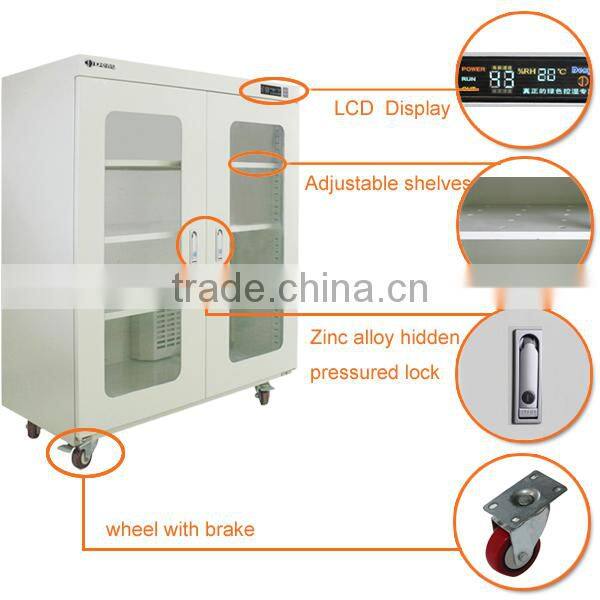

Steel File Cabinet's Characteristics
- 1.2mm steel, bearing 150 kg.
- Control RH to 20%-60% at fixed point.
- Environment protection and energy saving.
- Shap memorial alloy dehumidification method.
- High loading capacity, skid proof and shatter resistent.
- Cabinet body does not deform even if placing heavy things.
- Purity air polluted by chemistry such as sulfide and alcohols.
- Intelligent computer reading temperature and humidity system.
- Keep dehumidification even if accidentally powered off 24 hours.
- no counter-humidity, no heating, no condensation dripping, no fan noise.
Steel File Cabinet's Dehumidification Principle
Absorption Stage Exhaustion Stage
Absorption Stage: values are opened inwards and closed outwards in order to absorb moisture
in the auto dry box to desiccant in the dry unit.
Exhaustion Stage: values are opened inwards and closed outwards in order to exhaust
moisture in the auto dry box from saturated desiccant in the dry unit.
Recommended RH value for various articles storage
| Model No. | Capacity | Outer Size(mm) | RH Range | Power | Shelves | Display |
| GST93A | 93L | W440*D450*H688 | 20%-60% | 16W | 3 | LCD |
| GST157A | 157L | W440*D450*H935 | 16W | 3 | ||
| GST315A | 315L | W880*D450*H935 | 16W | 3 | ||
| GST480A | 480L | W600*D700*H1276 | 16W | 3 | ||
| GST495A | 495L | W1000*D480*H1100 | 16W | 3 | ||
| GST726A | 726L | W600*D700*H1885 | 16W | 5 | ||
| GST1452A | 1452L | W1200*D700*H1885 | 32W | 5 | ||
| GST1453A | 1452L | W1200*D700*H1885 | 48W | 5 | ||
| GST1452-S | 1452L | W1200*D700*H1885 | 48W | 5 |
- Packaging Materials: plywood case or honeycomb carton.
- Package Size: W910*D530*H1050mm
- Delivery detail: 15-25 days.
We are a profesional Electronic Dry Cabinet manufacturer in China providing different sizes of dehumidification cabinets with various options.
Since we were established in 2004 year we always adhering to the idea of “ profession and quality for establishing a good corporate system. ”
