Small grain feed small pulverizing mill machine
| feed machinery soybean corn grain grinding machine | |
|---|---|
|
Model: HM- SFSP56*36 Capacity : 3-5 t/H Power : 22 Kw Rotor diameter : 560 mm |
|
Model: HM- SFSP56*40 Capacity : 5-8 t/H Power : 37 Kw Rotor diameter : 560 mm | |
|
Model: HM- SFSP66*60 Capacity : 9-16 t/H Power : 55/57 Kw Rotor diameter : 660 mm | |
|
Model: HM- SFSP66*80 Capacity : 12-22 t/H Power : 90/110 Kw Rotor diameter : 660 mm | |
|
Model: HM- SFSP66*100 Capacity : 18-28 t/H Power : 132/160 Kw Rotor diameter : 660 mm | |
|
1) the rotated speed of the spindle is 2980 r/min. 2) the Mesh size of the sieve is 3.0 mm. | |
| Introduce of feed machinery soybean corn grain grinding machine | |
|---|---|
|

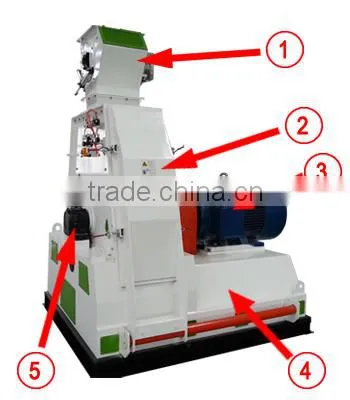

1) Frequency Conversion Impeller Feeder: To make the corn grinder work full efficiently, the frequency is changing in real time based on the raw material amount in the crushing chamber, and the feeding speed is self-adapting.
2) Crushing Chamber: there area number of hammer and shaft inside. the high speed rotating hammer make the raw material corn grain into powder. and there are screen at the bottom of the chamber.
3) Main Motor: we equip the super quality and brand Simens Motor for our hammer mill machine.
4) Base structure: support the other unit.
5) Bearing: we adopt the famous brand bearing in our machine.
We adopt the super quality Siemens brand motor in our machine. |
|
| Related Machine | |
|---|---|
|
|
|
1) Mixing machine mix different kind of powder feed raw material evenly. the final product powder feed could directly feed animal, and it could be made pellet feed as well.
2) the previous processing step is grain hammer mill( grain grinding machine, small corn mill grinder for sale), and the next processing step is pellet mill. |

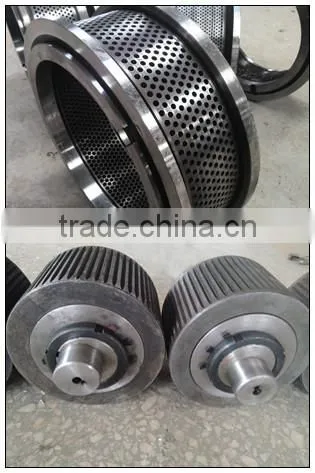

1) Pellet mill make the powder feed material into pellet.
2) The previous processing step is mixing machine, the next processing step is cooling or crumbling. |
| Pelleting process working principle | |
|---|---|
|
|
|
♦ The main motor drive the ring die mould rotated. the press roller that were placed inside of the roller does not revolution, but will rotate because the friction of the ring die mould and poultry animal feed powder raw material. ♦ The feed material was spread evenly into the space between the ring die and roller, and was press into the mould hole, formed column shape pellet, the pellet will rotate along with the rotating ring die mould and will be cutted when the length of the column pellet reach to a certain value. | |
1) What is the raw material you want to process?
2) What about the capacity?
3) Will you need a single hammer mill machine?
4) Will you need a complete set of animal feed production line? Please choose your capacity at the bottom.
| You may need: animal feed production line | |
|---|---|
|
Choose Your Capacity |
| 1-2 ton / hour | |
| 3 ton / hour | |
| 5 ton / hour | |
| 10 ton / hour | |
| 20 ton / hour | |
♦ We, Henan Richi Machinery Co., Ltd. was established in 1995, Has served Europe, North America, Africa, Middle East, Asia for ten years. Our products have been sold to many countries all over the world.
♦ The head office was located in Zhengzhou, Henan Province.
♦ As a professional animal poultry feed manufacturing machine and complete plant project solution supplier, hammer mill grain grinding machine, small corn mill grinder for sale are parts of our main products, Henan Richi can always meet different customers' requirement.
♦ We understand how important the quality is, and we also understand the importance of timely shipping.
♦ We know how to survive and develop, because we always focus on the long-term development.
♦ 2015 China Feed Industry Expo & Animal Production Promotion was held at Nanjing International Expo Center. the Expo was organized by National Animal Husbandry Service and China Feed Industry Association.
♦ Many international copanies were take part in the exhibition, such as Muyang, DSM, Adisseo, Zhengchang, Buhler and CP Group.
♦ The scope of the exhibition includes feed ingredients, feed and feed additives, animal feed, feed processing machinery and equipment, animal health products, veterinary drugs, pharmaceutical additives, poultry processing equipment, and animal husbandry machinery and equipment.
To make sure the small corn mill grinder for sale delivery to you at the best condition, we adopt the considerate way to protect the equipment very well. We consider our products just as our children.
