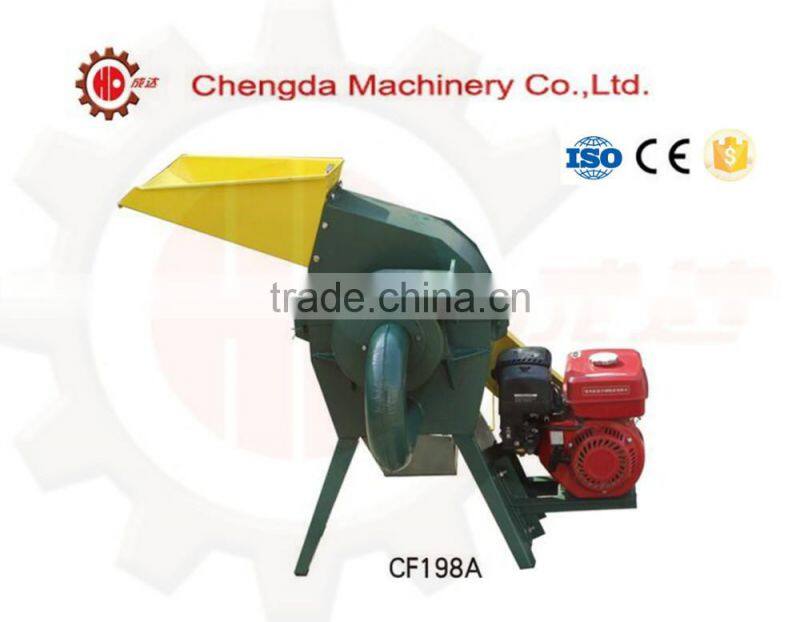

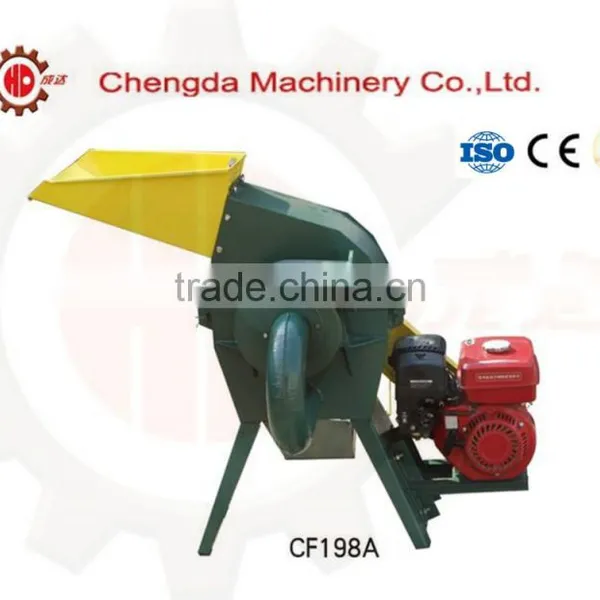

Help CenterGood Quality CF198A Straw Hammer Mill, Wood Hammer Mill, Alafalfa Hammer Mill With ce
Related Products
-
Hot Sale Wood Crusher Machine, Wood Hammer Mill, Feed Hammer Mill for Household UseUS$ 500 - 1,000MOQ: 2 Sets -
European Standard Animal Feed Crusher, Wood Pellet Crusher, Hammer Mill Crusher CF158 With ceUS$ 300 - 600MOQ: 3 Sets
-
Best Price of Biomass Wood Crusher,animal Feed Grain Crusher,mini Wood Crusher MachineUS$ 350 - 1,000MOQ: 3 Sets
-
CE Approved Cattle Feed Crusher/ Straw Hammer Mill/ Straw Wood Crusher CF198BUS$ 400 - 1,000MOQ: 3 Sets
-
New Condition Crusher Cattle Feed,feed Crusher, Wood Hammer Mill With ceUS$ 800 - 1,500MOQ: 1 Set
| Advantages of Wood Hammer Mill |
|
1. Driven by electric motor, the household hammer mill is easy to operate. 2. The hammer mill may powered with 2 electrodes motor that is driven by four B-type belt. 3. It will reduce lumber up to 50 mm diameter into 3-5 mm generally. 4. The screen sizes can be offered as per your request. 5. Smallest capacity makes this CF158 wood hammer mill most suitable for making your own wood pellets and feed pellets.
|
| Applications of CF158 Feed Crusher |
| 1). This smallest wood hammer mill is most suitable for home use with small capacity and tiny dimension. |
| 2). Equipped with hammers, this wood hammer mill is more suitable to crush soft agricultural crops such as wheat stalks, alfalfa, corn straws, switch grass, peanut soybean shell and bamboo. |
| 3). A cyclone can be equipped to collect finished wood particles to prevent dust leakage. |
4). This wood hammer mill can be used in home-made wood pellet production which can be used as animal bedding, heat fuel and fodder. |

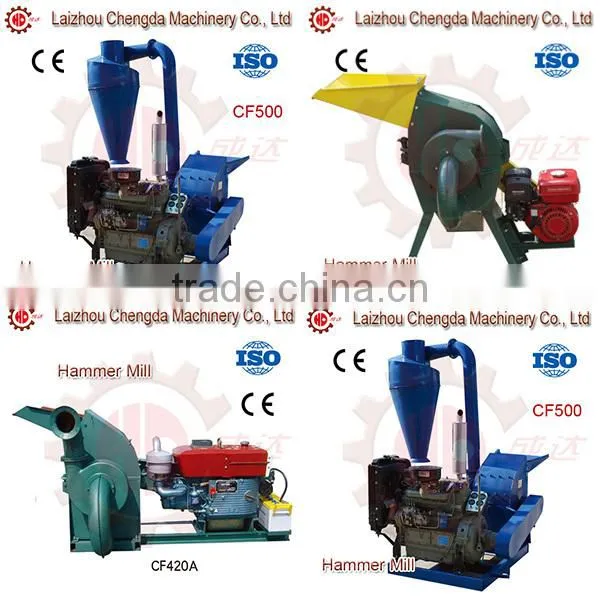

Other Wood Hammer Mill Overview:
| Model | Power | Voltage V/ 50 Hz | Sieve Screen Size | Capacity | Packing Size |
| CF158 | 2.2kw | 380v | 360*160 mm | 60-120kg/h | 48*58*63 cm |
| CF198 | 4kw | 380v | 510*200 mm | 200-300kg/h | 97*75*64 cm |
| CF420B | 7.5kw | 380v | 680*280 mm | 200-400kg/h | 112*82*107 cm |
| CF420C | 11kw | 380v | 680*280 mm | 200-500kg/h | 112*82*107 cm |
| CF500 | 22kw | 380v | 820*390 mm | 800-1100kg/h | 124*97*106 cm |
| Wood Crusher Principle |
|

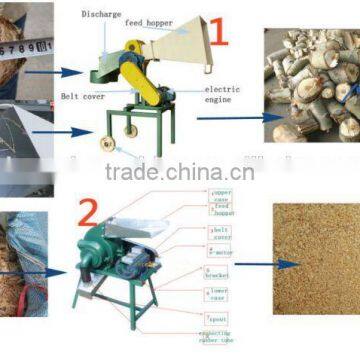

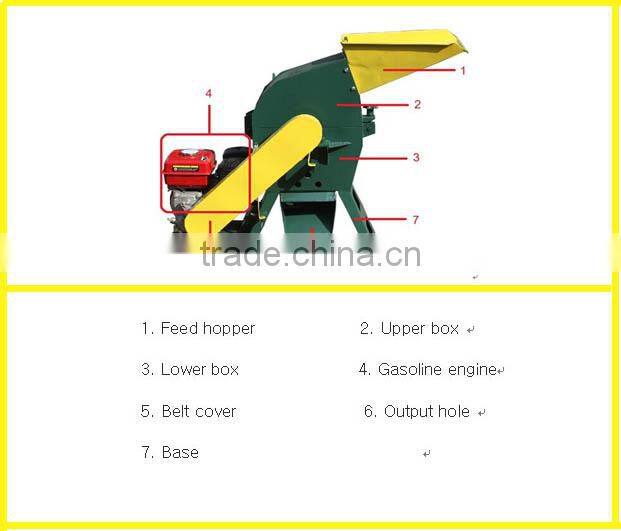

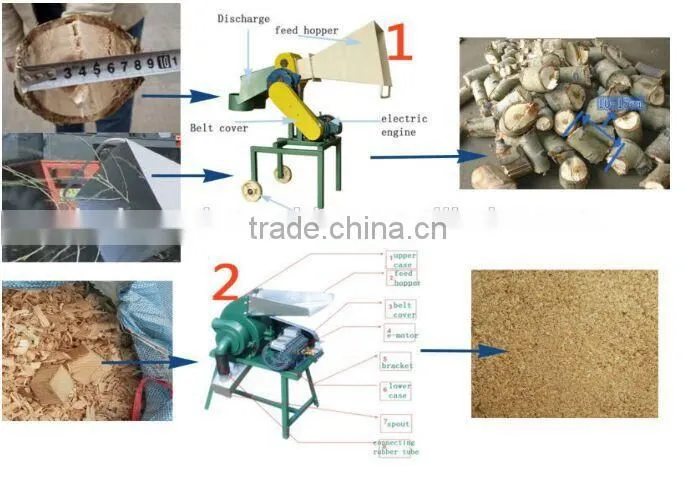

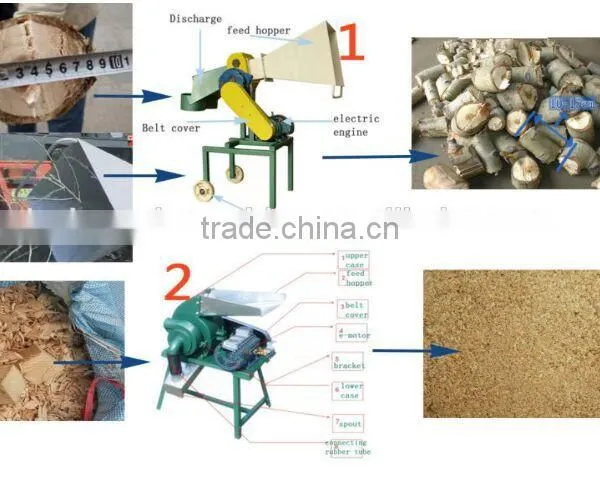

There are three main parts in the whole wood hammer mill: feed hopper, grinding cell, winding system. Cyclone is sold separately which can be used to collect wood particles and dust and reduce its harm to human. 1. While working, wood material is fed into the crushing chamber though feed hopper. Crushed by high speed rotating hammer, large particles hit the gears with strong impact force. Got repetitive collision and friction press from hammers and gears, raw material is gradually being ground into small chips and sawdust. 2. These light wood particles are blowing out wood hammer mill with the help of winding machines. If there is not cyclone on your machine, light wood chips will be blowed everywhere and you should place a dust bag to gather them. If your wood hammer mills are equipped with a cyclone, these crushed wood chips will be automatically separated from strong airflow.
|
|
Learn about Cyclone Function for A Wood Hammer Mill |
|
In actual production, a cyclone is always a necessary device in wood hammer mill. What’s the function of cyclones? How does it work? Does the cyclone really work? |

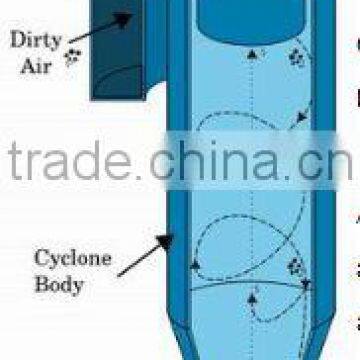

Cyclonic separation is a method to remove wood particles from air steam though vortex separation without filters. In wood chips and sawdust collection, rotational effects and gravity are main ways to separate the mixed air flow. This method can be also used to separate fine droplets of liquid from a gaseous stream.
A high speed rotating airflow is established within a cylindrical or conical container called a cyclone. Airflow begins at the tops of cyclone and ends at the bottom, moving in a spiral way. Wood particles out from wood hammer mill are drew up into airflow starting separation procedure. Wood chips and sawdust in the rotating steam have much inertia to follow the moving airflow. They will strike the inner wall until falling to the bottom, waiting to be collected.
The main advantage of cyclones is to reduce the dust content in air to protect your lungs and breathing system. Pneumoconioses and black lung disease are all cause by long term exposure to dust. Please taking heath into consideration when purchasing a wood processing machines.
| Key Features of CF158 wood Hammer Mill |
| 1). With capacity 60-120kg/h, this hammer mill can satisfy a small production demand on a daily basis. |
| 2). The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill. |
| 3). Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing. |
| 4). The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part. |

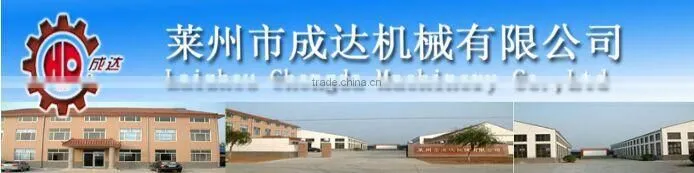

Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Our company always takes the product quality and credibility as the foundation of us present and tomorrow survival and development. We always adhere to the "quality and reputation first" concept.And we have got the 'quality advanced company" and "quality trustworthy company" and the "honorary company". we are AAA level enterprise to be named by the national quality, reputation and service department.
Our company is located in Laizhou Bay, near to Qingdao seaport. It's convient in sea, road, and air transportation, we have very perfect import and export service system in China. At the same tine , we have a widely range of commodity information network, partners all over the world. Believe our sincere cooperation will creat a better tomorrow.
| Our Services |
|
1. We provide 1 year guarantee. 2. We provide English manual and video for installation & operation. 3. If required, we could send technicians for installation and commissioning, training. 4. We provide feed formula and free spare parts. |
| FAQ |
| 1. How to order? |
|

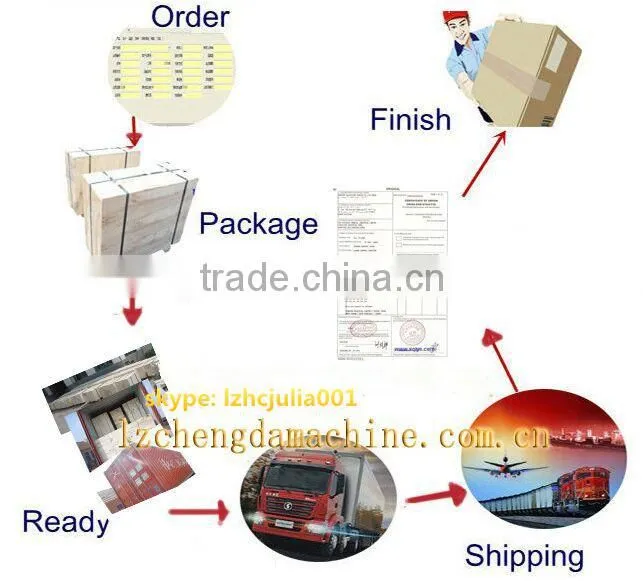

After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the payment. For single set, your machine can be ready within 30-45 days after we getting the payment, we will send to the port and deliver to you by sea. |
| 2. Related products? |
| KL150C,KL200C,KL300C,KL400C |
| 3. How to get to your factory? |
| Our company is located in Sanlihezi Village, Wenfeng Road, Laizhou, Shandong province, near Qingdao, if you arrive in Qingdao Liuting Airport, we can drive to Qingdao to pick you up to our factory. |
| 4. How long is your warranty period? |
One year |
5. How does your factory do quality control? |

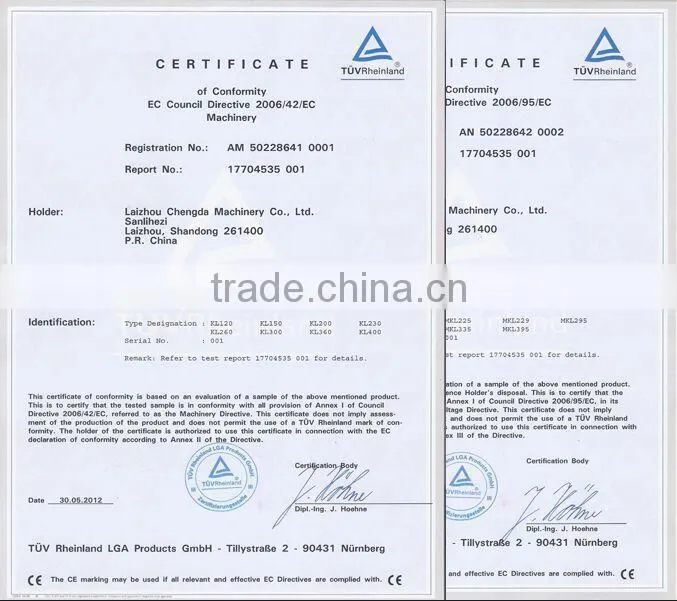

Our factory has gained CE certificate and ISO certificate. " Quality is priority" we always pay great attention on quality controling from the begining to the end. |
