ring die wood pellet machine , straw pellet machine, animal feed pellet machine
A. characteristics
1.Vertical feeding directly in place.
2. Die static, roller rotating, materials centrifugal, Evenly distributed around.
3.Double-layer dies, up and down dual-use, reduce the cost,enhance the efficiency, can be dual-use,high capacity,energy saving.
4.One die,different hole diameters, with different specifications to pelletize.
5.Macroporous die, wire joining circular tube, increasing travel, improving density.
6.Ring die,vertical structure,good for cooling the pelletizing room.
7. Independent and frequency conversion discharge device, to ensure that the rate of
pellet formation.
.Four differences
1. Upward mould, special structure, vertically feeding and easier heat dissipation.
2. Die static, roller rotating, material centrifugal and distributed around evenly.
3. Double-layer die, multi-function, high efficiency.
4. Macroporous die, wire joining circular tube, increasing travel, improving density.
The pellet machine we produced displays:
1. vertical die,feeding vertically;No arching of raw materials,easy for heating dissipation.
2. Die fixed,rollers rotating,materials centrifugal,evenly distributed around.
3. Double-layer dies,up and down dual-use,high capacity,saving energy.
4. Independent and frequency changeable cutting device, ensure formation rate of pellets.
5. Independent lubrication;high pressure filtration,clean and unblocked.
The particles made by the pellet machine with the feartures of:
1. High density,no arching of raw materials,easy for heating dissipation.
2. Effective combustion value,saving energy.
3. Low moisture also low ash content.Independent and frequency changeable cutting device.
Vertical ring-die pellet mills
1.Vertical feeding directly in place.
2.Die static,roller rotating,material centrifugal,evenly distributed around.
3.Double-layer dies,up and dowm dual-use,reduce the cost,enhence the effiency.
4.One die,different hole diameters,with different specification to pelletize.
5.Ring die ,vertical structure.doog for cooling the pelletzing room.
6.Indepedent and frequency conversion discharge device,to ensure that the rate of pellet formation.
7.Macroporous die,wire joining circulai tube ,increasing travel ,improving density.
Raw material :
you can choose sawdust, wood chipper, all kinds of straw, corn husk powder,groundnut shell,bamboo biomass and so on. the moisture between 8%-25%
Technical data
| item number(model) | output(kg/h) | power(kw) | specifications (mm) | weight(kg) | size (mm) |
| MKL400-37 | 500-600 | 37 | Φ 4-12 mm | 2200 | 2630*100*2400 |
| MKL400-45 | 600-700 | 45 | Φ 4-12 mm | 2600 | 2600*1300*2300 |
| MKL450-55 | 700-800 | 55 | Φ 4-12 mm | 3200 | 2900*1300*2400 |
| MKHKL450-75 | 800-1200 | 75 | Φ 4-12 mm | 3400 | 3300*1400*3100 |
| MKL450-90 | 1200-1500 | 90 | Φ 4-12 mm | 4200 | 3800*1680*3400 |

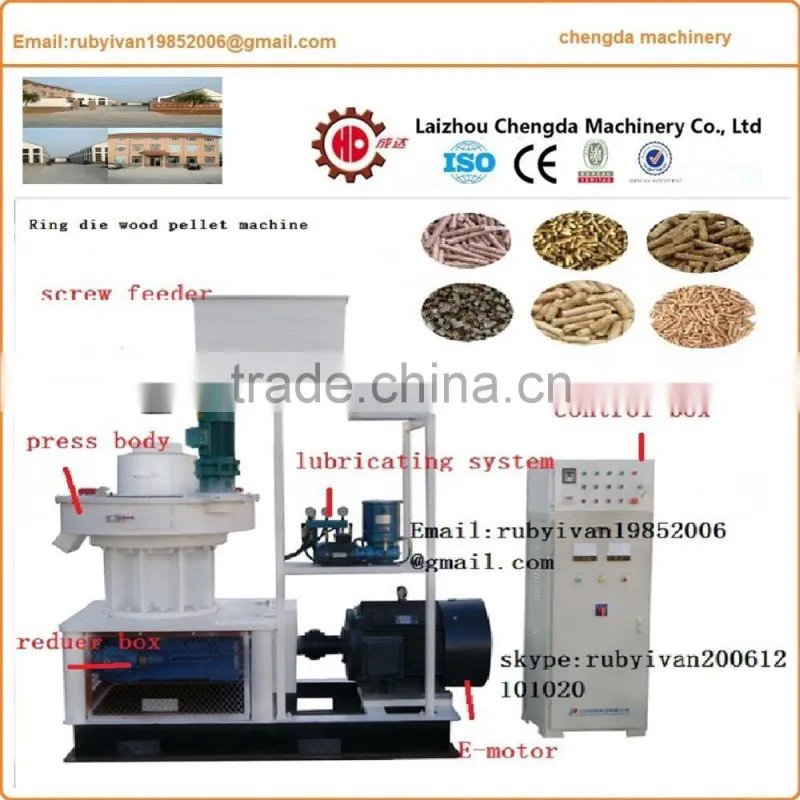

MKL400-37,MKL400-45 ring die wood pellet machine with automatic lubricating system, it can make Wood pellet in good condition.

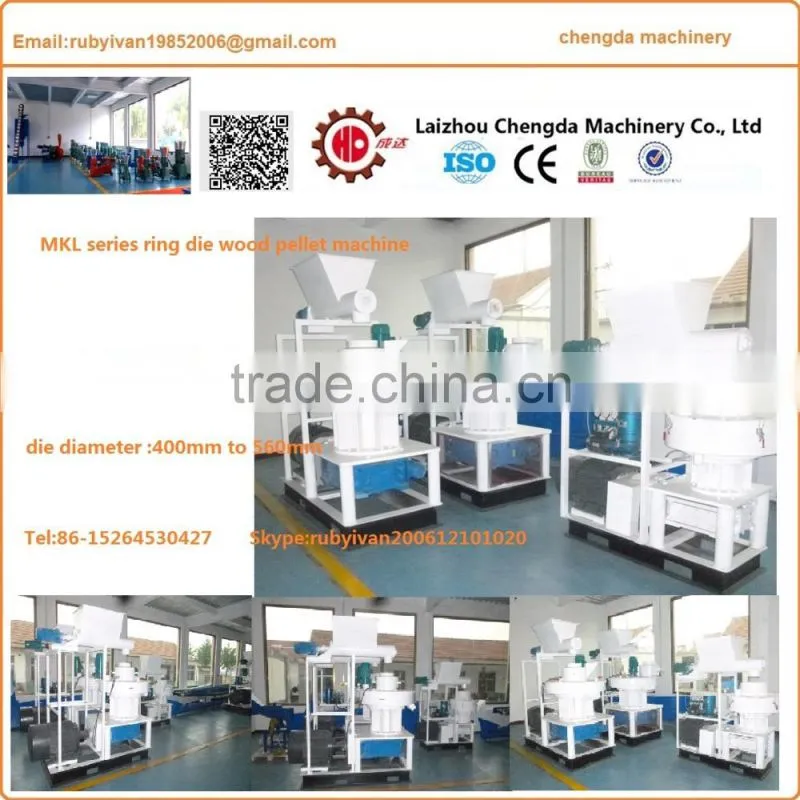

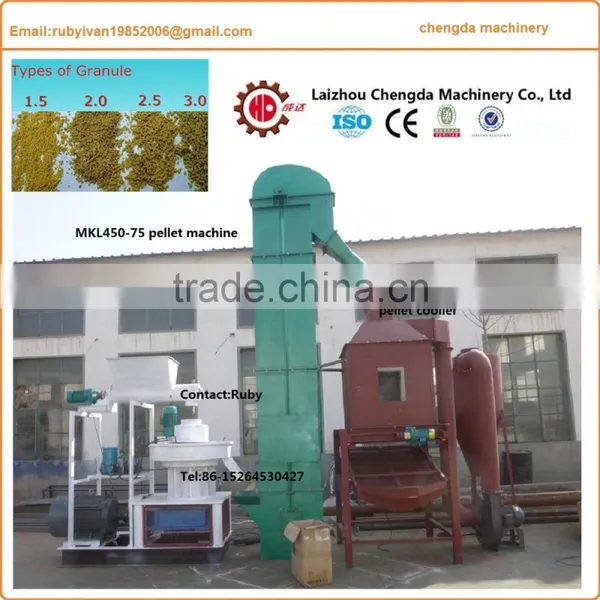

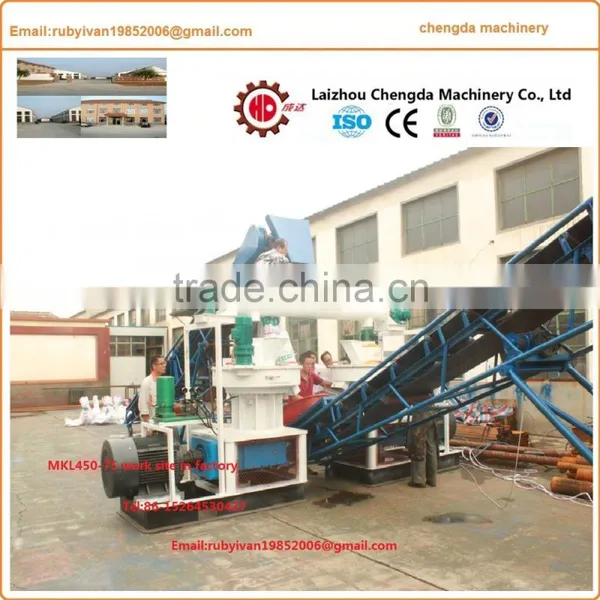

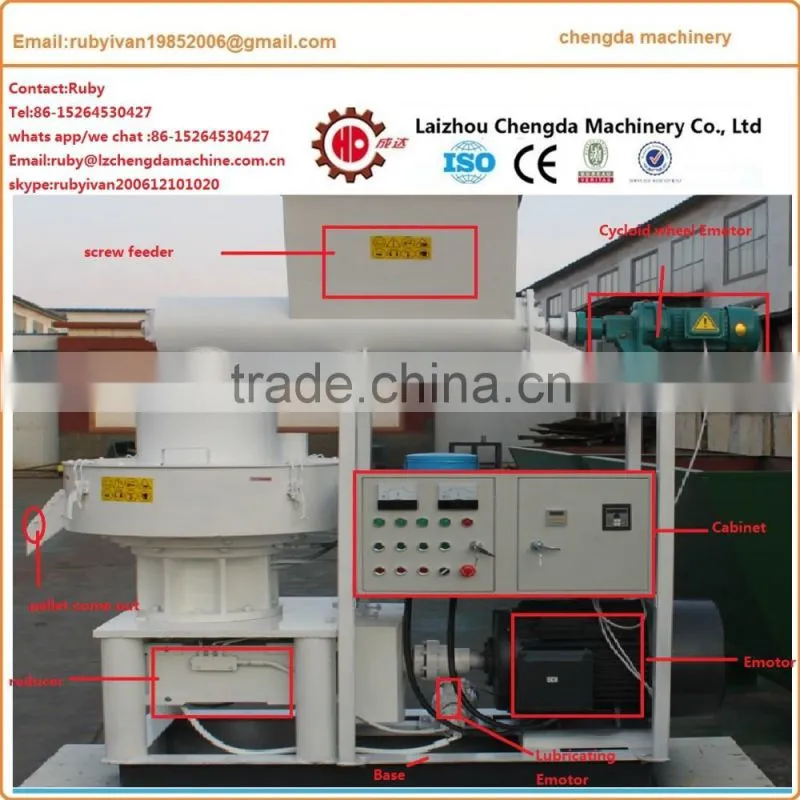

MKL450-55.MKL450-75,MKL450-90 ring die wood pellet machine with automatic lubricating system pictures in details as below:

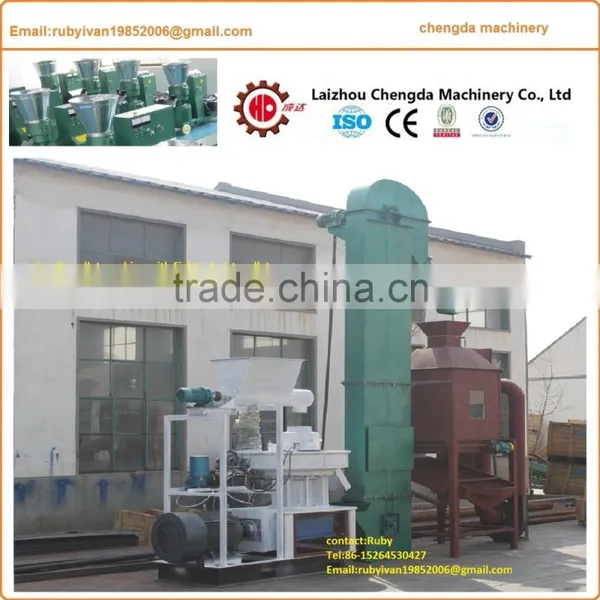

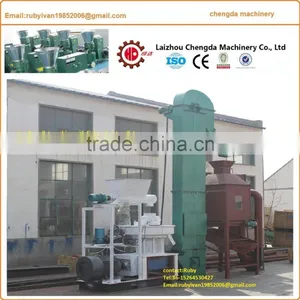

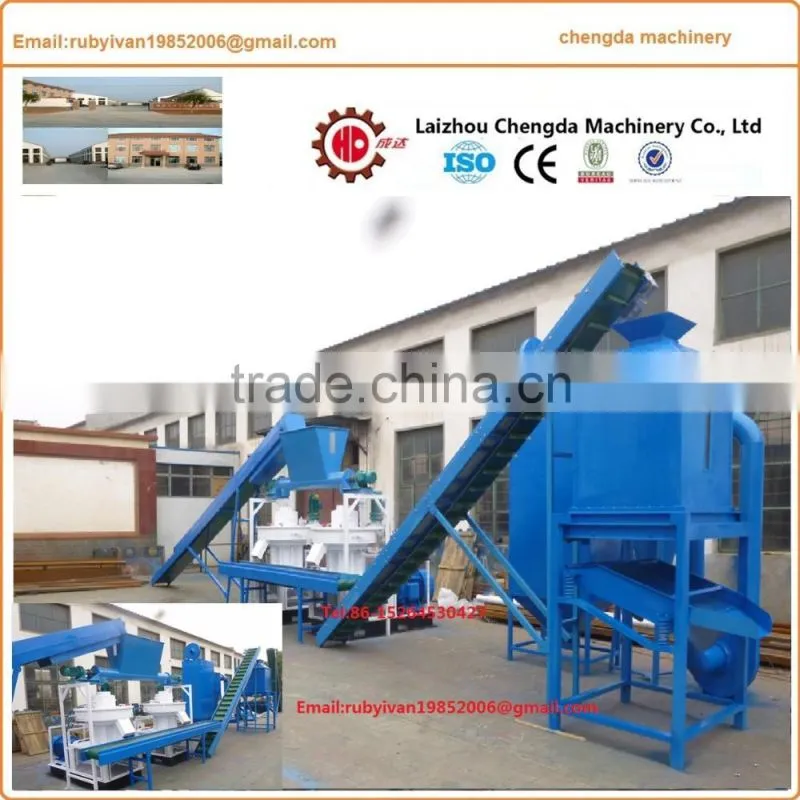

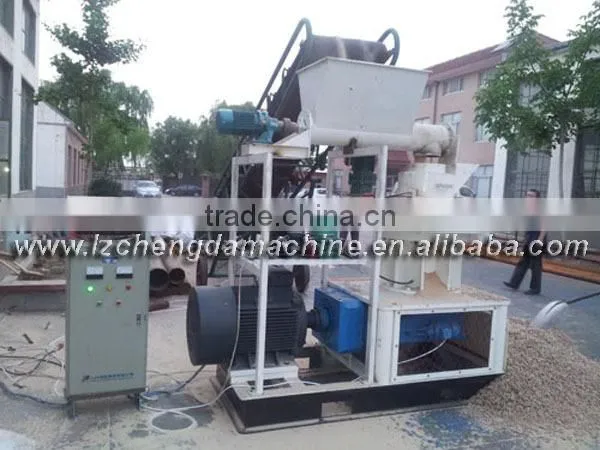

Simple feed pellet production line, it including the hammer mill, mixer and screw elevator and pellet mill.

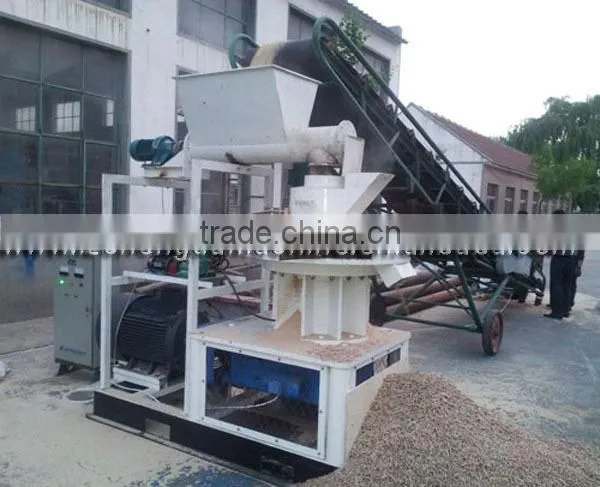

Belt conveyor connect with the pellet mill
Packing and delivery method

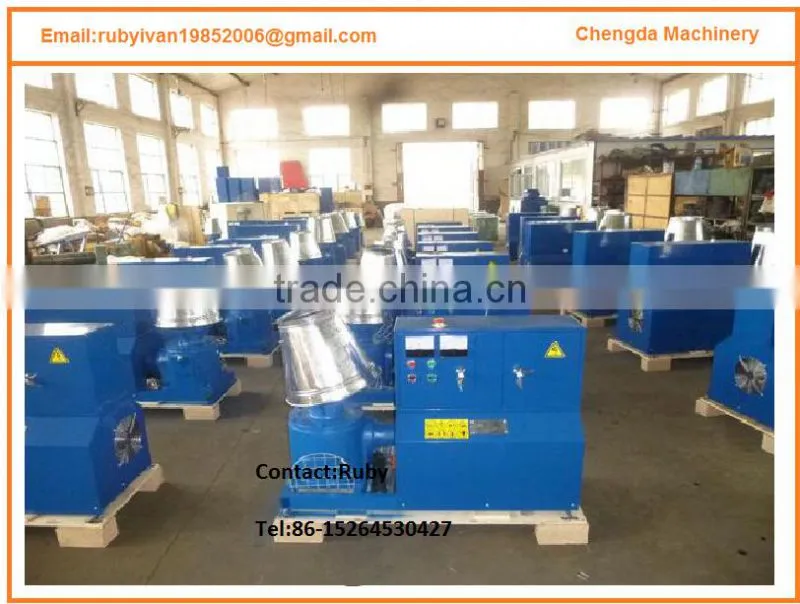

we also have series KL series flat die feed pellet mill and MKL sereis flat die wood pellet mill for your choose.
if you want to get more informaiton feel free to ask me or click the below pictures to see more details.

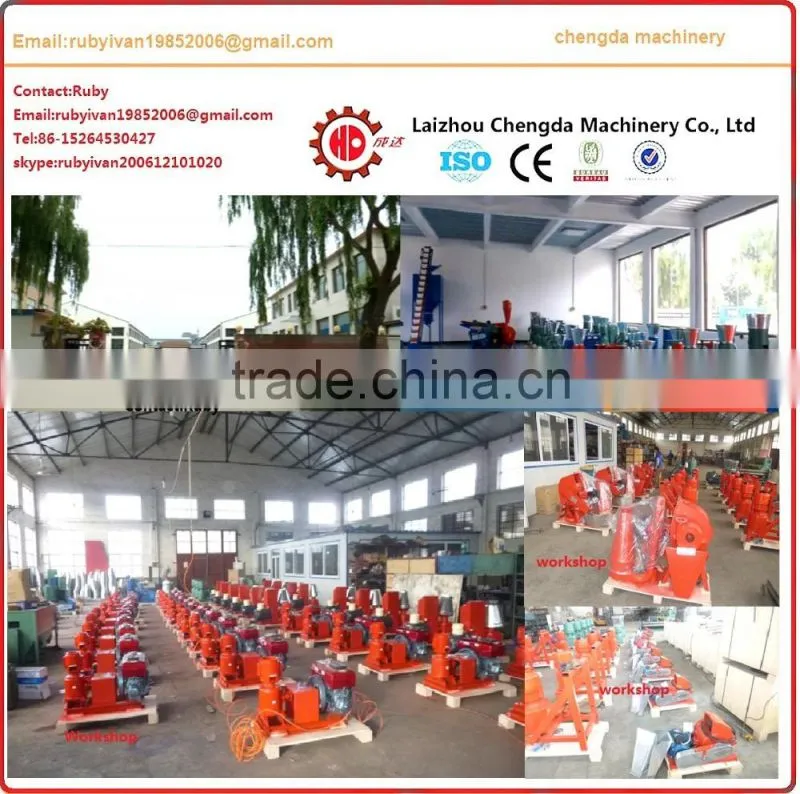

Factory introduction
Laizhou chengda machinery co.,ltd was found in 1992 years, mainly produce the wood pellet machine, biomass pellet machine, feed pellet machine.
main market 80%EU ,10% USA,10% AFRICA.
at the same time, we supply the machine for more than 150 trading company in China. we have distributor in many EU countries.
Certification:
all our machine gotten the CE certification to meet EU stander.
Need any information feel free to contact me freely.
