Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | chengda machine | Model Number | KL200B | |
| Voltage | 380v | Power(W) | 7.5KW | |
| Dimension(L*W*H) | 100*43*95CM | Weight | 230KGS | |
| Certification | CE | Warranty | 12 monthes | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
wood and feed pellet mill
1.CE certificate
2.pellet size: 2.5mm,to 10mm
3.pellet length:60-80cm
4.warranty period :1 years
The advantages of finished pellets:
1.as biomass fuels :(Dia4-10mm,or bigger)
Without dust ,smokeless, Cleanliness.no CO, pollution-free.
High density and heat value, easy burn ,low cost ,convenient use.
2.for animal feed :(dia 2.5 -6mm,or bigger)Taste good ,high-usage
Usage of the machine:
It is used to produce pellet feed for pig, cattle, sheep, rabbit, chicken, duck, fish,etc; or To make inorganic fertilizer granule
it is also used to produce the wood pellet for fuel.
The requirement of raw material:
below 6mm powder, if your raw material is straw, wood branch , corn husk and so on, you should grind them into powder at first, and then you can directly use the machine.
Version B are driven by e-motor, without extra cabinet and cover on the motor.
Version C are the first improved models with extra cabinet and closed house on the motor.
As for the die size, you can choose from 2.5mm to 10mm according to your needs.
| MODEL NO. | OUTPUT (kg/h) | POWER (HP or KW) | SIZE (cm) | NW/GW (kg) | Qty/20’FCL | Remak |
KL120A | 90-120 | 7.5hp | 76*43*71 | 80/100 | 90 | gasoline engine |
| KL120A | 100-130 | 8hp | 87*44*73 | 120/140 | 90 | diesel engine |
| KL120B | 75-100 | 2.2kw/220V | 75*32*61 | 80/100 | 168 | CE motor |
| KL120B | 75-100 | 3kw/380V | 75*32*61 | 80/100 | 168 | CE motor |
KL150A | 110-210 | 7.5hp | 76*43*71 | 95/115 | 84 | gasoline engine |
| KL150A | 120-220 | 8hp | 87*46*73 | 120/140 | 84 | diesel engine |
| KL150B | 150-200 | 4kw/380V | 75*35*65 | 95/115 | 126 | CE motor |
KL200A | 250-350 | 15hp | 118*56*95 | 280/310 | 40 | diesel engine |
KL200B | 200-300 | 7.5kw/380V | 100*43*95 | 200/230 | 60 | CE motor |
KL200C | 200-300 | 7.5kw/380V | 100*46*90 | 200/230 | 60 | CE motor |
KL230A | 350-500 | 22hp | 118*56*95 | 280/310 | 40 | diesel engine |
KL230B | 350-450 | 11kw/380V | 114*47*97 | 290/320 | 45 | CE motor |
KL230C | 350-450 | 11kw/380V | 114*54*93 | 290/320 | 45 | CE motor |
KL260A | 300-500 | 30hp | 184*70*116 | 450/480 | 16 | diesel engine |
| KL260B | 400-600 | 15kw/380V | 120*52*107 | 330/360 | 40 | CE motor |
| KL260C | 400-600 | 15kw/380V | 122*53*107 | 330/360 | 40 | CE motor |
| KL300A | 600-850 | 55hp | 200*60*123 | 520/560 | 16 | diesel engine |
| KL300B | 700-800 | 22kw/380V | 127*52*107 | 410/450 | 30 | CE motor |
| KL300C | 700-800 | 22kw/380V | 128*58*105 | 410/450 | 30 | CE motor |
| KL360A | 700-950 | 55hp | 227*62*126 | 600/620 | 16 | diesel engine |
| KL360C | 700-950 | 22hp/380V | 134*58*106 | 470/500 | 30 | CE motor |
| KL400A | 800-1100 | 55hp | 227*62*126 | 750/780 | 16 | diesel engine |
| KL400C | 800-1100 | 30kw/380V | 145*62*115 | 630/660 | 25 | CE motor |
First ,thanks for you are interested in our pellet mill .If my TM isn't online ,please send email .We are the reliable supplier,if you want to get good price and quality,please contact us.
Final pellet packed in the bags for sell.
Load to the container:
Pellet press machine (pellet mill) are our mainly products. We have exported them to many countries around the world many years.
Factory basic information:
Laizhou chengda machinery co.,ltd was found in 1992 years, mainly produce the flat die feed pellet mill and wood pellet mill.
all the product 90% are export to EU ,USA, AFRICA, And so on.
at the same time , we provide the product for more than 50 trading company in China.

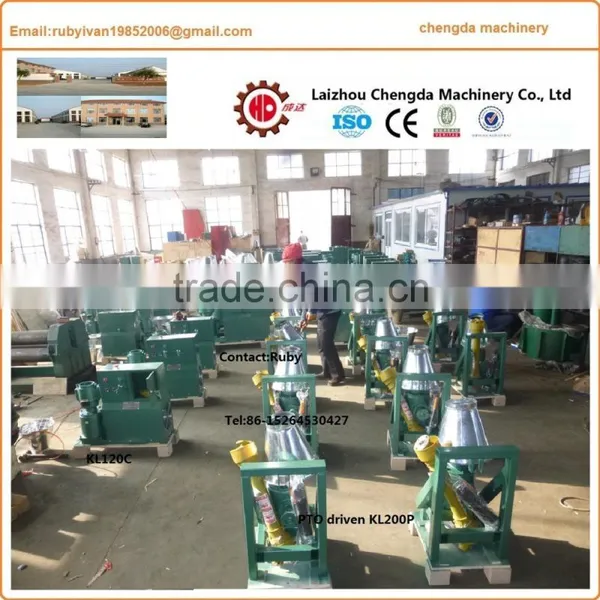

Over view of our factory
Quality Certification :
Contact information:
Laizhou chengda machinery co.,ltd
TEL:0086-15264530427
E-MAIL: rubyivan19852006( at)
skype: rubyivan200612101020
Google talk:rubyivan19852006(at)
