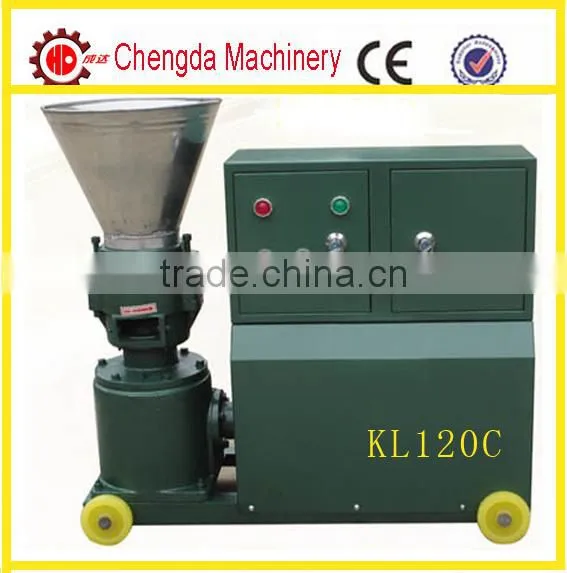

KL120C Feed Pelletizer Machine , Feed Pelletizer Making Machine, Feed Pelletizer

KL120C Feed Pelletizer Machine , Feed Pelletizer Making Machine, Feed Pelletizer photo-1

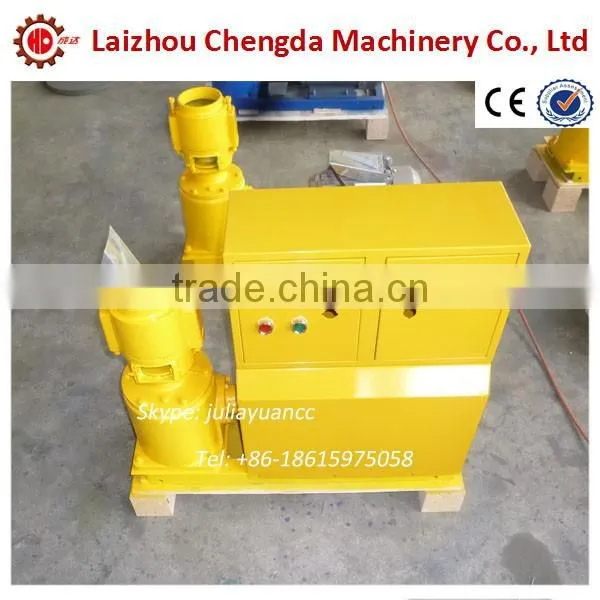

KL120C Feed Pelletizer Machine , Feed Pelletizer Making Machine, Feed Pelletizer photo-2
KL120C Feed Pelletizer Machine , Feed Pelletizer Making Machine, Feed Pelletizer photo-3
KL120C Feed Pelletizer Machine , Feed Pelletizer Making Machine, Feed Pelletizer photo-4

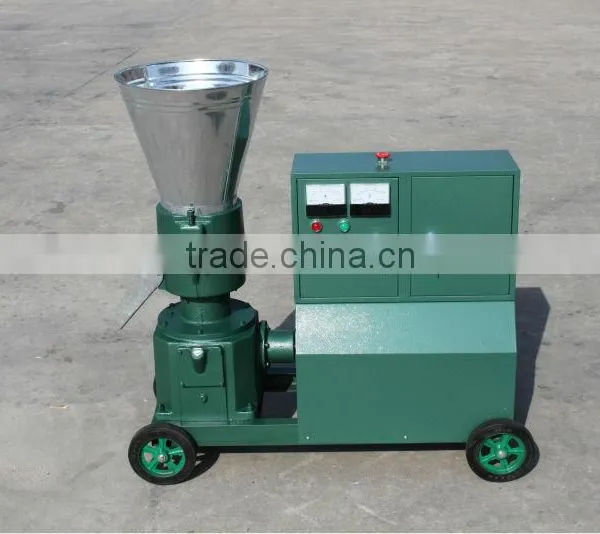

KL120C Feed Pelletizer Machine , Feed Pelletizer Making Machine, Feed Pelletizer photo-5
KL120C Feed Pelletizer Machine , Feed Pelletizer Making Machine, Feed Pelletizer photo-6
US$ 400 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Chengda Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Chengda Machine
Model Number 120B/150B
Voltage 380V
Power(W) 3kw
Dimension(L*W*H) 76*43*71cm
Weight 80kg
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Home use wood pellet mill wood pelletizer Product Description
If the below model can not meet your demand, feel free to Email me .
I will suggest you other model.
Believe me, there will be one model and patten can meet your demand.

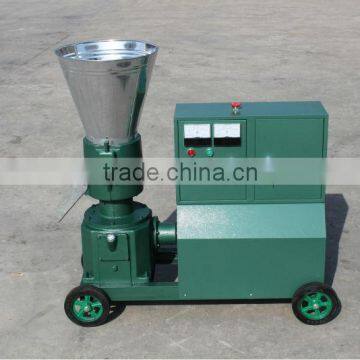

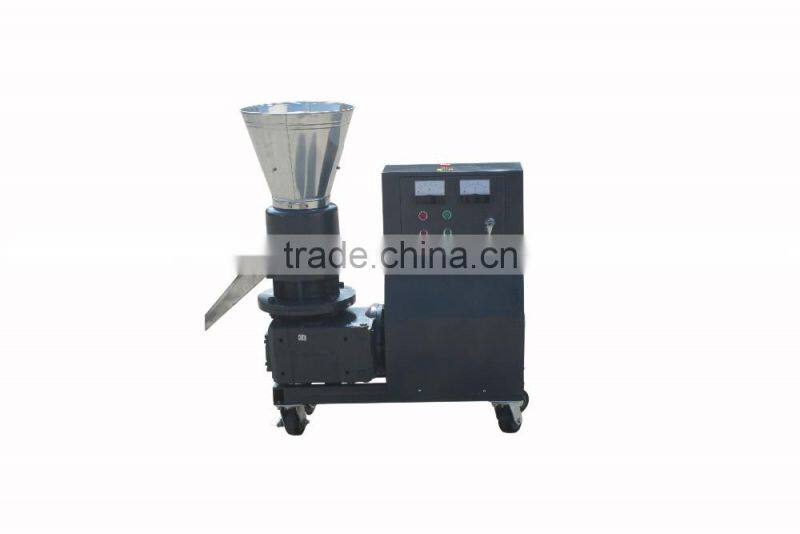

Home use wood pellet mill wood pelletizer Flat Die Wood Pellet Machine
Our flat die pellet machines are devided into two series, the KL series pellet mills and the MKL series pellet mills.
KL series pellet mills can both press feed pellets and wood sawdust pellets, but it's better to make animal feed pellets.
MKL series pellet mills have the special design for making wood pellets.
Small Wood Pellet Press Machine specially designed for mass industrial production of wood pellets.
The raw materials are easy to obtain, like groundnut shell, sawdust, paddy straw, wheat straw, palm husk, rice husks, etc and forestry wastes.
The final pellets can be used for industrial boilers and large power plants as well as home heating.

Model
Power
Die Diameter
Die Hole Specification
Saw Dust Capacity
Feed Capacity
KL120C
3 kw
120 mm
2.5-10 mm
40-60 kg/h
60-100 kg/h
KL150C
4 kw
150 mm
2.5-10 mm
50-90 kg/h
90-120 kg/h
KL200C
7.5 kw
200 mm
2.5-10 mm
110-140 kg/h
200-300 kg/h
KL230C
11 kw
230 mm
2.5-10 mm
150- 190 kg/h
300-400 kg/h
KL260C
15 kw
260 mm
2.5-10 mm
220-280 kg/h
400-600 kg/h
KL300C
22 kw
300 mm
2.5-10 mm
300-360 kg/h
600-800 kg/h
KL360C
22 kw
360 mm
2.5-10 mm
300-380 kg/h
700-900 kg/h
KL400C
30 kw
400 mm
2.5-10 mm
400-550 kg/h
900-1100 kg/h

Home use wood pellet mill wood pelletizer What are the differences between KL type pellet mills and MKL type pellet mills?KLtype, literally is called rotating die type while MKL type is called rotating roller type. Mechanically, the prominent difference lies in motion pattern of die and roller, and transmission components. In terms of price, with the same configuration (capacity, power, etc), KL type pellet mill is cheaper than MKL type because the latter has smarter design of pelletizing process and a better gearbox, though both types of pellet mill are competent of making quality pellets



1. Pellet press can make all kinds of bio-mass material to be solid pellets which is for burning fuel or animal feed.
2. We have new improved models for wood pellet making. Specially design and improved machines according to European standard, with closed house to cover motor, CE electrical parts & insolated protective plate for the electrical panel.
3. Our pellet mill also can process all kinds of sawdust. Paddy Straw, Sunflower Stalk, Forestry Wastes, Wood Chips, Chemical And Many Other Wastes Or Solid Powder Material.
4. Our pellet mill have CE certificate, Which all parts can meet EU standard

Certifications

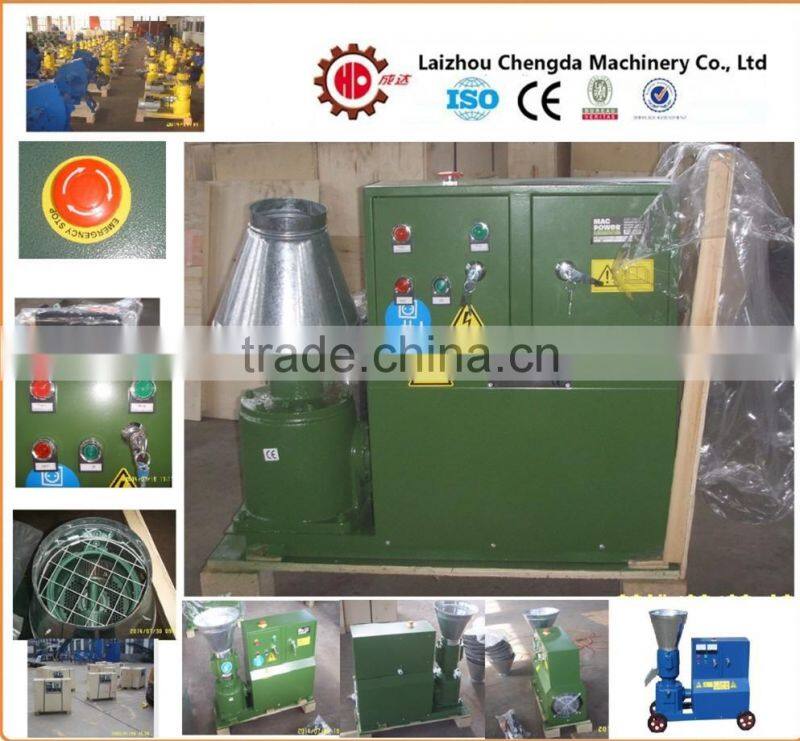

Detailed Images

Machine Parts

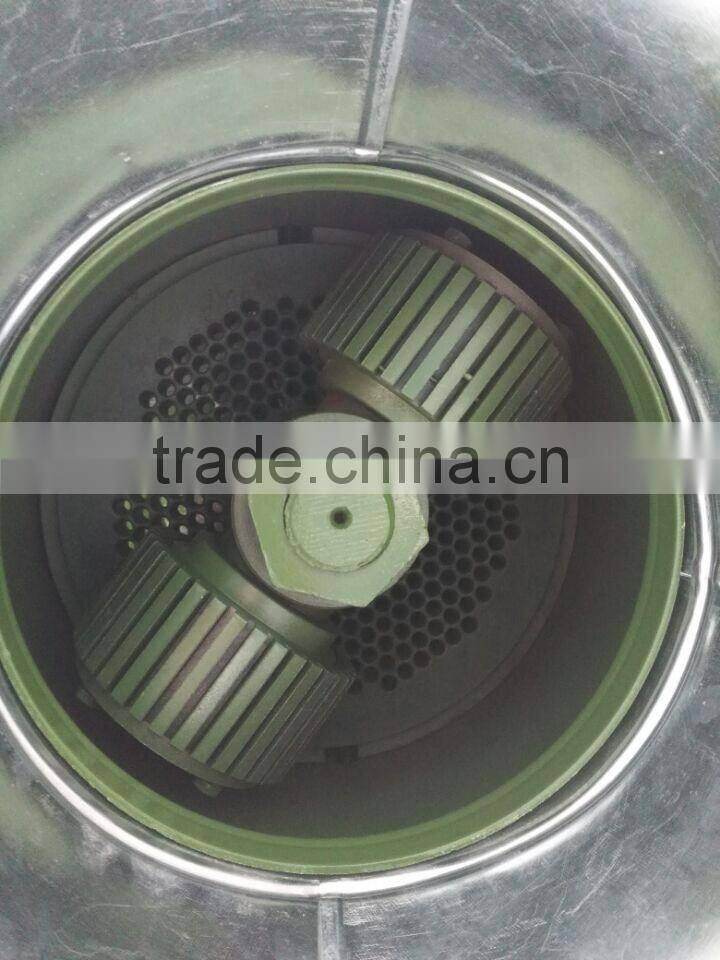

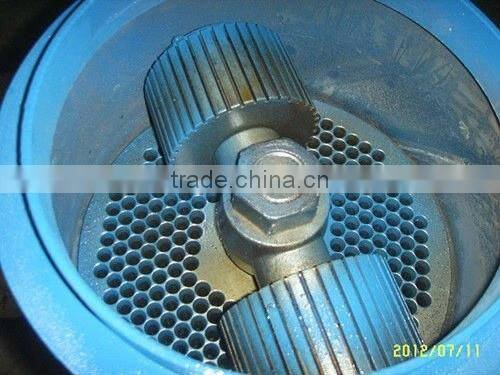

Name: Roller
Brand: chengda
Original: China, Shandong

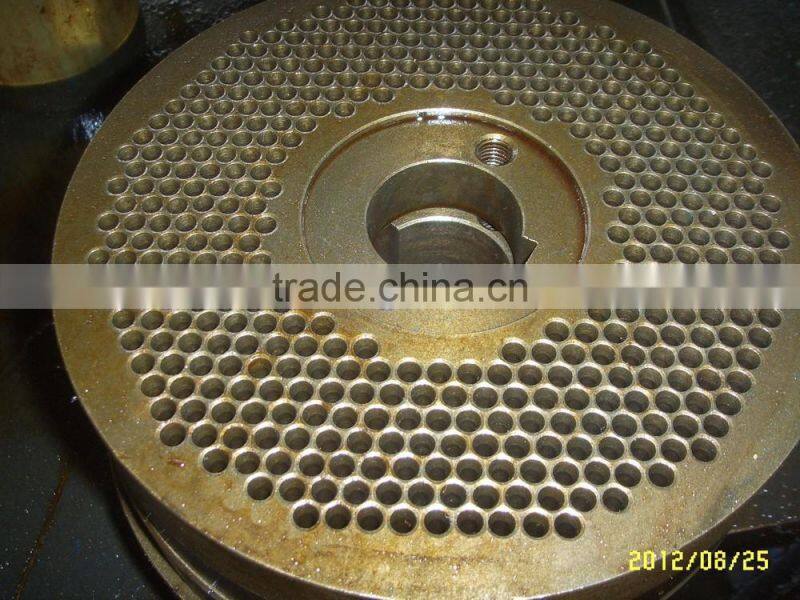

Flat die adopt high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long working life. It is recommended replace roller and die at the same time.

Main Features

Name: Roller

Brand: chengda
Original: China, Shandong
We have several diameter for your choose, and the size can be customized according to your requirements. The raw materials also made of high quality wear-resisting alloy steel.high quality alloy steel material, you can choose 2.5 mm,3 mm,4 mm,5 mm,6 mm,8 mm,10 mm according to your demand.

Machine Parts

Name: Roller
Brand: chengda
Original: China, Shandong
Flat die adopt high quality wear-resisting alloy steel, which are processed by special heat treatment, high hardness, long working life. It is recommended replace roller and die at the same time.

Our Service
1. The TM is avaliable for 12 hours in a day and will reply you within 12 hours if you have any inquiry about our products.

2. We provide 1 year guarantee.

3. We provide english manual and video for installation and operation.

4. We can send technicians for installation and commissioning, training if needed.


Packing & Delivery
Packaging
Size
75(L) * 35 (W) * 65 (D)
Weight
100 kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
