Help CenterWood Sawdust Hammer Mill Cf420a for Sale
Related Products
-
Wood Sawdust Machine Cf420a for SaleUS$ 1,000 - 1,400MOQ: 1 Set -
2017 Hot Sale Coconut Shell Crusher Machine With CEUS$ 700 - 900MOQ: 1 Set
-
Animal Feed Crusher Hammer Mill With CycloneUS$ 800 - 1,500MOQ: 1 Set
-
Electric Cob Straw Rice Husk Peanut Shell Wheat Stalk Hammer Mill Coconut Crusher Machine With CEUS$ 800 - 1,500MOQ: 1 Set
-
Diesel Wood Straw Hammer Mill Crusher With CycloneUS$ 3,000 - 4,000MOQ: 1 Set
Sawdust hammer mill working principle
The material to be crushed enters the wood shredder machine through gravity feed hopper having an adjustable slide to control the feed material. The material is crushed between the hammers and serrated liners. A powerful blower in wood shredder machine continuously sucks the ground material through a screen classifier and conveyed through the pipe into the cyclone for bagging. The blower maintains constant airflow in the wood shredder machine chamber in order to obtain a cool product and continuously cleans the screens, thus increasing the output. Particle size of the ground material can be varied over a large range by using sieves with the desired openings of corn wood chipper shredder for sale.
Main Features of Sawdust machine
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same crusher machine.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing

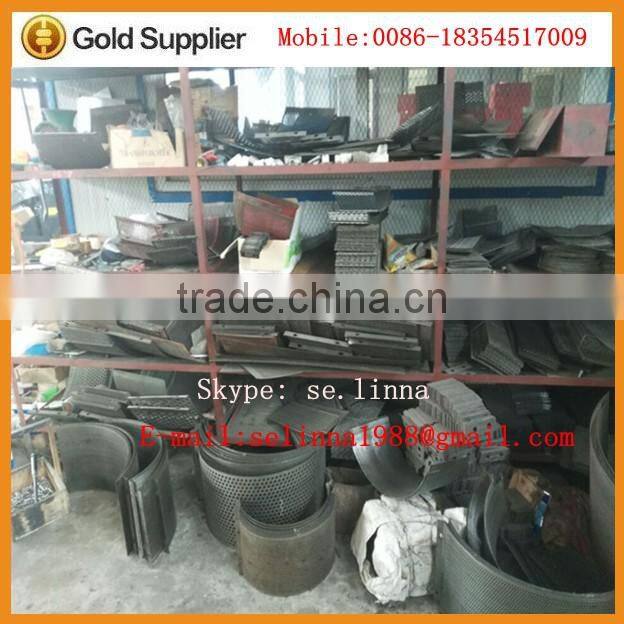

Machine Parts
Name: Sieve/ Screen
Brand: Chengda
Original: Shandong
The thickness is 2mm or 3mm, hole diameter can be 2mm, 4mm, 6mm, 8mm and 10mm. Or we can do it as your demand.
Main Features

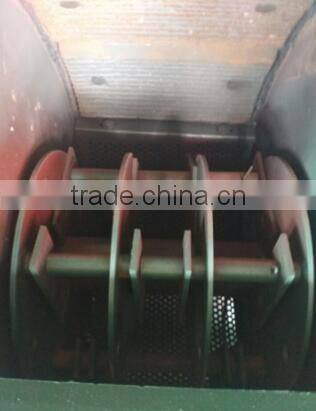

Name: Hammers/ blades
Brand: Chengda
Original: Shandong
This model of CF420A 22HP sawdust machine has 16 pieces hammers.
Machine Parts
Name: body of sawdust
Brand: Chengda
Original: Shandong
This is the main part of a sawdust, include sieve, hammers and apron.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
A: We are a factory and trading company.
2.Q:How does your factory do regarding quality control?
A: "Quality is priority. We always attach great importance to quality controlling from
the beginning to the end. Our factory has gained CE, ISO9001 authentication.
3.Q: I don't know how to use this machine,can you help me?
A: Yes ,Our techinical will tech you hoe to use it and basic maintains when you place
an order.And our engineers also can installation for you and provide a wholle week train for you to help you use the machine.
4.Q: Why do we choose your company?
A: We have more 10 years of experiences in this field,and can provide high
quality product and competive price and good service.
5.Q: How long is your guarantee for hammer mill?
A: One year from the equipment from clients receive the products.we provide full-life maintenance service .All our products have quality assurance.
