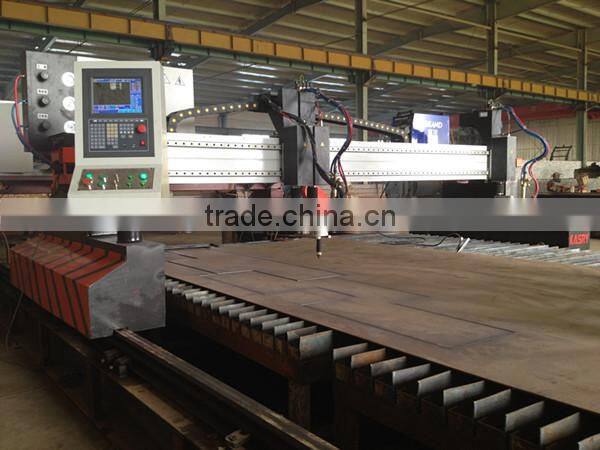

CE quality key cutting machine with usb connection

Specifications

CNC mature tech cutting machine
USB connection available
Easy operation automatic control
Flame and plasma power
High QC

With mature Tech supply you differnt type cutting machine such as portable type, Desk type, Gantry type, with flame and plasma as main power, can cut different size metal with different thickness, give you the easiest operation and with the perfect moulds.





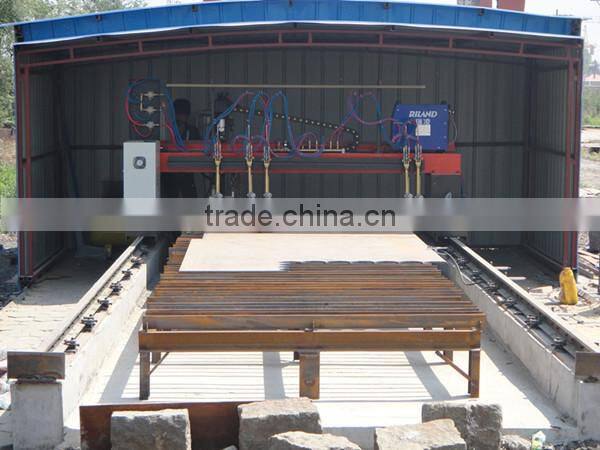

Production shows on worksite:







1.How to use



1:Make a cutting drawing by CAD software



2:Use fast CAM to edit the drawing and nesting then come out the NG code file



3:Loading the NG code file to the machine by USB flash disk



4:Start the cutting by CNC cutting machine automatic



2. Features



With reasonable overall structure, this product is the lightest, most economical cutting machine.



1. Transversal effective cutting width is 1.0m,1.2m and longitudinal effective cutting length is 1.5, 2m, 2.5m.



2. With automatic ignition and the electronic lifting system,



3. two cutting ways optional: plasma and flame.



4. It can be applied to metal materials or non-ferrous metal cutting of medium and small enterprises.



5. can be used in either indoor or outdoor situations. 4-axis can be expanded linkage functions.



6. Any complex plane Graphice software.



7. Flexible, easy to operate, can moves can be cut, Using USB Flash Drive reading procedure and timely upgrad any time, and do not occupy fixed sites.

.

3. Characteristics of mechanical structure:



1. Guide rail, cross-beam: select and use integrated guide rail and cross beam specially made of aluminum alloy, which is designed according to mechanics principle and finely machined through multiple working procedures. Each guide rail and cross beam have high pressure resistance ability, high accuracy, low tolerance, and non-deformation after long operation. The cross beam can be dismantled, facilitating transfer and packing as well as transportation, and can keep crossbeam verticality unchanged.



2. Fully-new combined case structure design is used, cross arm and main console as well as mechanical and NC parts can be disassembled and assembled. The case exterior is equipped with USB interfacecontrol cable interface and plasma arcing interface. The case interior is additionally equipped with fan cooling device to prevent over-temperature and ensure the stable operation of the machine.



3. Main console which is more humanized faces to cutting site directly, and broadens the operating view angle as far as possible.



4. The traveling part uses precise non-clearance gear, rack gear driving to ensure the accuracy and eliminate the clearance.



5. The motor uses stepping motor driving technology and high subdivision drive, with high accuracy and stable operation.



6. The stainless steel square pipe is additionally provided on the top of cross beam, facilitating to fix plasma cables. It is more humanized.



7. We also prepare heat-insulated splash guard for you to keep main machine away from high temperature, and ensure more stable operation of the machine.



8. We also prepare the sleeper for you to facilitate the directly cutting of equipment on the steel plate.



4.Main Technical Performance Indexes of products:



	Installation mode	with combined installation and random movement, without occupying fixed site, and directly cutting on steel plates
2	Cutting shape	able to program and cut the steel plate parts with any plane shapes formed by straight lines and arcs;
3	LCD Display Dimension	7.0Inches
4	Effective Cutting Width (X axis)	1500mm,1700mm
5	Effective Cutting Length (Y axis)	2000mm--6000mm
6	Cross Beam Length	1200mm 1500mm 1700mm,2000mm
7	Longitudinal Rail Length	2500mm,3000mm,3500mm,6500mm
8	Cutting Speed	0-8000mm per minute
9	Plasma Cutting Thickness	1--20mm ( Depends on plasma power source capacity)
10	Flame Cutting Thickness	3-200mm
11	Drive Mode	Single-side and Double-side
12	Cutting Mode	flame and plasma
13	Ignition device	Auto ignition device
14	Height regulating device	Electric adjustable high Arc voltage height and adjustable capacitance
15	File transmission	USB transmission
16	Gas Pressure	Max. 0.1Mpa
17	Oxygen Pressure	Max.0.7Mpa
18	Cutting Gas	Acetylene/Propane
19	Plasma Power Source	Hypertherm PowerMAX65/85/1650 or other
20	Plasma Air	Only pressed Air
21	Plasma Air Pressure	Max. 0.8Mpa
22	Cutting precision	±0.5mm National standard JB/T10045.3-99
23	Control accuracy	±0.01mm
24	Power Supply Voltage/Frequency	220V/110V 50HZ / 60HZ
25	Rated Power Supply	500W
26	Working Temperature	-10°C-60°C. Relative Humidity, 0-95%.

Our workshop:
