Specifications
flame and plasmaPrecise position,USB Port
Reliable and Stable CNC Operation
Easy operating

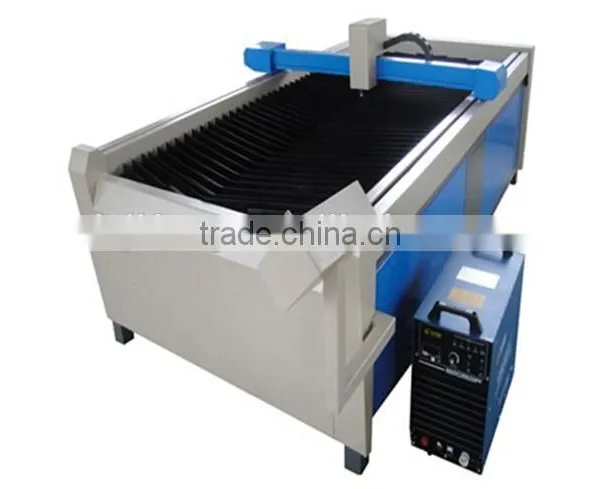

cnc plasma table cutting machine
1 |
Installation mode |
with combined installation and random movement, without occupying fixed site, and directly cutting on steel plates |
2 |
Cutting shape |
able to program and cut the steel plate parts with any plane shapes formed by straight lines and arcs; |
3 |
LCD Display Dimension |
7.0Inches |
4 |
Effective Cutting Width (X axis) |
1200mm, 1500mm |
5 |
Effective Cutting Length (Y axis) |
2000mm, 2500mm,3000mm, 6000mm |
6 |
Cross Beam Length |
1700mm,2000mm |
7 |
Longitudinal Rail Length |
2500mm,3000mm,3500mm,6500mm |
8 |
Cutting Speed |
0-4000mm per minute |
9 |
Plasma Cutting Thickness |
2--20mm ( Depends on plasma power source capacity) |
10 |
Flame Cutting Thickness |
6--150mm |
11 |
Drive Mode |
Single-side |
12 |
Cutting Mode |
flame and plasma |
13 |
Ignition device |
Auto ignition device |
14 |
Height regulating device |
Electric adjustable high Arc voltage height and adjustable capacitance |
15 |
File transmission |
USB transmission |
16 |
Gas Pressure |
Max. 0.1Mpa |
17 |
Oxygen Pressure |
Max.0.7Mpa |
18 |
Cutting Gas |
Acetylene/Propane |
19 |
Plasma Power Source |
Hypertherm PowerMAX65/85/1650 or other |
20 |
Plasma Air |
Only pressed Air |
21 |
Plasma Air Pressure |
Max. 0.8Mpa |
22 |
Cutting precision |
±0.5mm National standard JB/T10045.3-99 |
23 |
Control accuracy |
±0.01mm |
24 |
Power Supply Voltage/Frequency |
220V/110V 50HZ / 60HZ |
25 |
Rated Power Supply |
200W |
26 |
Working Temperature |
-10°C-60°C. Relative Humidity, 0-95%. |
Electrical part:
1. The electrical part, parts which are easily connected with the external environment and external electrical equipment use LV 24V power supply to ensure the safety of equipment and person.
2. All main mechanical components and electronic parts in this machine are the top level products of well-known brands at home and abroad. They can operate without noise, have strong durability, high stability, and work for 72 hours without interruption.
3. The thermo-stable solenoid valve adopted by us (matched with solenoid valve for water-supply/drain system in main stadiums for 2008 Beijing Olympic Games, i.e."Bird Nest" project and “Water Cube” swimming gym) not only perfectly solves the problem that common solenoid valve cannot be closed arising from high temperature, but also avoids repeatedly adjusting flames due to separately controlled air circuit.
4. Electronic clutch operating button facilitates to realize fast locating (it is also used as emergency stop button).
5. 1.8° stepping motor, with high subdivision driver, more stable running, almost without vibration of the machine
