Home > Products > Cutting machine > 5 axles plasma cutting machine /air pipe intersecting line cutting machine 3d cutting machine

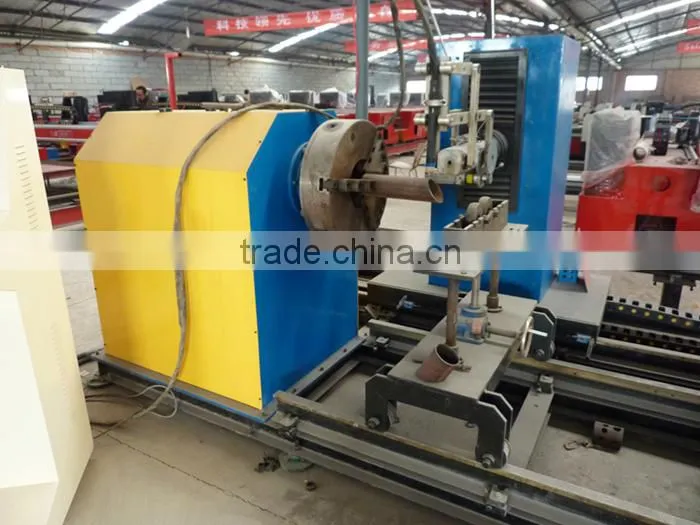

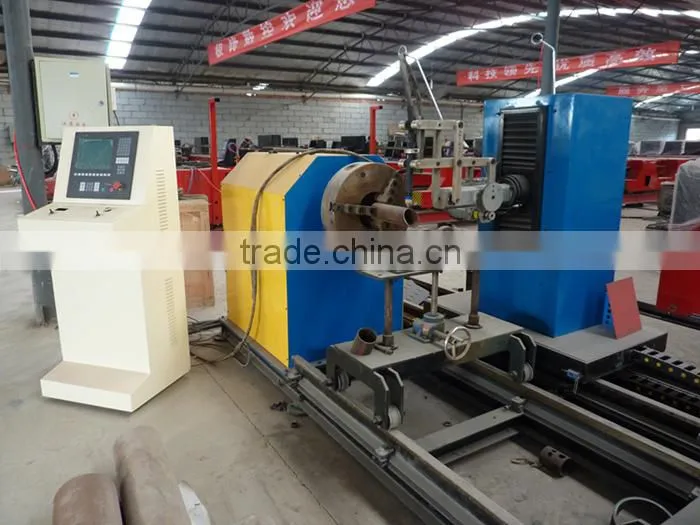

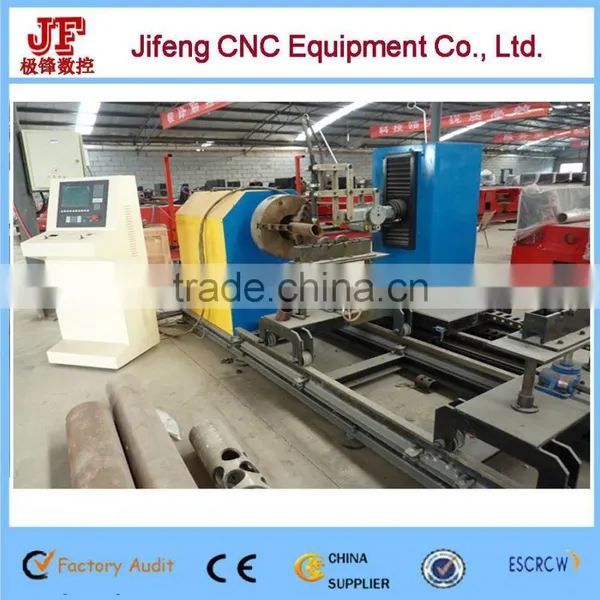

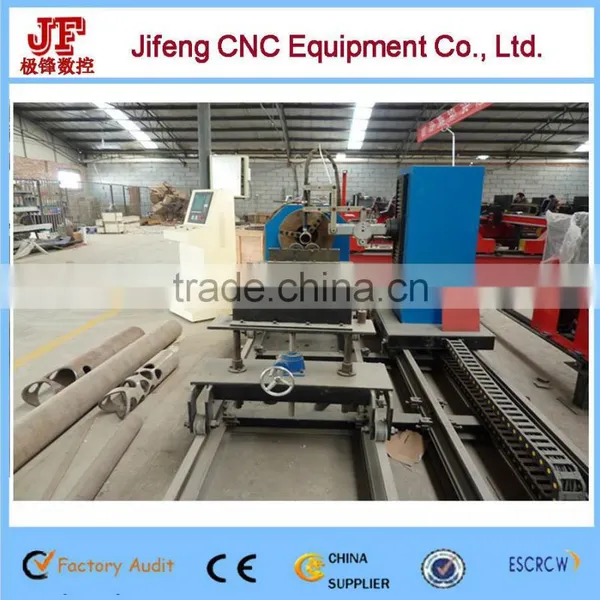

5 axles plasma cutting machine /air pipe intersecting line cutting machine 3d cutting machine
- 30 Set / Sets per Month
- QINGDAO PORT
- T/T Credit Card
-
1600 Ton Heavy Duty Hydraulic Used Car Shell Gantry Type Shear Machine OEM Available
-
4axis 5axis Large size and thickness(0-40mm) cnc plasma cutting machine
-
Automatic cnc plasma cutting machine gate cnc router 120a/200a
-
Fully automatic 20mm plasma cutting machine custom size high quality
-
200mm pipe table axe for plasma metal cutting machine spare parts in weifang
-
China gantry cnc plasma and oxy cutting machine dust removal equipment
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Jifeng |
| Model Number: | JF-X4040 | Voltage: | 380/220V | Rated Power: | 10kw |
| Dimension(L*W*H): | as required | Weight: | as required | Certification: | CE |
| Warranty: | 1 year |
Product Description
-----cnc cutting machine/ plasma cutter in hot sale -----
- Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
- Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.
- Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
- Plasma torch power supply and supporting all famous brands, a number of national patents by the manufacturers.
Specification:
| Model | JF-X4040 |
| Pipe cutting diameter | 40-400mm |
| Cutting mode | Plasma only,flame only,plasma and flame |
| Cutting speed | 0-4000mm per minute |
| Plasma cut thickness | Depend on current of plasma power source |
| Flame cut thickness | 5-60mm |
| Groove angle | 0-45° |
| Pipe Chuck | 3-jaw chuck |
| Cutting length | 2000-12000mm (Can be as required) |
| Numberof Control Axes | 2--6 |
| Height range | 0-500mm |
| Height adjuster mode | Automatic(include 24DC geared motor) |
| Flame Ignition device | Auto ignition |
| Accurate | ±0.03mm |
| Power source | 220V,380V/50HZ |
| Driving mode | Stepper mode,dual driving |
| Operation system | Starfire control system |
| LCD Display | 7.0 inch Touch screen |
| Language version | English/Chinese |
| File transmission | USB transmission |
| Flame mode Gas source | Acetylene/Propane with oxygen |
| Plasma mode Gas source | 0.4-0.5MPa pressed air |
| Warranty | 1 Year |
| Plasma Arc strike | Untouched |
| Certificate | CE ISO |
| Packing | Plywood case or as required |
Product process:
Every work step by careful inspection!
Main Parts:
The plasma cutting machine by HUANGYUAN WOLDER.
Control system is Beijing Stuart .
Work site and Sample :
Cutting Drawing
Delivery and package:
Safety protect,make sure the equipment well arriving the forward place!
After sale service:
1. 12 mouths quality guaranty the machine with main parts are free of charge if there is any problem in the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.
Terms of Payment:
30% by T/T in advance, rest 70% by T/T before shipment
L/C or Western&Union
Our company plant:
If you have any question,plz contact with me anytime!
Dezhou Jifeng CNC Equipment Co., LTD.
Contact:Mike Chen
Mobile: 0086-18753468982
TEL: 0086-5342316385
Skype: song.mike6
