Oil Press machine

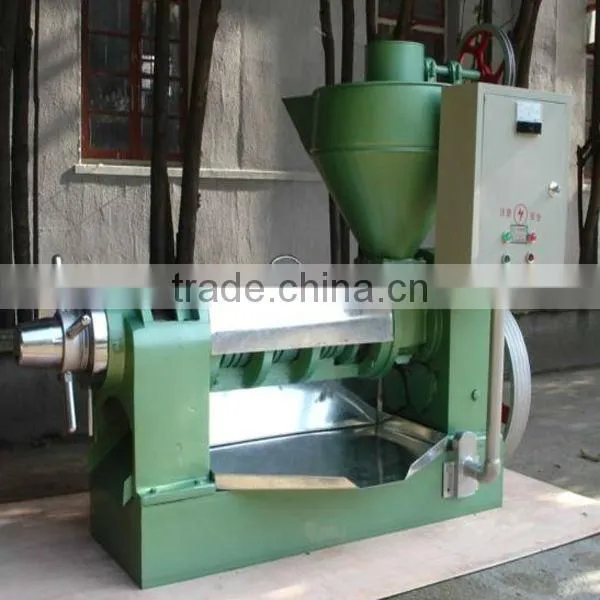

Oil press machine 6GL-68A is mini-type equipment which is widely used in crushing vegetable oil seeds. This mini oil press has advantage of simple desigh, easy to operate and low maintenance. At the same time it can be designed into C series and A series.
The mini oil press can be matched with filter press Model 6LB-350.250 for combined operation.
Oil Press 6GL-68 specification as below
Capactity: 0.8-1t/d
Powe: 5.5 kw
Size: 880*440*765 mm
Weight: 140 kg
| Raw Material | Capacity(kg/hr) | Output rate(%) | Output Efficiency |
| Cotton seeds | 50-60 | 12-14 | 65-72 |
| Soy bean | 28-37 | 10-16 | 61-65 |
| Peanut Kernel | 45-60 | 35-45 | 91-92 |
| Rape seeds | 45-60 | 30-38 | 82-85 |
Oil Press machine 6GL-68 features:
- Cast iron machine base:
- Special gear box structure make the rotating speed averagely;
- Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
- Cake thickness can be adjusted once the machine stop running;
- Superior grade oil cake;
- Compact structure, stable function, simple maintenance.
Images of oil filter press
|
|
| 6LB-350 oil filter press | 6LB-250 Oil filter press |
Technical Data of Oil filter press
| Model | No. of filter plates | Dimension of filter plate | Working pressure | Productivity | Power | Dimension | Weight |
| 6LB-250 | 13PCS | 250*250mm | 0.3-0.4MPa | 100kg/h | 0.75kw | 780*530*670mm | 155kg |
| 6LB-350 | 25PCS | 350*350mm | 0.3-0.4MPa | 200kg/h | 1.1kw | 1300*750*700mm | 470kg |
oil press machine 6GL-68A
6GL-68A mini oil press is matched with gearbox for saving power and not any noise when working.
Capacity: 50kg/h for oilseeds
Power: 4-5.5 kw/ 240v/ single phase
Size: 930*575*1055mm
The other technical data of oil press macine:
|
Type Data |
Main motor |
Power of electrical pipe(Kw) |
Capacity (T/D) |
Size(m) |
Weight (Kg) |
Volume of vacuum pump(L) |
6GL-80A |
5.5+1.1 |
1.2 |
2-3 |
1.8/1.4/1.8 |
820 |
6 |
85A/100A |
7.5+1.5 |
1.2 |
3-4 |
2.3/1.75/2.8 |
980 |
9 |
105A |
11+1.5 |
3 |
4-7 |
12.5/1.75/2 |
1050 |
9 |
120A |
15+1.5/2 |
3.5 |
6-7 |
2.35/1.8/2.1 |
1200 |
9 |
130A |
15+2.2 |
3.8 |
9-12 |
2.5/1.9/2.2 |
1300 |
15 |
160A/165A |
18.5/22+1.5 |
4 |
12-17 |
2.6/1.9/2.25 |
1520 |
15 |
180A |
22-30+2.2 |
4 |
15-18 |
2.7/2.1/2.4 |
1750 |
15 |
