Hot Sale High Output Small Olive Oil Press

Small Olive oil press

oil press machine introduction

1.It’s a new kind of optimized automatically oil press based on all advantages of 6YL series, increased vacuum filter device, chamber, automatically heating device and control system.

2. Oil press is used in all kinds of oil plant such as coconut meat, palm kernel, cottonseed, sesame seed, rapeseed, sunflower seed, peanut, and soybean and powder oil materials and other wild plant oil materials. It is regeneration products for medium-small scale plant oil mill in country and private factory and ideal choice for user to realize well-off life.

3. The machine with fine figure, compact structure, easy installation, high autoimmunization rapid heating for chamber, pressing at random, high output rate, clear oil and pure flavor and so on.

Oil press machine technical parameter

6GL-68A Combined Oil Press

Handling capacity: 2-3t/24hours for oilseeds

Main power: 5.5+1.1

Weight: 350kg

Size: 1360*980*1240mm

Oil press machine 6GL-A Series Models available:

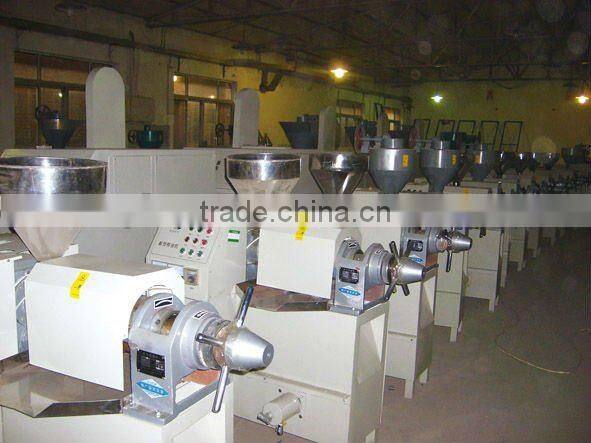

  Images Of Automatic Oil Press

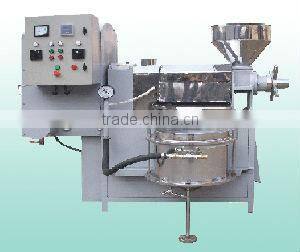

6GL-95A automatic oil press	6GL-80A Automatic Oil press

Spare Parts for Oil press machine

Rings for oil press	Gearbox for oil press
Umbrella for oil press	Big umbrella for oil press
Cake rings for oil press	Lock nut for oil press
Screw shaft for oil press

Work principle:

When oil press operating, the prepared materials enters pressing chamber from the hopper and then moves forwards by the rotating of pressing screw and is pressed under the high-pressure condition in the chamber, friction between material and screw between material and chamber will be created, which also creates friction and relative movement among material particles, on the other hand, root diameter of the pressing screw carries larger from one end to the other, hence, when rotating, it not only pushed particles moving forwards but turns them outwards as well, meanwhile, particles adjacent the screw will rotation along with screw’ rotating, causing every particle inside the chamber to possess different speed, therefore relative movement among particle creates heat which is necessary during manufacturing. because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil productivity.

The machine color can be choice.

For more  information, please contact us!
