cold oil expeller machine/ oil machine
1. Description
Its main features are:
1.Saving labor: it can save 60% labor for equal output and 40% labor cost per day
for one or two people are able to make production.
2.Widely-used: it can be used to completely press more than 20 kinds of oil crops,
such as peanuts, sesame, vegetable seeds, soybean, oil sunflower and flax
by third levels for one time.
3.Pure oil quality: the vacuum oil filtering is used to remove residue so as to
ensure the pure oil quality and meet the standard of health quarantine.
4.Small land-using: an area of 10-20 m2 workshop can meet the need of production.
The main advantage ,as follows,
1. Using vacuum filter, it is able to simply filter the crude oil after pressing
2. It is able to save labour, about 60% . One or two person is for per machine
3. Protection the environment, comparing with the traditional oil press machine,
it is about to meet the standard of green environment .
4. Low investment, get more profit
2.Technical parameters
| Name Model Parameter | GL-D 1685 | |
| Diameter of squeezing bolt | Ø 80mm | |
| Speed of squeezing bolt | 60r/min | |
| Diameter of internal Circle of pressing Chest | Ø 82mm | |
| Configuration Power | Main Engine | Y112M-6 5.5kw |
| Heater | 3KW | |
| Handling Capacity | 80-160kg/h | |
| Weight Of complete machine | 780kg | |
| External Dimensions | 1700*1300*1600 | |
| Raw Material | Capacity(kg/hr) | Output Rate(%) | Cake Residual | |
| Rape seeds | Hot pressing | 150-170 | 30-38 | 7.5-8 |
| Cold pressing | 75-95 | 28-35 | ||
| Peanut | Hot pressing | 150-185 | 35-45 | 7 |
| Cold pressing | 65-95 | 32-40 | ||
| Soybean | Hot pressing | 135-160 | 10-16 | 6.5-7 |
| Cold pressing | 70-105 | 8-14 | ||
| Sesame | Hot pressing | 150-185 | 44-47 | 6.5-7.5 |
| Cotton seeds | Cold pressing | 95-105 | 10-14 | 5.5-8.5 |
4.How to operate, as follows,
1. Ready the seeds
2. Adjusting the machine, such as, electricity, heating (if you cold pressing,
do not need open heating)
3. Open the machine, putting seeds into the feeder,
4. Seed into the screw bolt , beginning of pressing
5. The crude oil is out of the squeezing bolt, then flowing into the board ,
6. Then into the vacuum filter, using it for filtration
7. After filtration, the oil is out of the bottom of pipe
8. It is ok

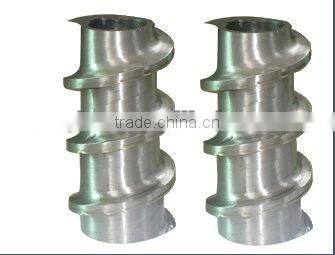

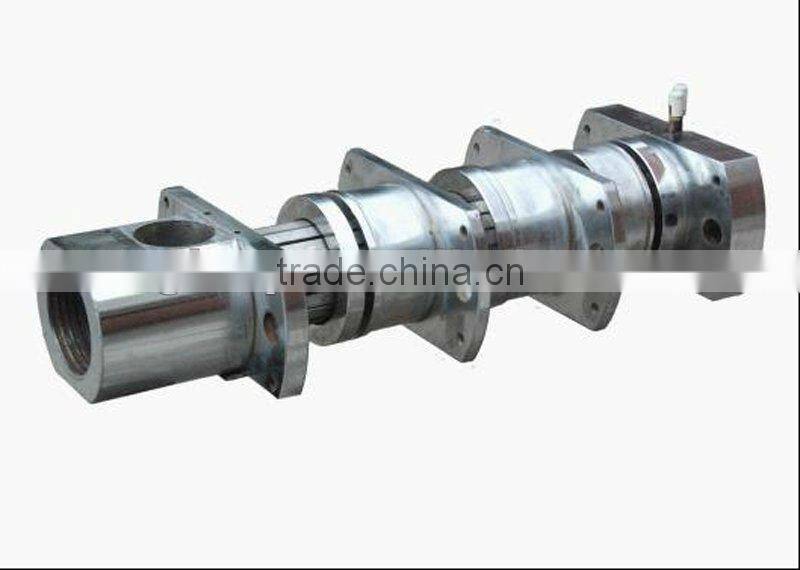

5.Main parts of the oil expeller machine
6.Oil cake
For more information, please contact us!
