3-5 mm Granulation 1T/H Wood Crusher/Sawdust Grinding Making Machine
Introduction of3-5 mm Granulation 1T/H Wood Crusher/Sawdust Grinding Making Machine
1.Our wood log sawdust machine is a new style and widely applied machine. It is mainly used in all kinds of crop stalk, cotton firewood, pine, miscellaneous wood, waste wood, bamboo straw, clover, peanuts shells, cotton seed fur, etc.
2.This series wood sawdust machine have the features of compact structure, cheap price, stable working condition, lower consumption, high capacity, good quality finished products, lower cost.
3.It can be widely used in paper inudstry, can be the previous work of wood charcoal production line and wood pellet production line, also can be used in breeding industry.
4.It's made of high manganese carbon steel, which has the features of anti-corrosion, longer service life, etc. Further, this series machine cutter is made of high quality alloy.
5.The final materials of wood sawdust machine can be used to make biomass pellet,
paper, pet net, and so on, so the wood crusher is widely used many field, such as charcoal
factory, biological power plant factory, sawmill incense factory, feed farms,mushrooms,
edible fungus base, landscaping engineering, chemical engineering, etc
Technical Parameter of 3-5 mm Granulation 1T/H Wood Crusher/Sawdust Grinding Making Machine
Technical Parameter:
Model:MG-WS800
Knife number:6pcs
Inlet size:230*190mm
Diameter of cutter:610mm
Size of knife:150*70*8mm
Production capacity:1-1.2T/Hour
Size of final granulation:3-5mm
Power:30kw
Dimension:2050*1030*1250mm

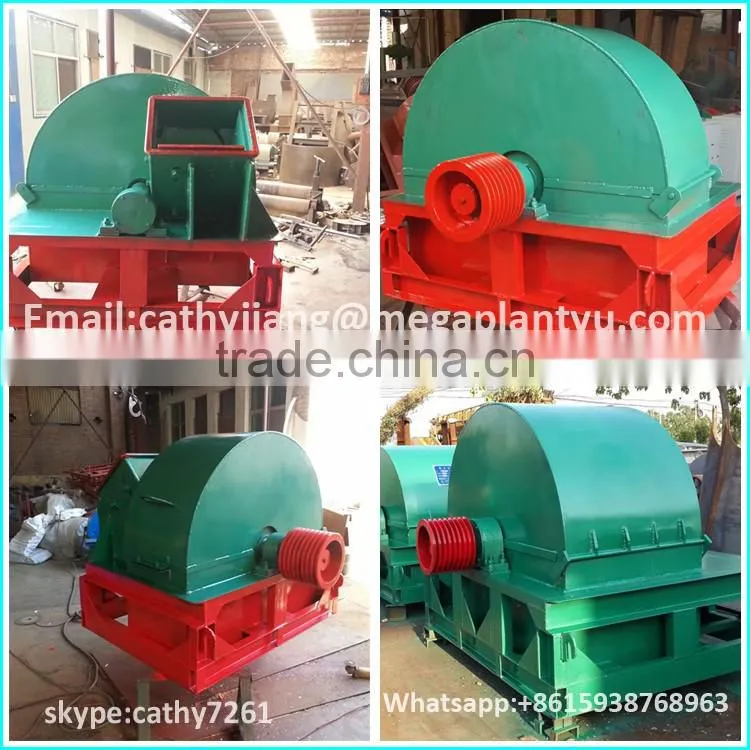

Photos of 3-5 mm Granulation 1T/H Wood Crusher/Sawdust Grinding Making Machine
Working principles of Wood Crusher/Sawdust Making Machine/Wood Powder Mag Machine
1).It's composed by host body, middle body and lower body such three parts;
1. Host body; 2.Blades; 3.The cutter; 4.Rotator; 5.Screen sieve; 6.Wind wheel;
7.Hopper; 8.Discharge hopper.

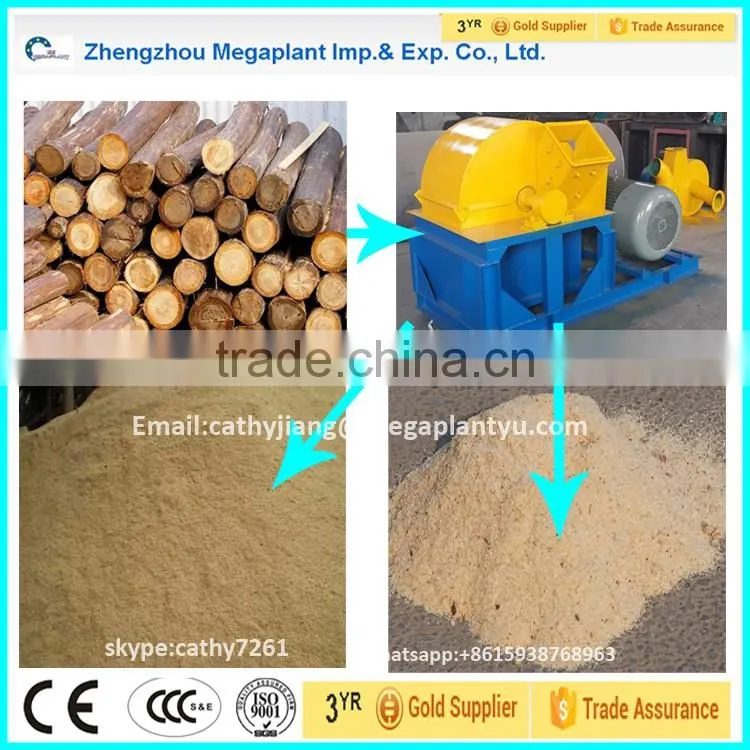

This wood sawdust machine is composed by host body, knife cutting part, chips re-crush part and sieving part ,ect. It combines both chipping and crushing in one machine, can make sawdust in one process, no need to use wood chipper for preprocessing of wood logs. To ensure security, the feed inlet of this crushing equipment adopts self-sction design to avoid serious damage to operators.
2).Crushing cutter includes 7-shape cutter, 1-shape cutter and centrifugal cutters.
3).Auxiliary equipments include fan, dust collector and powder collector, etc.
4).The crushing processing will be coarse crushing, fine crushing and high speed centrifugal crushing. Motor drives crushing rotor to do high speed rotation, which can make machine produces high speed airflow. And then high speed airflow produces high strength impact force, compression force, cutting force and friction force for raw materials. In this way, the machine achieves special crushing function.
5).The crushed materials enters analyzer under the high speed airflow force. At the same time, the materials also get both rotor centrifugal force effect and airflow centripetal force. So, when centrifugal force is stronger than centripetal force, fine powder enters powder collector, coarse powder enters second crushing chamber to be crushed fine powder.
Maintenance of Wood Crusher/Sawdust Making Machine/Wood Powder Mag Machine
1). The bearing should be timely charging butter, filling a butter after continuous work 3-4 hours, observation should be taken.
2). After a period of time, tightness of triangular belt should be adjusted it is advisable to
drop 6 -- 10 mm.
3). After work for one day, machine should be cleaned and checked whether there is cracks or
other problems.

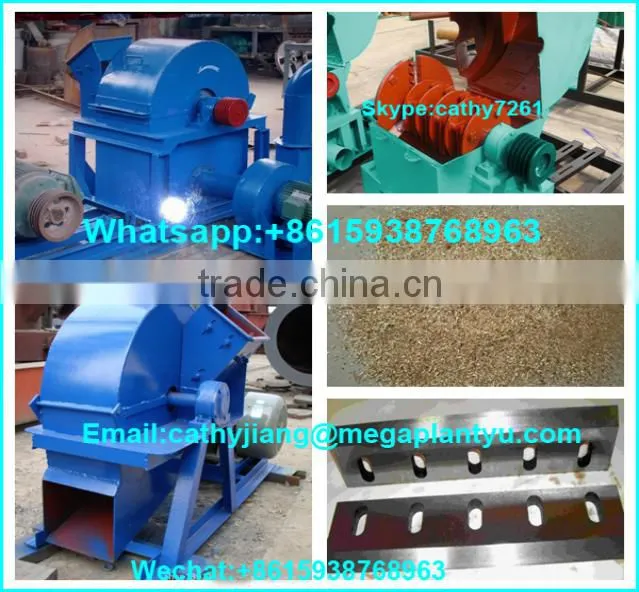

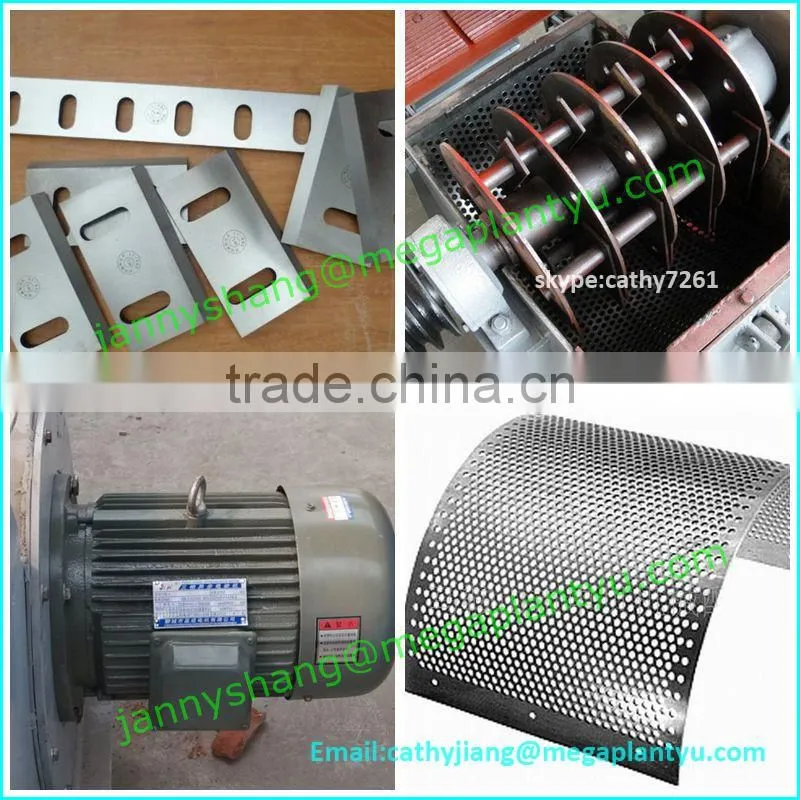

Main parts of Wood Crusher/Sawdust Making Machine/Wood Powder Mag Machine
