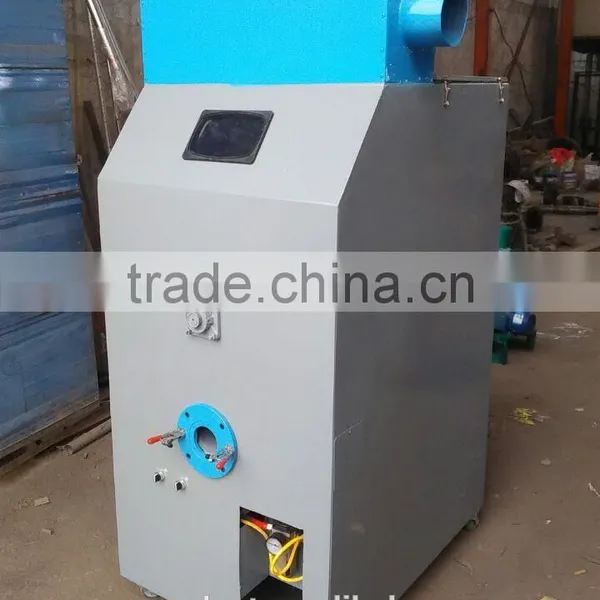

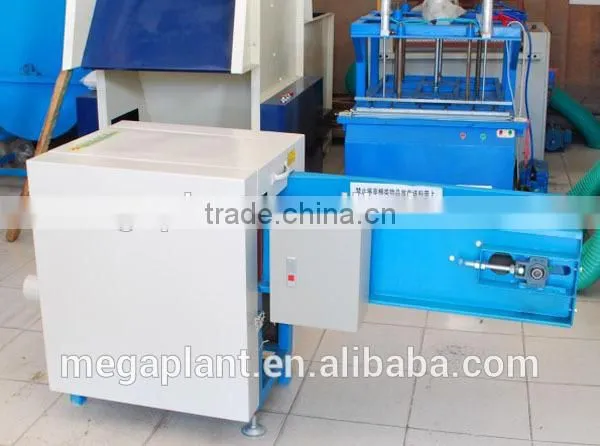

Fiber Opening And Filling Machine

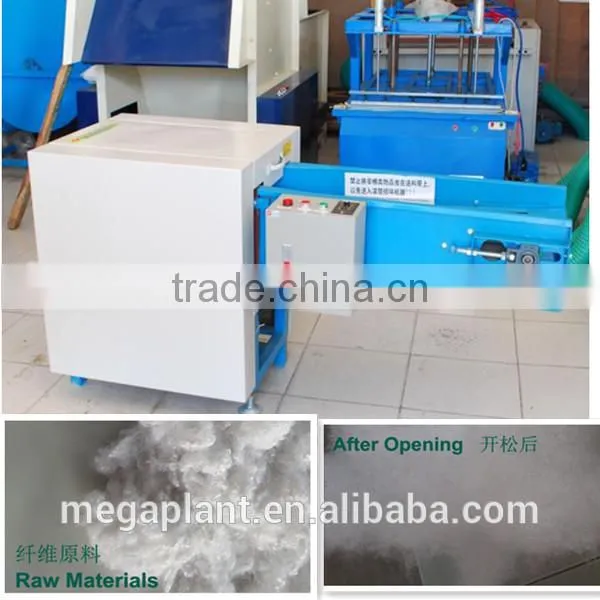

This machine is used to open Wool, polyester, cotton fiber, PPx cotton, cloth scrap etc .The frequency is Conversiable,You can adjust the speed of the conveyor to overcome the tranditional disadvantages – cotton in jam.
Application
to open Wool, polyester, cotton fiber, PP cotton, cloth scrap etc
System
Frequency Conversion. You can adjust the speed of the conveyor to cover the traditional disadvantages – cotton in jam
Features:
1, Frequency, adjustable send cotton conveyor belt speed, cotton filling without blocking the cotton, the machine industry to fill the technology gap, guarantee the safety of the operating personnel, efficient production

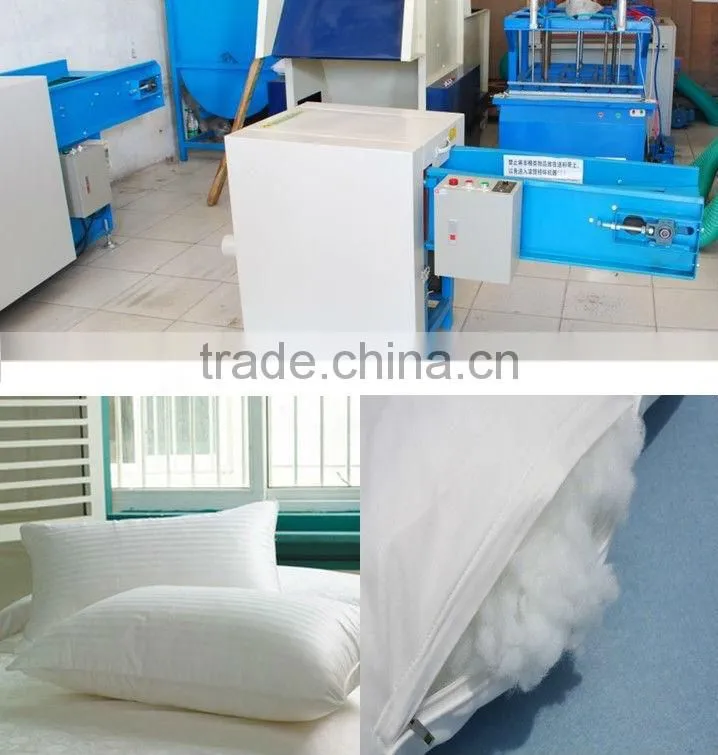

2, Specifically for the pillow, cushion, sofa, cushion, pillow and other need to be filled with cotton fiber products
3,Simple Operation ,1-2 workers needed. It need 1 worker to put the fiber on the conveyor, Another worker is needed to fill pillows.
4,The filler is Quantitative discharging,, the certain quantity is set , For example , you want to 0.5 kg of fiber to fill pillow , 0.5kg of will go to the pillow one time .Then stop, you can fill another pillow .
5, No matter with the length , our machine is suitable for difference length of fiber .
Advantages of Fiber opening Machine
1, the main equipment are:7 small cylinders +1large cylinder structure.
2, the carding machine with frequency conversion, adjustable, send cotton conveyor belt speed, cotton filling blocking cotton.
3, product effect is fluffy, soft, elastic, save the amount of cotton, save power.

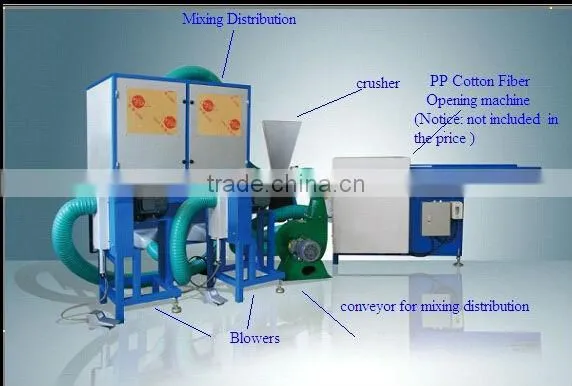

Fiber Opening Machine & Filler
Function:
1To use separately
2 To use as a combiner
Technical parameter of cotton fiber opening machine
Name |
Fiber opening machine |
Pillow Filler |
Dimension |
1900×350×950mm |
900×630×900mm |
Model |
MG-RQY-300A |
MG-RQY-1.5 |
|
Capacity |
60~80Kg/h |
90~100Kg/h |
Voltage |
380V/50Hz/ Three Phase or 220Voltage/50HZ/Single Phase |
|
Weight |
340kg |
120Kg
|
Motor |
3KW+0.25KW |
1.5KW +037kw |
Notes |
(Parts 7 Big rollers+1 bigger roller, Frequency conversion wich decides the lifetime of the machine )for fiber opening machine |
|
Notes |
Filler is equipped with Air compressor:0.4Mps Be equipped with air-compressor _(Centain Quanity Charges System ) |
|
