Help CenterAutomatic Polyester Fiber Tearing Opening Machine for Pillow Fiber Filling Machine
Related Products
-
Aotomatic Cotton Fabric Cotton Waste Carding Recycling Machine for PillowUS$ 2,800 - 4,900MOQ: 1 Set -
Hard Waster Fiber Opening and Pillow Filling Machine for Sale PriceUS$ 2,800 - 4,900MOQ: 1 Set
-
Automatic Polyester Fiber Carding Production Line /microfiber Pillow Making MachineUS$ 2,800 - 4,900MOQ: 1 Set
-
Automatic Polyester Fiber Opening and Carding Machine ManufacturerUS$ 2,800 - 4,900MOQ: 1 Set
-
Automatic Fiber Cotton Carding Machine for Filling Stuffed Torys and Pillow PriceUS$ 2,800 - 4,900MOQ: 1 Set
Automatic Pillows stuffing machine and polyester fiber opening carding machine
It is mainly used for making pearl shaped fiber from conjugated siliconized hollow fiber. This kind of special fiber can be used for garments, comforters, pillows, toys, and make products look more rich and fluffy. The size and tension of fiber ball can be adjusted according to customer’s requirement.
2. Features of cotton fiber opening machine and filling machine for pillow

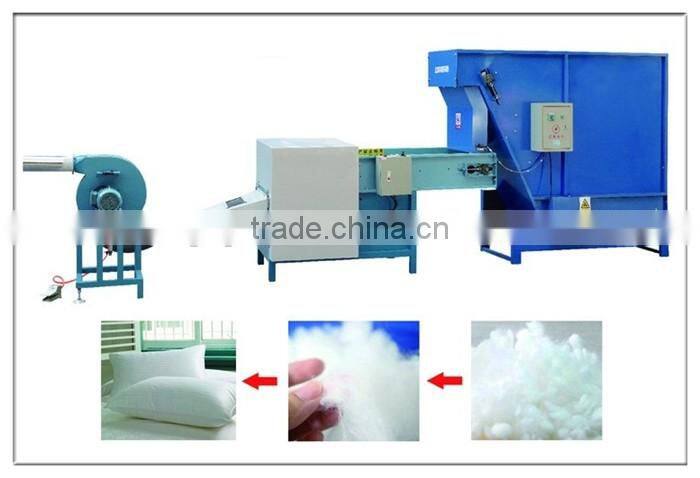

Step One: Cotton Fiber Opening machine to card fiber/ cotton into soft and smooth
Step Two: then via conveyor into mixing container
Step Three: fiber and cotton or other materials are mixed in mixing container; meantime the crusher crush sponge, and sponge also will going to the mixing container,
Step Four: then via blowers , to fill cushion /pillow or toy
3. Parameters of cotton fiber opening machine and filling machine for pillow
We have three models with different capacity.
MG-RQY-300A , MG-QRY-500A and MG-RQY-800A
Name |
Fiber opening machine |
Pillow Filler |
Model |
MG-RQY-300A |
MG-RTC-1.2 |
Dimension |
1900×350×950mm |
1050×7000×1050 |
Capacity |
90-100kg/h |
90-100Kg/h |
Voltage |
380V/50Hz/ Three Phase or 220Voltage/50HZ/Single Phase |
|
Weight |
340kg |
120Kg |
Motor |
3KW+0.25KW |
1.5KW +0.37kw |
Name |
Fiber Opener |
Filler Machine |
Model |
MG-RQY-500A |
MG-RTC-1.5 |
Dimension(mm) |
2600*550*1100mm |
1050×7000×1050 |
Capacity (kg/h) |
180-200kg/h |
180-200kg/h |
Motor(kw) |
4KW+ 0.75kw |
1.5kw |
Weight(KG) |
460KG |
120KG |
Name |
Fiber Opener |
Filler Machine(2sets ) |
Model |
MG-RQY-800A |
MG-RTC-1.5 |
Dimension(mm) |
2600*800*1200mm |
1050×7000×1050 |
Capacity (kg/h) |
280-300kg/h |
180-200kg/h |
Motor(kw) |
5.5kw+0.75kw |
1.5kw |
Weight(KG) |
760kg |
120KG |

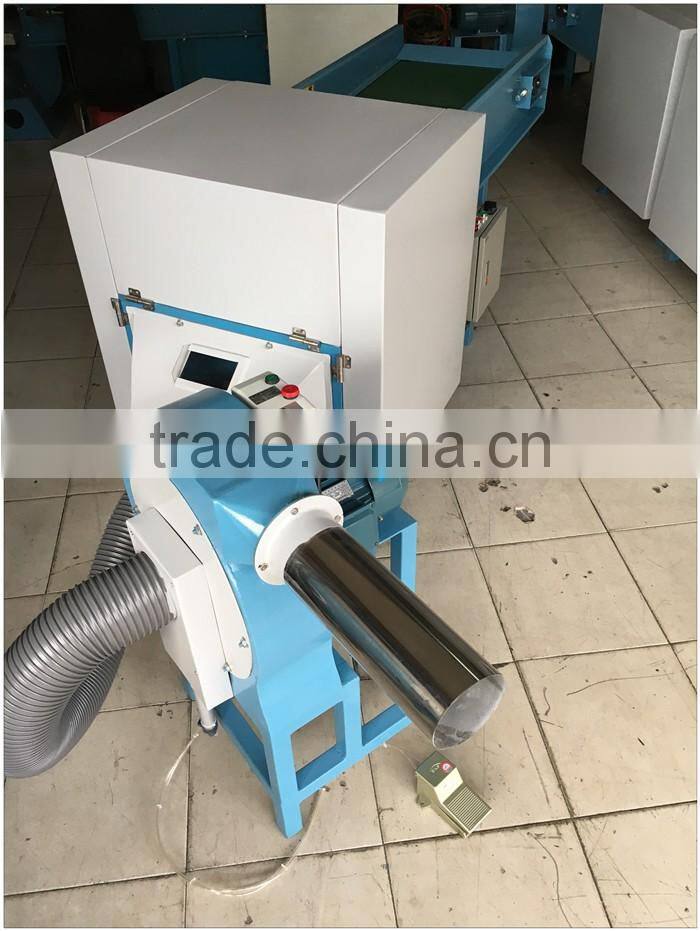

4. More pictures of RQY series Fiber opening machine

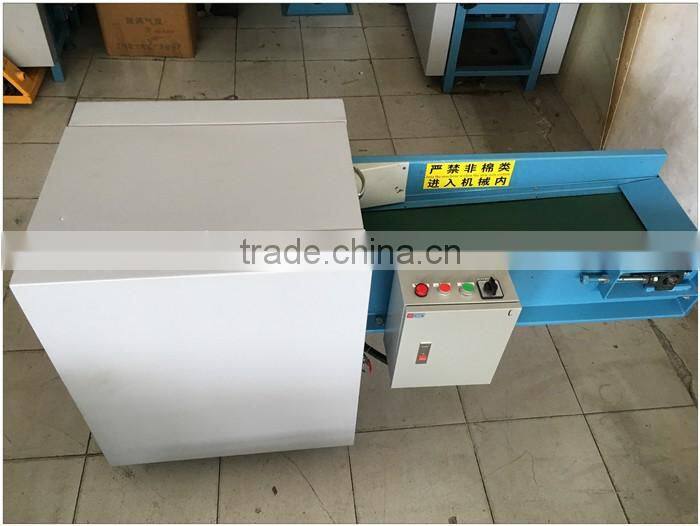

MG-RQY-300A

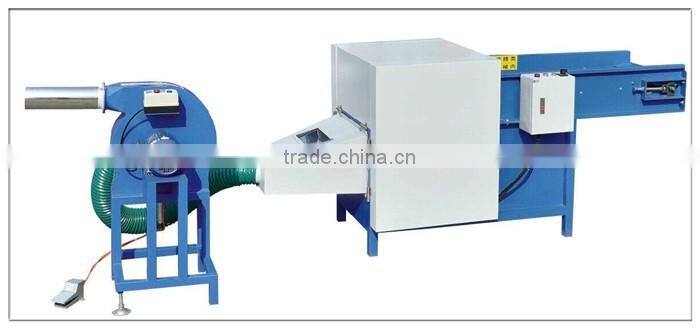

MG-RQY-500A

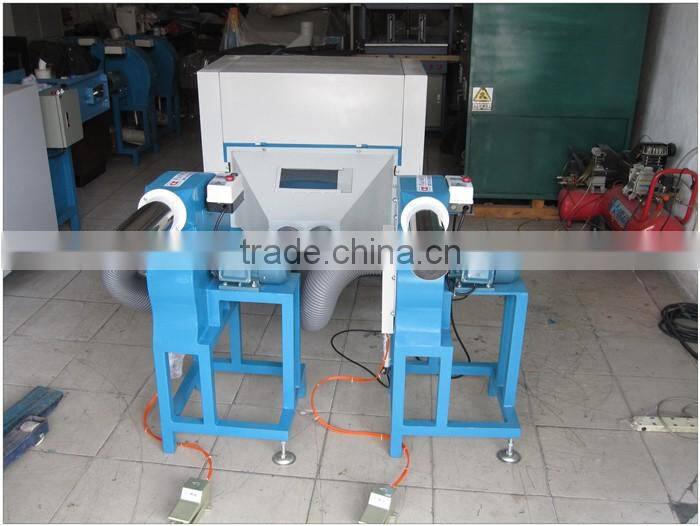

MG-RQY-800A

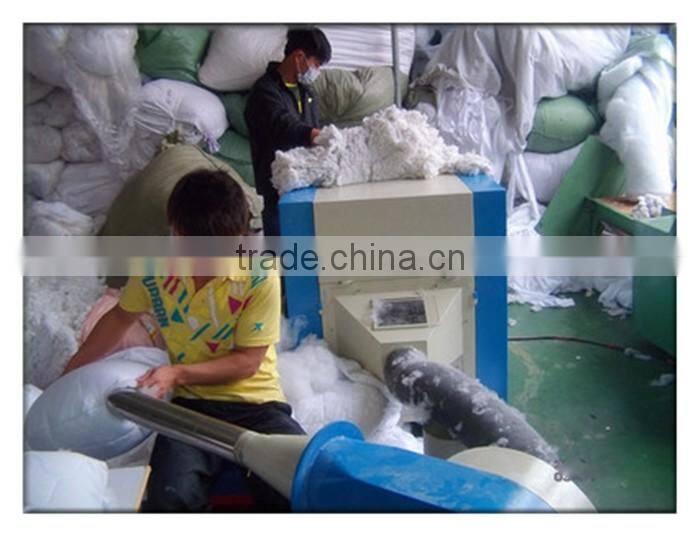

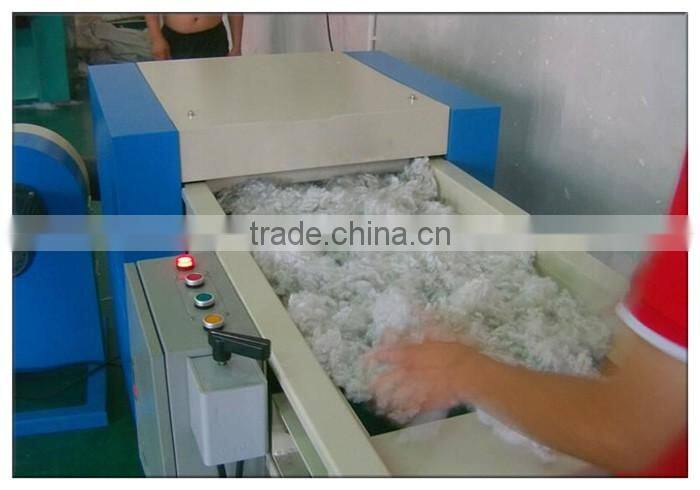

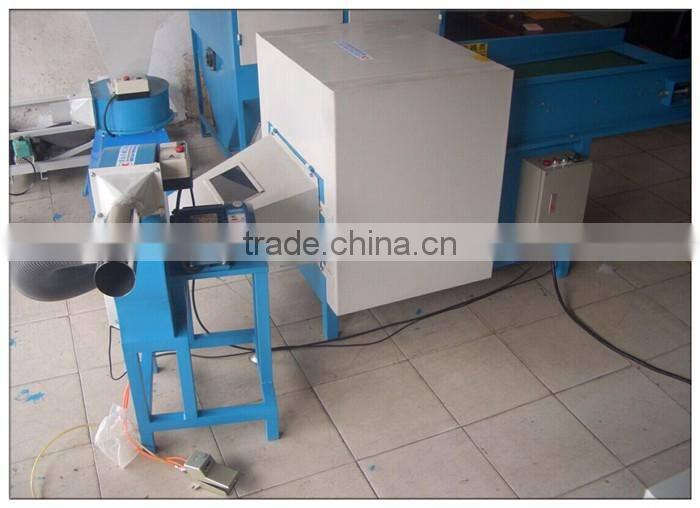

5. Fiber opening machine in working

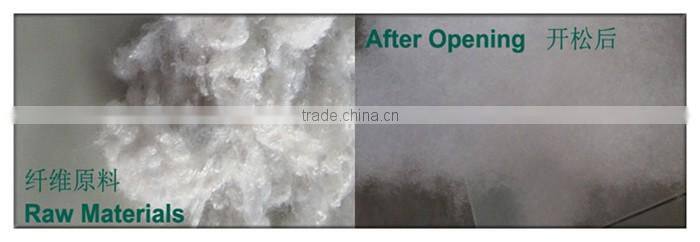

6. Final product of fiber opening machine

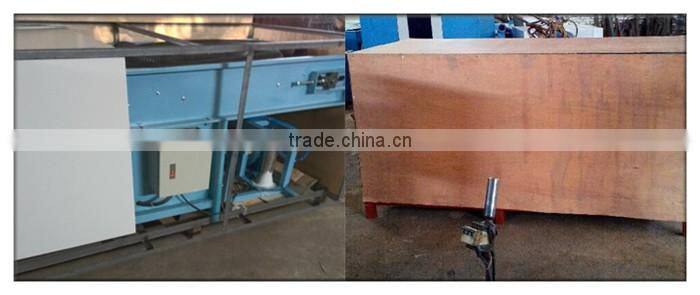

Packaging: Wooden Crate or Pallet or bare package in standard containers for export;
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
1. Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Also you can check our Alibaba Site, there are several importers' transation History.
6. Q: What's the payment you accept ?
A: As usual our payment is 50%T/T as deposit, and the 50% balance against the copy of B/L. Also we accept the payment such as L/C ,Escrow Or PayPal .
Any requirements, contact us freely!
