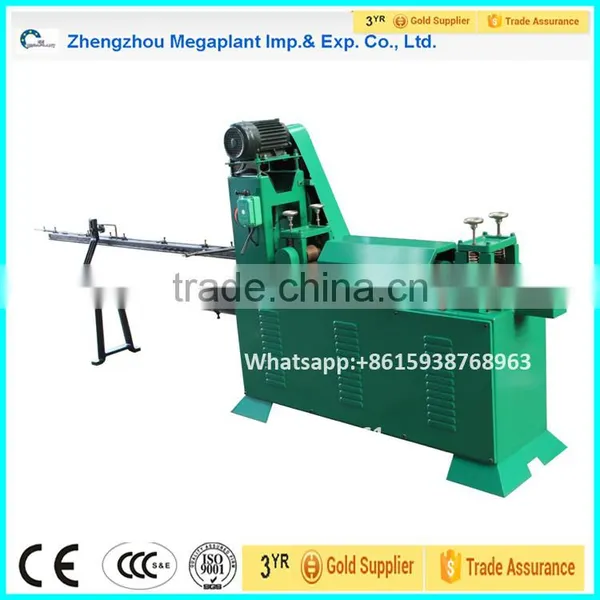

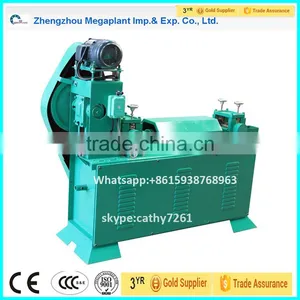

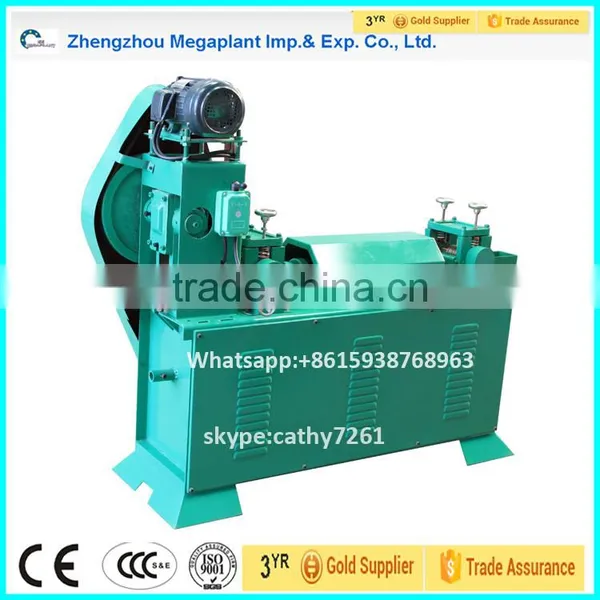

5-9mm Steel Iron wire straightening and cutting machine
Introduction and Features of 5-9mm Steel Iron wire straightening and cutting machine
1.It's suitable for wire, stainless steel wire, galvanized wire, aluminum, water (powder) draw lines and other metal wire straightening and cutting.
2.To straighten party lines, flat lines, contour lines, please contact the company ordered.
3.Sending wire wheel, such as the use of high-quality steel cutter and vacuum heat treatment, wear resistance, longer life. Straightening block can be cast iron, alloys, plastics Wang, all shaft parts are all 40CR or 45 # steel, and after straightening process, the gear is used in all forging billet, straight and tooth surface by high frequency hardening, hardness up HRC55-58 degrees.
4.Straight shaft with high pressure wheel straight before cutting the wire straightening, wire feeding pressing the pinch roller lever to adjust wire feed, the wire can even feed, direct modulation axis is the key product formed by direct modulation straightening blocks and tone straight shaft fixed to adjust the horizontal and vertical products to conform to requirements. Adjusting the pressing handle, the wire and the wire is more horizontal and vertical production rate increase or decrease. Finally, adjust white blades gun on the length of the product to meet the requirements.
Technical Parameter of 5-9mm Steel Iron wire straightening and cutting machine
Model |
MG-WC100 |
MG-WC300 |
MG-WC500 |
Voltage |
380v,50hz,3phase |
380v,50hz,3phase |
380v,50hz,3phase |
Power |
0.75 | 1.5 |
3 |
Dia ofStraight line path/mm |
1-2.5 |
2.5-5.5 |
5-9 |
Maximum length/mm |
1500 |
2000 |
3000 |
Straightening speed/mm |
1860 |
1860 |
1860 |
Weight/kg |
200 |
250 |
300 |
Dimensions/mm |
1450*600*900 |
1450*600*1300 |
1600*700*1400 |
Main parts:
1.5-9mm wire straightening machine without cutting gun
2.Raw wire frame:
3.Pulley adjustment handle, ready to tighten the belt, effectively preventing the belt after a long time with work loose.
About sending wire wheel adjustment handle, before and after the two groups, with the handle to adjust the lateral position of the wire to the wire spool living adjustment and the positioning hole cutting gun hole in the center position.
4.Sending wire wheel pressure regulating handle, a total of around two, use this handle to adjust wire feed speed.

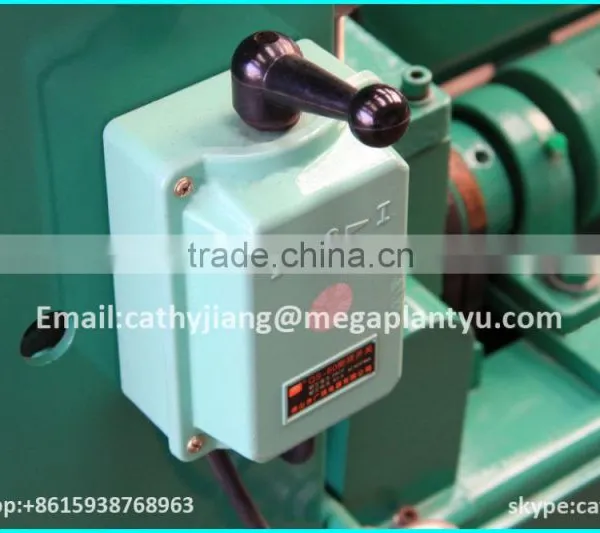

5.Fast inverted switch, allowing the operator reliable and convenient.
6.Wire hole filling box, which fill cotton, plus lubricating oil, allowing straightening process more smooth, reduce breakage.
7.Six groups of straight blocks kinds of materials can be easily transferred straight wire, easy to use, easy to operate.
Maintenance:
First, the machine used for the 3-phase 380-volt power supply, do not want to phase, such as phase, then definitely burn out the motor.
Second, the transfer of parts of the machine periodically lubricated.
Third, when installing reliable grounding.
Fourth, the work machine cover must not be opened, otherwise accidents can easily occur in the event of disconnection, this operating essentials please remember! ! !
Fifth, the tip portion of the wall please, in order to avoid stab workshop run line when other staff.
Sixth, when a roll of wire will transfer finished, please stopped three times during the rest of the machine, otherwise the remaining thread parts may produce drift phenomenon, it is easy to hurt workers in the operation. If you think the wire waves get serious, experienced workers can use pliers sandwiched thread push, but we do not encourage this mode of operation.
Packaging: Wooden Crate or Pallet or bare package in standard containers for export;
Package sample:
Shipping: All machines will be sent by sea, if you need other kind of transportation, please inform us in advance. And all machines would be shipped in 7 days after the receipt of payment. Before and after shipping, we will take photos of machines and send photos to client.
1. Q: Can the logo or company name to be printed on the products or package?
A: Sure. Customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
2. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q: What is your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Also you can check our Alibaba Site, there are several importers' transation History.
6. Q: What's the payment you accept ?
A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L. Also we accept the payment such as L/C ,Escrow Or PayPal .
