Specifications
silica sand rotary dryer1.moisture of raw materail can be reduced to below 5%
al, oil, gas can be used

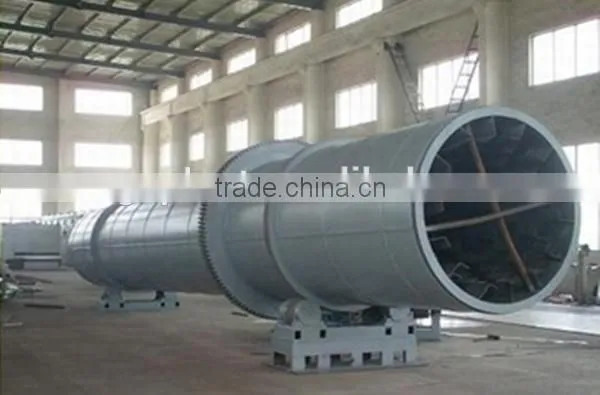

China Silica Sand Rotary Dryer/Silica Rotary Dryer
Usage of rotary dryer
1, with the heat air recycle inside to remove moisture of material less than 15% .
2, Use to dry manure, sawdust
3, working method : a heated gas.
Working principle of the rotary dryer:
1, by conveyor raw materials is convery into dryer
2, a heated gas of fire furnace into dryer
3, rotating tube then out of tube through by sawdust collector
Content of dryer
1, fire furnace
2, tube
3, conveyor
4, sawdust collector
Specification:
Type |
Transfers Barrel dryer (mm)
|
Transfers barrel length (m)
|
Output (Ton/h) |
Gradient (°)
|
Rotational Speed/minute (r/min) |
Power (kw)
|
Volume/cube (m3)
|
0.6×8 |
600 |
8 |
2 |
3-5 |
8 |
4 |
2026 |
0.8×10 |
800 |
10 |
4 |
3-5 |
7.2 |
4 |
5.02 |
1.0×12 |
1000 |
12 |
6 |
3-5 |
6.73 |
5.5 |
7.85 |
1.5×12 |
1500 |
12 |
10 |
3-5 |
5.8 |
11-7.5 |
13.31 |
1.5×18 |
1500 |
18 |
15 |
3-5 |
4.8 |
15-22 |
21.2 |
1.8×18 |
1800 |
18 |
20 |
3-5 |
3.2 |
18.5-30 |
48.22 |
2.2×22 |
2200 |
22 |
25 |
3-5 |
3 |
22-30 |
70.43 |
2.8×24 |
2800 |
24
|
30
|
3-5 |
2.59 |
30-55 |
147.8 |
